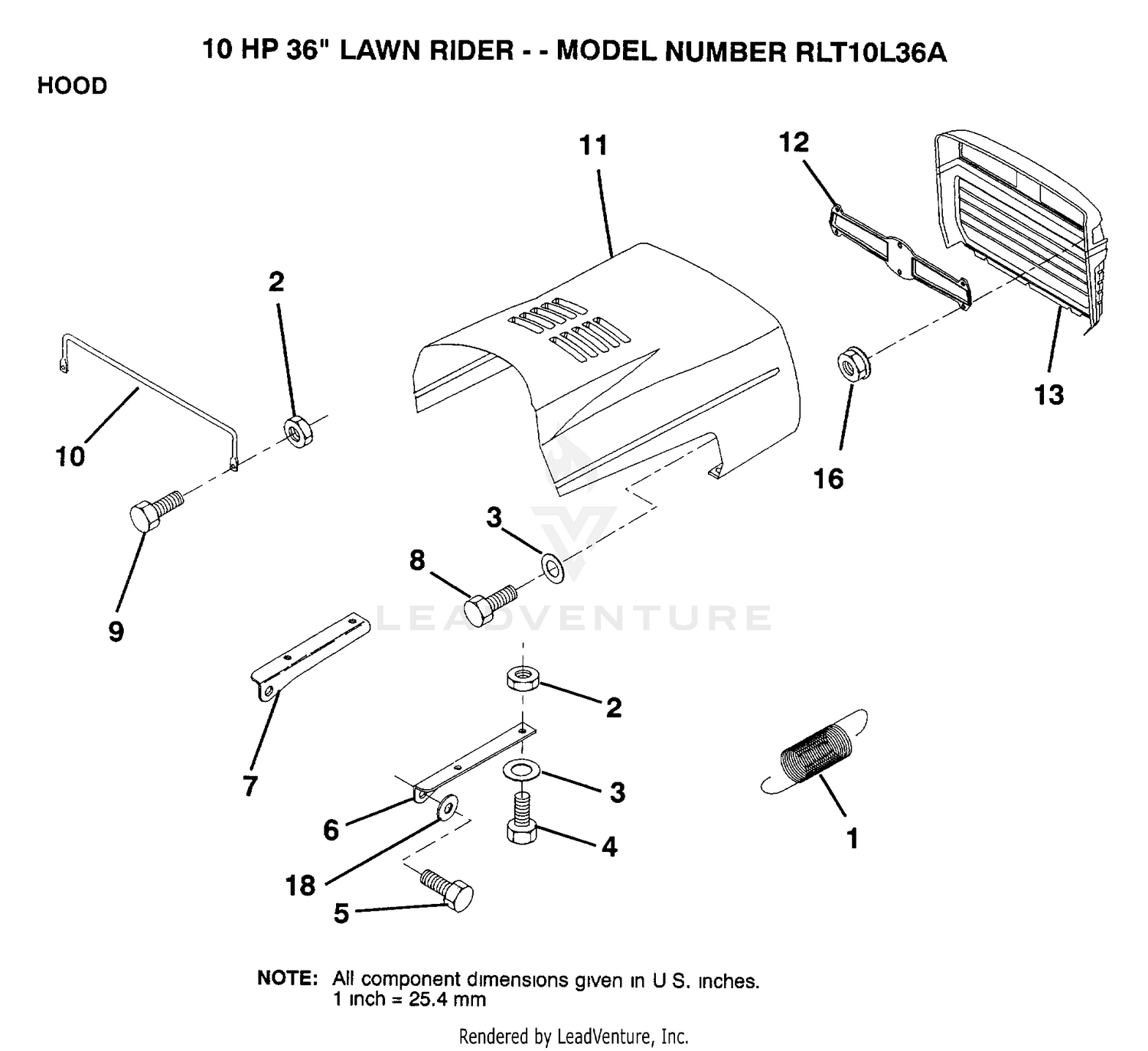

| Ref | Part Number | Description |
|---|
| 1 |
124657X |
EXT SPRING Price: Call Us |
| 1 |
99-8440 |
DISCONTINUED Price: Call Us |
| 2 |
73510400 |
NUT Price: Call Us |
| 2 |
95-3300-03 |
BRACKET-ENGINE, RIGHT FRONT Price: $103.58 |
| 3 |
19091016 |
WASHER Price: Call Us |
| 3 |
33114-020 |
SCREW-HH This part replaces 66-3160. Price: $0.28 |
| 4 |
33094-00 |
WASHER-PLAIN This part replaces 48-8030. Price: $0.25 |
| 4 |
74780410 |
BOLT Price: Call Us |
| 5 |
126675X |
SUB= 139888 Price: Call Us |
| 5 |
94-7416-03 |
BRACKET-MOUNT, ENGINE Price: $52.03 |
| 6 |
122549X |
BRKT HOOD RH Price: Call Us |
| 6 |
94-7430 |
SHAFT-STUB Price: $347.64 |
| 7 |
122548X |
BRKT HOOD LH Price: Call Us |
| 7 |
18-6430 |
KEY-SQUARE Price: $3.56 |
| 8 |
17411310 |
SUB= 17521312 Price: Call Us |
| 8 |
323-34 |
SCREW-HH Price: $0.54 |
| 9 |
110-9697 |
ELECTRIC CLUTCH KIT This part replaces 100-6565. Price: $1,166.55 |
| 9 |
74780412 |
SUB= 74780414 Price: Call Us |
| 10 |
3212-5 |
SCREW-HH Price: $2.46 |
| 11 |
105-3698 |
SPACER Price: $65.71 |
| 11 |
132918X419 |
HOOD Price: Call Us |
| 12 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 12 |
127178 |
LENS T Price: Call Us |
| 13 |
134232X507 |
GRILL Price: Call Us |
| 13 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 14 |
32153-4 |
NUT-HEX, SIDE DEFORM Price: $0.75 |
| 15 |
94-7438 |
LEVER-CLUTCH ANCHOR Price: $41.49 |
| 16 |
124346X |
NUT Price: Call Us |
| 16 |
95-6328 |
BUMPER-ELECTRIC CLUTCH Price: $39.08 |
| 17 |
321-8 |
SCREW-HH Price: $0.34 |
| 20 |
66-2870 |
CABLE-HOOD STOP Price: $27.51 |
| 22 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 23 |
94-7433-03 |
BRACKET-MUFFLER Price: $19.64 |
| 24 |
32128-20 |
NUT-HF Price: $0.99 |
| 25 |
5-0652 |
SPACER Price: $5.35 |
| 26 |
43-0090 |
SCREW-HH Price: $8.05 |
| 27 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 28 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 29 |
94-7434-03 |
MOUNT BRACKET ASM Price: $131.75 |
| 30 |
32151-83 |
RING-SNAP Price: $0.34 |
| 31 |
3-6624 |
DISCONTINUED Price: Call Us |
| 32 |
110-9696 |
BOLT-HH This part replaces 94-7431. Price: $18.93 |
| 33 |
63-6290 |
PIN-PTO TENSION Price: $24.06 |
| 34 |
94-6412 |
MUFFLER-EXHAUST Price: $543.27 |
| 35 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 36 |
95-3097-03 |
BRACKET-ENGINE, LEFT FRONT Price: $100.32 |
| 37 |
94-7621 |
SENDER-TEMPERATURE Price: $79.99 |
| 38 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 40 |
63-6250-03 |
DISCONTINUED Price: Call Us |
| 41 |
94-7344 |
PIVOT PLATE ASM Price: $354.30 |
| 42 |
3-4324 |
WASHER-FLAT Price: $1.22 |
| 43 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 44 |
3256-60 |
WASHER-FLAT Price: $1.49 |
| 45 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 46 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 47 |
33114-020 |
SCREW-HH Price: $0.28 |
