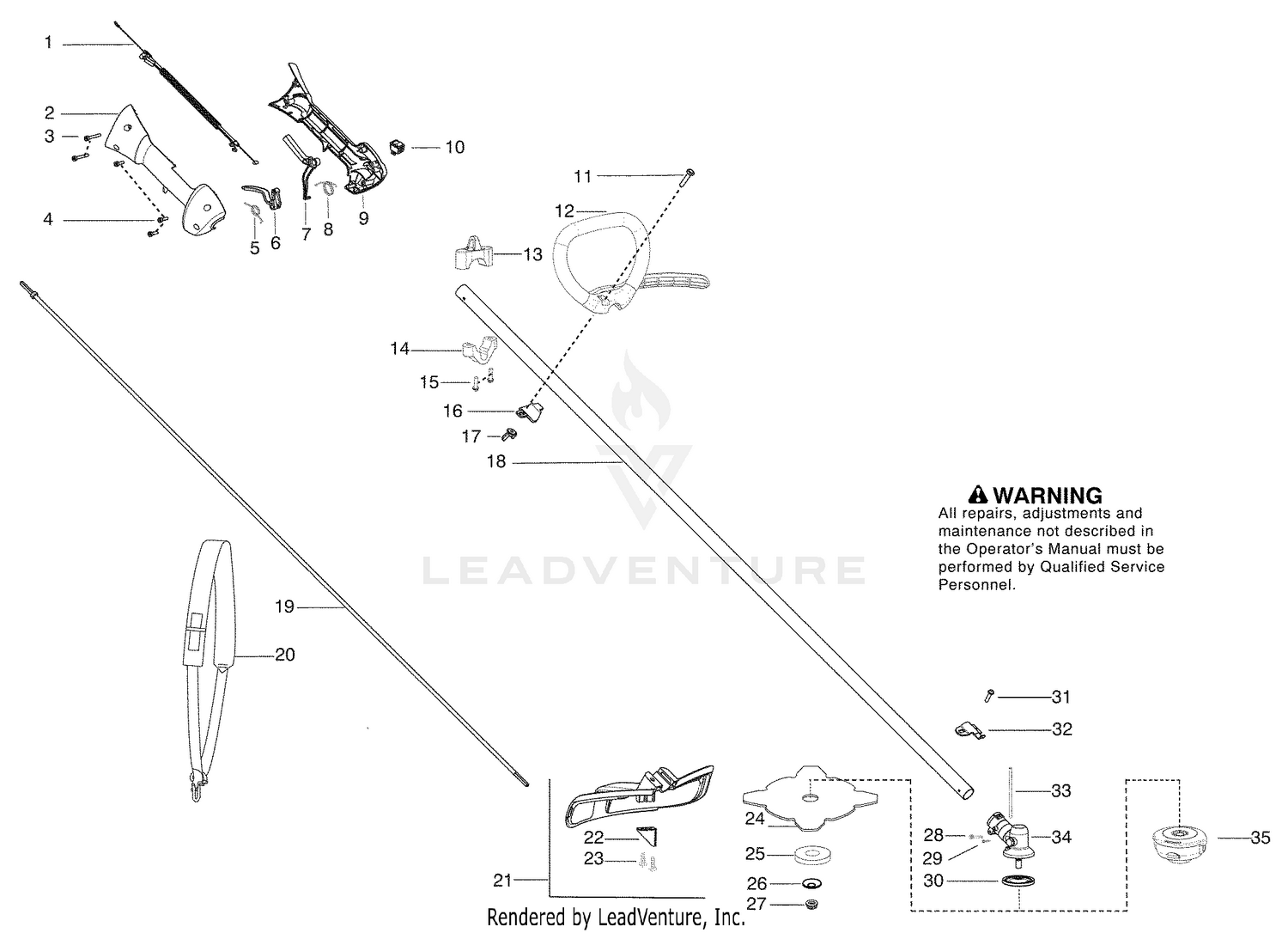

| Ref | Part Number | Description |
|---|
| 1 |
545125301 |
ASSY-CABLE WIRE HARNESS Price: $19.99 |
| 2 |
545062001 |
HOUSING-THROTTLE RH Price: $8.99 |
| 3 |
530016448 |
SCREW Price: $2.99 |
| 4 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 5 |
530016454 |
SPRING TRIGGER Price: $4.99 |
| 6 |
545066001 |
TRIGGER THROTTLE Price: $5.99 |
| 7 |
530059804 |
THROTTLE LOCKOUT Price: $4.99 |
| 8 |
545045601 |
SPRING LOCKOUT Price: $4.99 |
| 9 |
545067001 |
HSG THROTTLE LH Price: $9.99 |
| 10 |
545049301 |
KIT SWITCH This part replaces 545030601. Price: $8.99 |
| 11 |
530015820 |
BOLT, TYPE 2 Price: $3.99 |
| 12 |
545139701 |
ASSY HANDLE JBAR Price: $22.99 |
| 15 |
530015940 |
SCREW Price: $2.99 |
| 16 |
530059185 |
CLAMP ASSIST HANDLE Price: $2.99 |
| 17 |
530091373 |
NUT-"D" HANDLE This part replaces 530016152. Price: $3.99 |
| 19 |
545007507 |
FLEXSHAFT 57" Price: $24.99 |
| 20 |
537216202 |
Harness - Diagonal with sign This part replaces 537216201. Price: $8.99 |
| 22 |
530052286 |
Limiter - Line Price: $0.68 |
| 23 |
530015814 |
SCREW Price: $0.17 |
| 24 |
596278001 |
HUS 10" GRASSBLADE 255-4T 1" This part replaces 504001303. Price: $22.99 |
| 25 |
503890101 |
SUPPORTING CUP Price: $14.99 |
| 26 |
537285601 |
SUPPORT FLANGE Price: $9.99 |
| 27 |
503856301 |
GEARHEAD NUT - BRUSHCUTTER Price: $5.99 |
| 28 |
530016014 |
SCREW - CARB. ADAPTOR Price: $2.99 |
| 29 |
545003902 |
SCREW Price: $2.99 |
| 30 |
537234901 |
DRIVE DISC Price: $19.99 |
| 31 |
530015771 |
SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 32 |
530057554 |
BRACKET SHIELD STRAIGHT SHAFT Price: $4.99 |
| 33 |
502285901 |
LOCKING PIN Price: $4.99 |
| 34 |
530096295 |
ASSY GEARBOX Price: $34.99 |
| 35 |
537338310 |
TRIMMER HEAD T25 This part replaces 537338306. Price: $27.99 |
