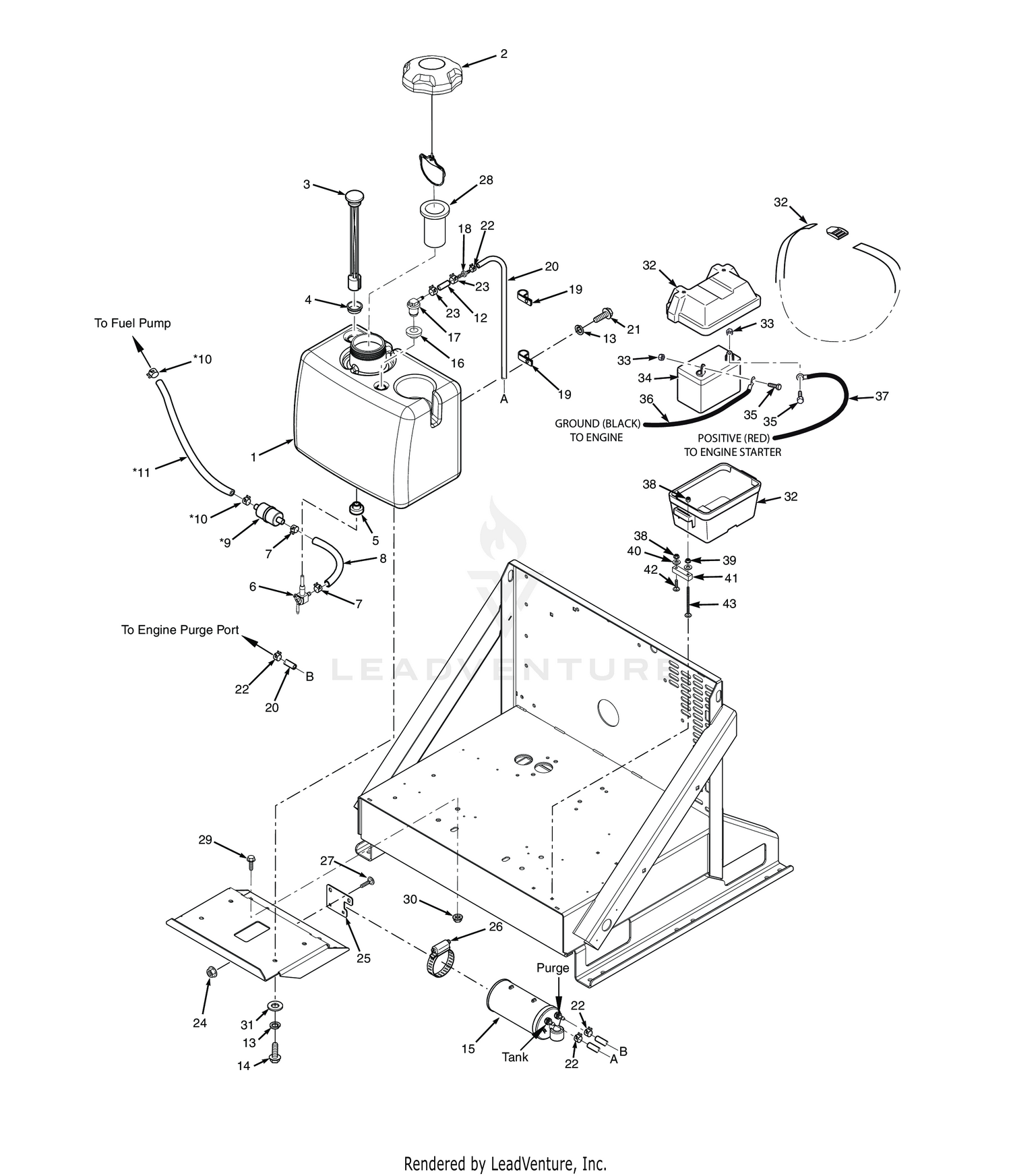

| Ref | Part Number | Description |
|---|
| 1 |
463029 |
Fuel Tank Assembly (incl. #2, 3, 5, 6, 17, 18) This part replaces 462611. Price: Call Us |
| 2 |
484286 |
Fuel Cap w/ Tether (E.P.A.) Price: Call Us |
| 3 |
484259 |
Fuel Gauge Assembly Price: Call Us |
| 4 |
484242 |
Grommet, Fuel Gauge Price: Call Us |
| 5 |
482571 |
Bushing, 0.56" Dia. Viton Price: Call Us |
| 6 |
483747 |
Valve, Fuel Shut Off w/Screen Price: Call Us |
| 7 |
48059-01 |
Clamp, Fuel Hose 1/4" Hose I.D. Price: Call Us |
| 8 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) Price: Call Us |
| 12 |
484347 |
Hose, 1/4" Vapor Recovery (order by inch) Price: Call Us |
| 13 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 14 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 15 |
484287 |
Carbon Canister - SVR-36A / SVR-48V Price: Call Us |
| 16 |
484285 |
Grommet, Viton, Price: Call Us |
| 17 |
484333 |
Remote Vent, No Valve Price: Call Us |
| 18 |
484343-01 |
Mender, 1/4 x 3/16 w/0.02 Hole Price: Call Us |
| 19 |
48030-22 |
Clamp, Cable - .375 Dia. Price: Call Us |
| 20 |
484345 |
Hose, Vapor Recovery 3/16" Price: Call Us |
| 21 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 22 |
48059-05 |
Clamp, Vapor Recovery Hose 3/16" Price: Call Us |
| 23 |
48059-02 |
CLAMP, FUEL HOSE(KAWASAKI ONLY) Price: Call Us |
| 24 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 25 |
426326 |
Bracket, Cannister Mount Price: Call Us |
| 26 |
48136-17 |
Clamp, 3-1/2" Max. Dia. Price: Call Us |
| 27 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
| 28 |
484279-01 |
Tube, Fuel Tank Insert - 4" Price: Call Us |
| 29 |
04001-70 |
Bolt, Hex Head 1/2-13 x 1-1/4" Price: Call Us |
| 30 |
04019-06 |
Nut, Hex Serrated Flange 1/2-13 Price: Call Us |
| 31 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 32 |
484990 |
Battery Box w/Strap Price: Call Us |
| 33 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 35 |
04001-06 |
BOLT, HEX HEAD, 1/4-20 X 5/8 Price: Call Us |
| 36 |
48029-11 |
Battery Cable, 27" Black (35BV & 37BV-EFI) - Briggs & Stratton Price: Call Us |
| 37 |
48029-27 |
Battery Cable, Red 32" w/Conduit Price: Call Us |
| 38 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 39 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 40 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 41 |
485053 |
Spacer, Battery Bob (x6) Price: Call Us |
| 42 |
04003-09 |
Bolt, Carriage, 1/4-20 x 1-1/4" Price: Call Us |
