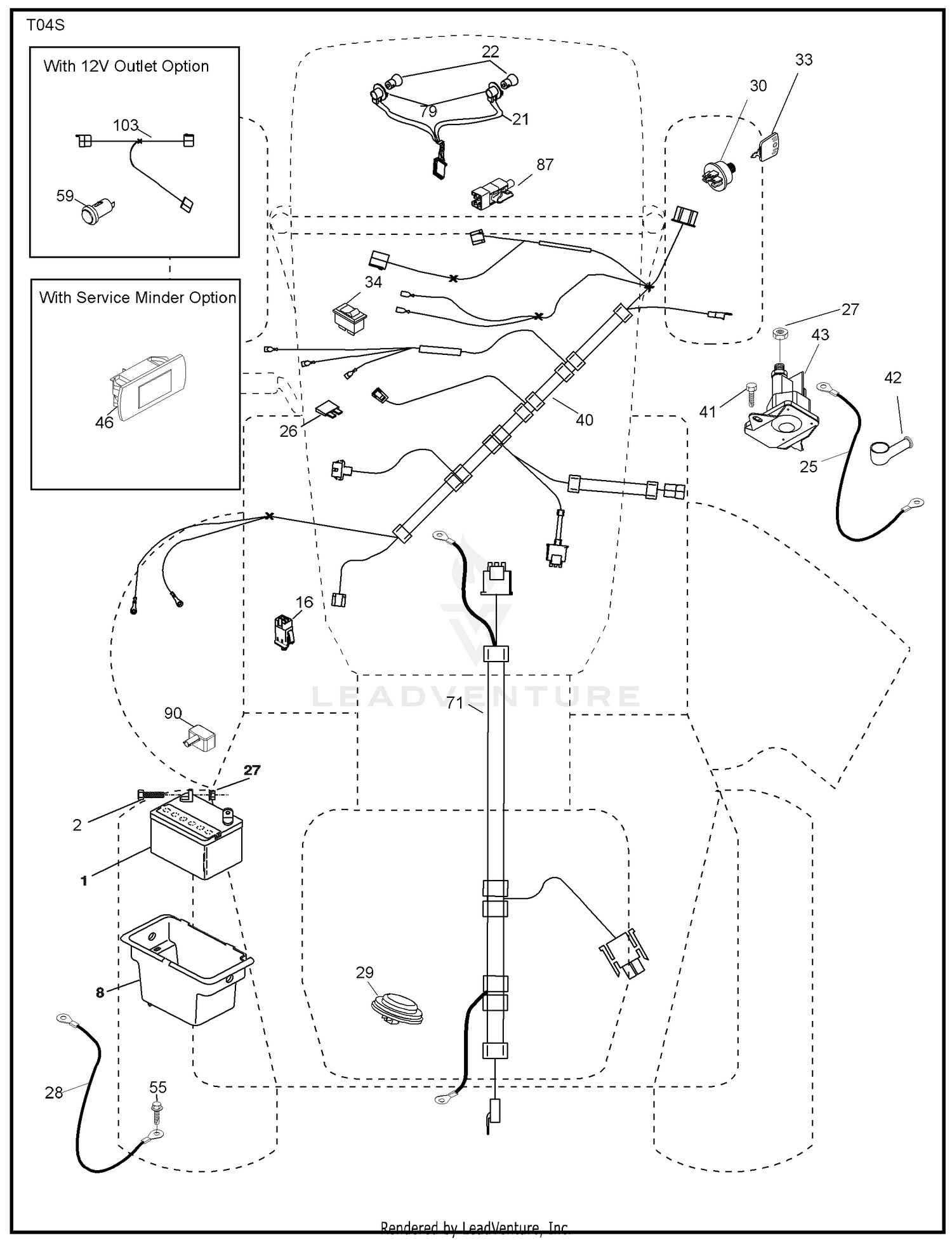

| Ref | Part Number | Description |
|---|
| 1 |
3220-3 |
NUT-HJ Price: $0.28 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 6 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 7 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $24.99 |
| 8 |
75-3270-03 |
HUB-PIVOT, TRACTION This part replaces 75-3270. Price: $144.73 |
| 9 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 10 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 11 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 12 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 13 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 14 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 16 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 18 |
75-6710 |
DECAL - FAST/SLOW Price: $5.87 |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 20 |
75-6490 |
LEVER ASM Price: $78.45 |
| 21 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 24 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532198885 |
CABLE.BLACK.18"REAR.BA Price: $17.99 |
| 28 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 29 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 30 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 32 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 33 |
75-1440-03 |
PEDAL-BRAKE, LH This part replaces 75-1440. Price: $207.74 |
| 34 |
256-42 |
BUSHING Price: $7.03 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 36 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 37 |
75-2170-03 |
TUBE-CONTROL, PUMP This part replaces 75-2170. Price: $103.73 |
| 38 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 39 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 40 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 40 |
532400449 |
HARNESS.IGN.CHASS.TEX.REAR.BAT Price: $32.99 |
| 41 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532401098 |
HARNESS IGN. DASH Price: $69.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $14.99 |
