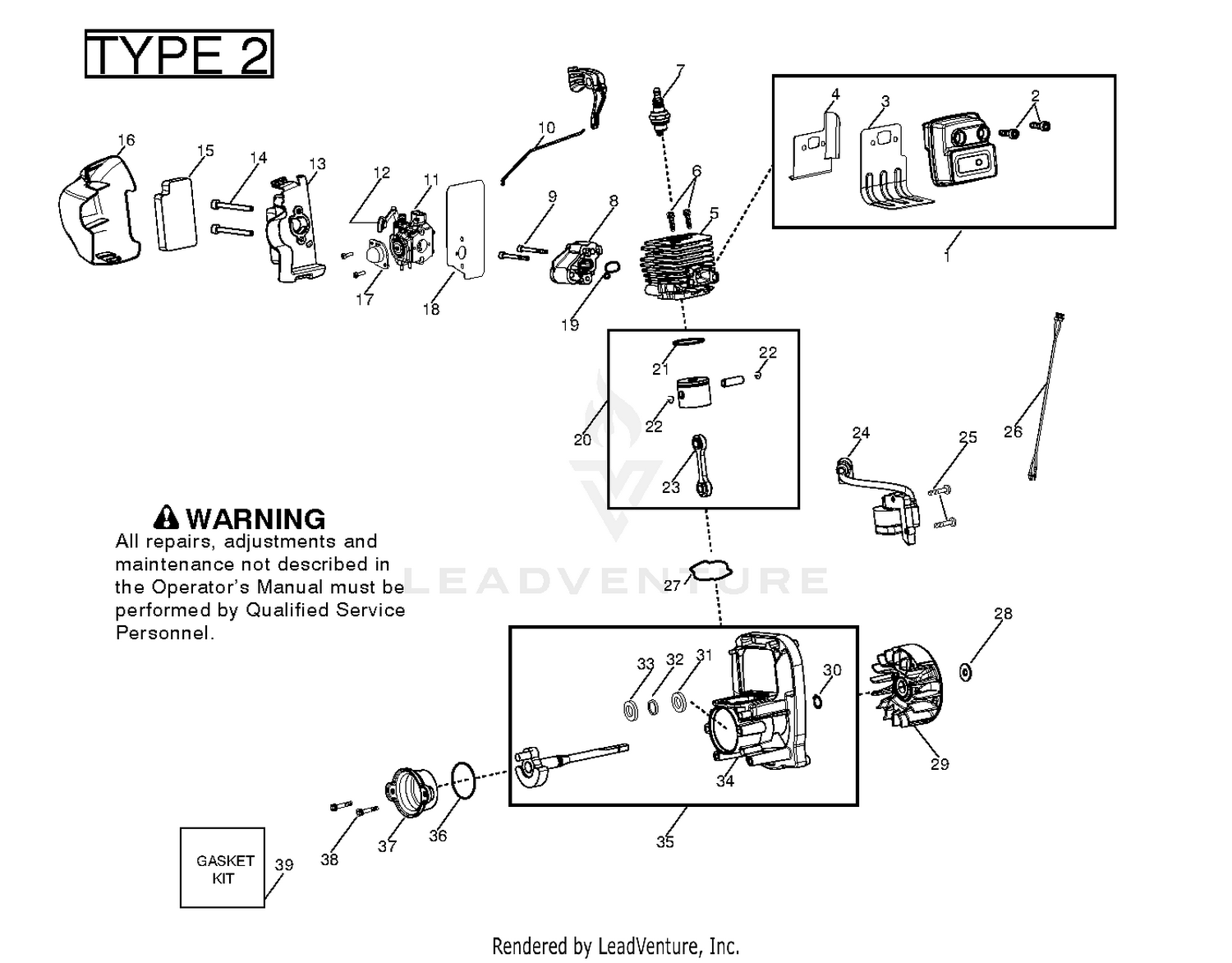

| Ref | Part Number | Description |
|---|
| 1 |
323-5 |
SCREW-HH Price: $0.41 |
| 1 |
525592801 |
ASSY MUFFLER WELDED Price: $22.99 |
| 2 |
41-8940 |
Rubber Side Shield Price: Call Us |
| 2 |
530058982 |
BOLT MUFFLER Price: $1.99 |
| 3 |
3217-7 |
NUT-HEX Price: $0.28 |
| 3 |
545081832 |
KIT GASKET 25CC Price: $11.99 |
| 4 |
41-8970 |
DISCONTINUED Price: Call Us |
| 4 |
545098801 |
SHIELD MUFFLER HEAT Price: $5.99 |
| 5 |
41-9020 |
DISCONTINUED Price: Call Us |
| 5 |
545115301 |
CYLINDER CHROME 25CC Price: $27.99 |
| 6 |
41-8980 |
DISCONTINUED Price: Call Us |
| 6 |
530015953 |
SCREW Price: $1.99 |
| 7 |
41-9030 |
DISCONTINUED Price: Call Us |
| 7 |
952030249 |
PLUG-SPARK (RCJ-6Y) Price: $3.99 |
| 8 |
3214040 |
Screw Self Tapping Price: Call Us |
| 8 |
545084901 |
ADAPTER CARBURETOR Price: $9.99 |
| 9 |
41-9050 |
DISCONTINUED Price: Call Us |
| 9 |
530016441 |
SCREW Price: $1.99 |
| 10 |
3290-55 |
RIVET-POP Price: $0.25 |
| 10 |
545115501 |
LINKAGE THROTTLE Price: $2.99 |
| 11 |
41-9060 |
DISCONTINUED Price: Call Us |
| 11 |
545081855 |
KIT CARBURETOR WT-875A Price: $27.99 |
| 12 |
32104-91 |
DISCONTINUED Price: Call Us |
| 13 |
3253-29 |
WASHER-LOCK/SP Price: $0.22 |
| 13 |
545112603 |
BASE AIRBOX RED Price: $7.99 |
| 14 |
41-8920 |
DISCONTINUED Price: Call Us |
| 14 |
530016429 |
SCREW Price: $1.99 |
| 15 |
41-8950 |
DISCONTINUED Price: Call Us |
| 15 |
545116801 |
AIR FILTER FOAM Price: $2.99 |
| 16 |
41-8960 |
DISCONTINUED Price: Call Us |
| 16 |
545112702 |
COVER AIRBOX BLACK Price: $5.99 |
| 17 |
5-1254 |
WASHER Price: $5.09 |
| 17 |
530035497 |
PURGE BULB 188-16 Price: $4.99 |
| 18 |
41-9010 |
DISCONTINUED Price: Call Us |
| 18 |
545081832 |
KIT GASKET 25CC Price: $11.99 |
| 19 |
41-9040 |
DISCONTINUED Price: Call Us |
| 19 |
545081832 |
KIT GASKET 25CC Price: $11.99 |
| 21 |
545154009 |
PISTON RING This part replaces 530012472. Price: $1.99 |
| 22 |
530015162 |
WRIST PIN RET. Price: $1.99 |
| 23 |
545156002 |
KIT PISTON CONN ROD FORGED This part replaces 545081865. Price: $14.99 |
| 24 |
545081826 |
Kit - Ignition Module This part replaces 545158001. Price: $32.99 |
| 25 |
530016357 |
SCREW Price: $1.99 |
| 26 |
545127601 |
HARNESS WIRE Price: $5.99 |
| 27 |
545081832 |
KIT GASKET 25CC Price: $11.99 |
| 28 |
530015828 |
WASHER FLAT Price: $1.99 |
| 29 |
545221701 |
FLYWHEEL ASSY This part replaces 545197301. Price: $8.99 |
| 30 |
530015941 |
RETAINING RING Price: $1.99 |
| 31 |
530055728 |
OUTER BEARING Price: $6.99 |
| 32 |
530019264 |
SEAL Price: $2.99 |
| 33 |
530032125 |
BEARING Price: $11.99 |
| 36 |
545081832 |
KIT GASKET 25CC Price: $11.99 |
| 37 |
530057954 |
ASSY REAR PLUG Price: $3.99 |
| 38 |
530016386 |
SCREW Price: $5.99 |
