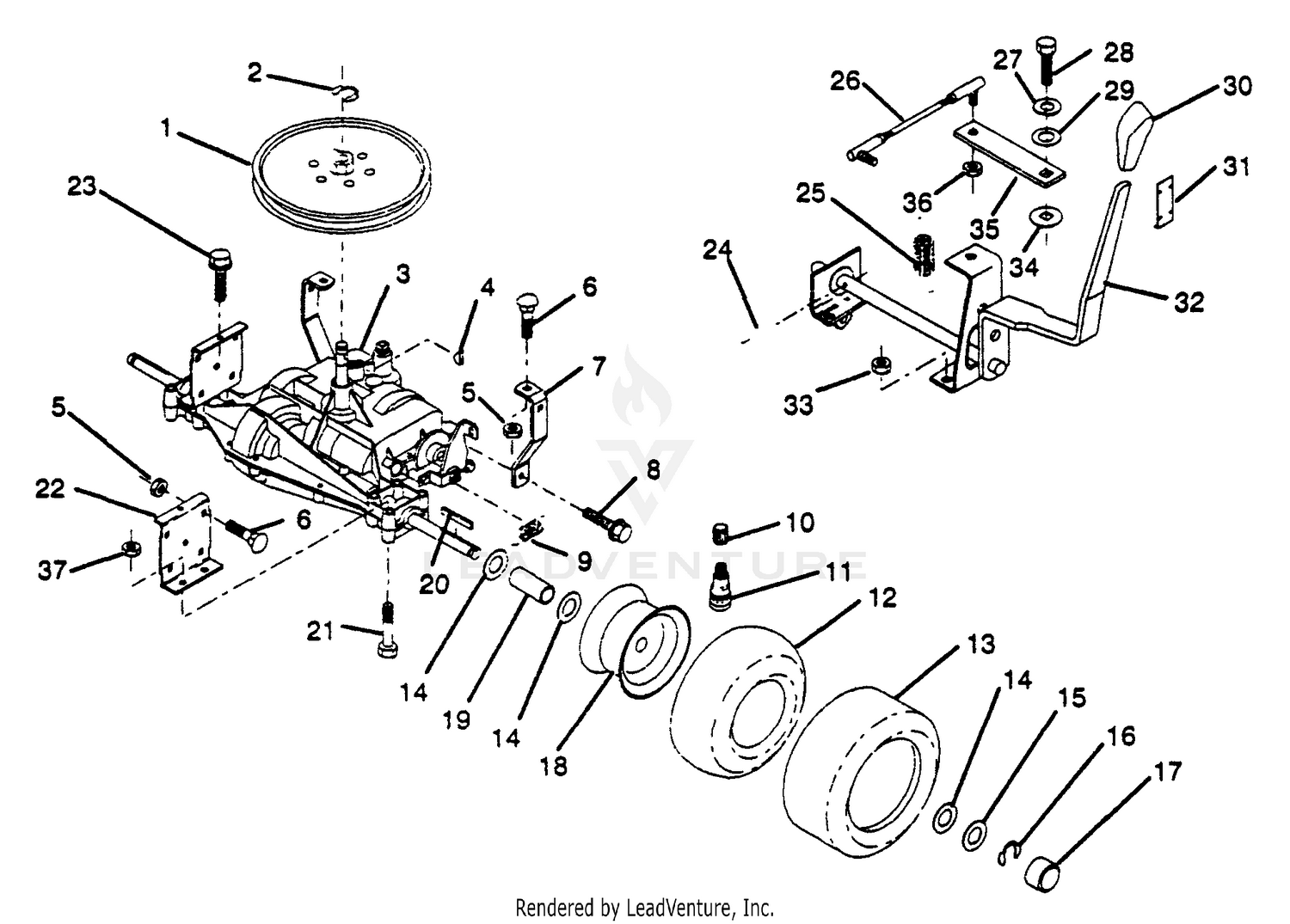

| Ref | Part Number | Description |
|---|
| 1 |
532123385 |
PULLEY Price: $39.99 |
| 1 |
80-4860 |
PIN-CLEVIS Price: $6.13 |
| 2 |
75-3580 |
PLATE-SEAT Price: $213.06 |
| 2 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 3 |
75-3530 |
SPRING-COMPRESSION Price: $31.98 |
| 4 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 4 |
532125096 |
KEY STD (1373) DANA Price: $7.99 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 6 |
3285-19 |
PIN-GROOVE This part replaces 75-3540. Price: $1.79 |
| 6 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 7 |
532123378 |
STRAP,TORQUE Price: $2.99 |
| 7 |
75-3550 |
BUMPER-SEAT Price: $18.48 |
| 8 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 8 |
76-2940 |
BUMPER Price: $9.73 |
| 9 |
532146682 |
SPRING,BRAKE RETURN This part replaces 532110422. Price: $5.99 |
| 9 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 10 |
532059192 |
VALVE CAP Price: $4.99 |
| 10 |
66-8610 |
DISCONTINUED Price: Call Us |
| 11 |
532065139 |
VALVE STEM LT Price: $5.99 |
| 11 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 12 |
532008134 |
TUBE.16X6.5/7.5-8 Price: $37.99 |
| 12 |
76-1910 |
DISCONTINUED Price: Call Us |
| 13 |
532123411 |
TIRE.16X7.5-8.TURF.SAVER.FRONT Price: $89.99 |
| 13 |
82-9060 |
DISCONTINUED Price: Call Us |
| 14 |
532121749 |
WASHER Price: $2.99 |
| 14 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 15 |
532121748 |
WASHER Price: $3.99 |
| 15 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 16 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 16 |
812000001 |
E-RING LT Price: $3.99 |
| 17 |
532104757 |
CAP.HUB.FRONT.LT.BLACK Price: $3.99 |
| 17 |
66-8520 |
BUMPER-DOWNSTOP Price: $37.56 |
| 18 |
532124973 |
RIM T Price: $96.67 |
| 18 |
76-1960 |
KNOB KIT This part replaces 77-2870. Price: $357.33 |
| 19 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 19 |
532123409 |
SPACER Price: $3.08 |
| 20 |
3256-46 |
WASHER-FLAT Price: $5.77 |
| 20 |
532123583 |
SQUARE KEY Price: $3.99 |
| 21 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 21 |
874760644 |
BOLT Price: $3.99 |
| 22 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 22 |
532123377 |
BRKT,TRANSAXLE Price: $2.99 |
| 23 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 23 |
75-3480 |
FRAME-UPPER Price: $323.32 |
| 24 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 24 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 25 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 25 |
532128085 |
SPRING.EXTENSION This part replaces 532123393. Price: $5.99 |
| 26 |
532123632 |
LINK,SHIFT Price: $14.99 |
| 26 |
75-3510 |
BOLT-SHOULDER Price: $14.55 |
| 27 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 27 |
93-3164 |
CAP Price: $11.64 |
| 28 |
596136601 |
Bolts This part replaces 871040412. Price: $1.99 |
| 28 |
93-3163 |
SPRING Price: $26.01 |
| 29 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 29 |
93-3165 |
BRACKET Price: $37.47 |
| 30 |
322-6 |
SCREW-HH Price: $0.45 |
| 30 |
532122011 |
KNOB,SHT CONTROL Price: $6.08 |
| 31 |
3253-33 |
WASHER-LOCK Price: $1.19 |
| 31 |
532123692 |
KNOB RETAINER Price: $2.42 |
| 32 |
532125976 |
SHIFT HANDLE ASSY Price: $21.03 |
| 33 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 34 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 35 |
532123539 |
ARM SHIFT Price: $2.38 |
| 36 |
873610500 |
This part replaces 873810500. Price: $2.15 |
