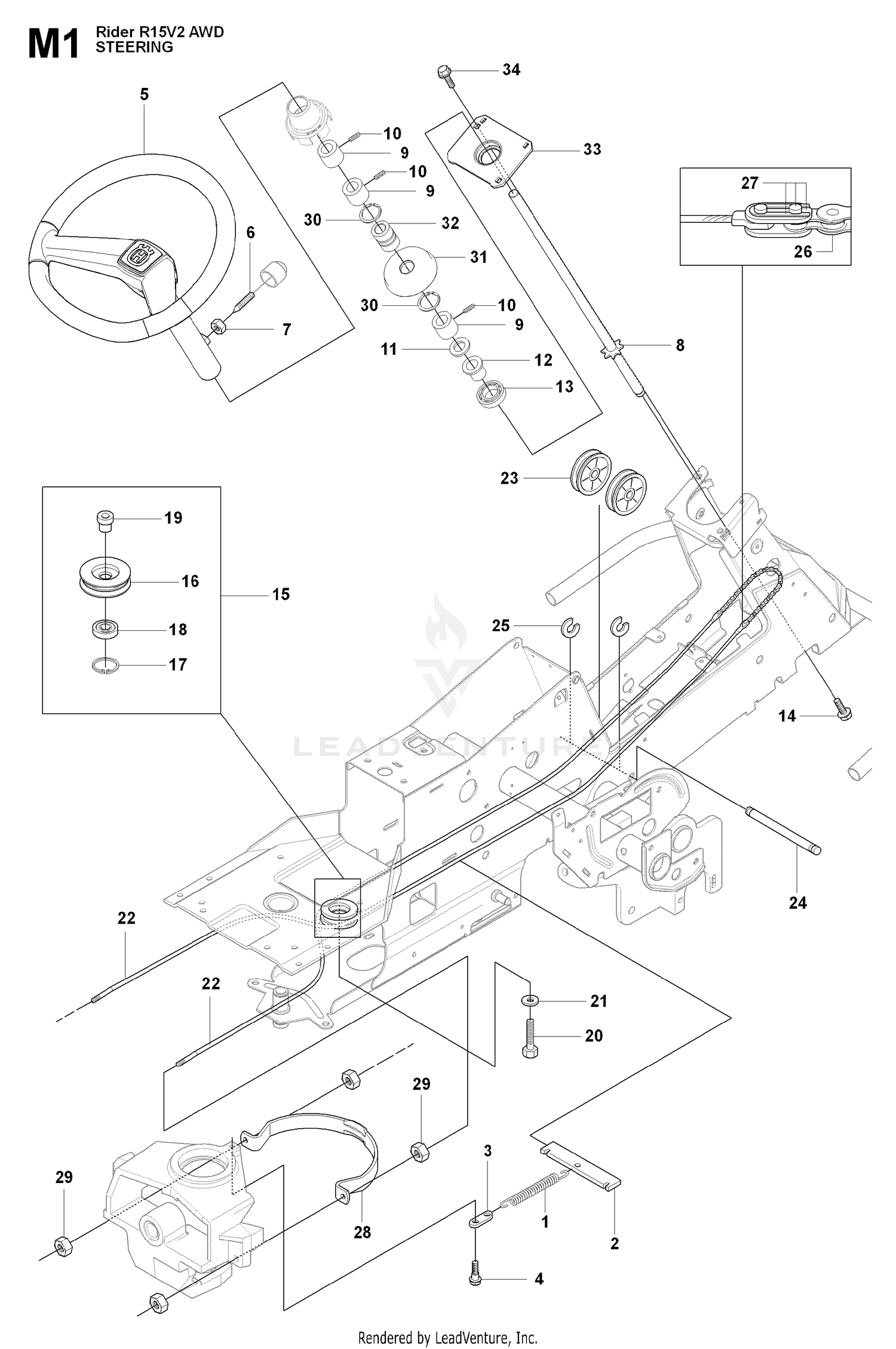

STEERING
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506671901 | SPRING Price: $22.99 |
| 1 | 95-7508 | SUPPORT-AXLE Price: $931.33 |
| 2 | 590735401 | Brackets This part replaces 506576301. Price: $12.99 |
| 2 | 95-7506 | SUPPORT-AXLE Price: $360.26 |
| 3 | 106-1067 | O-RING Price: $18.12 |
| 3 | 506670801 | CONNECTOR Price: $6.99 |
| 4 | 506597401 | BOLT Price: $5.99 |
| 4 | 95-7537 | BUSHING-FLANGED Price: $64.20 |
| 5 | 544375201 | NEEDS DESCRIPTION Price: Call Us |
| 5 | 99-7589 | PLUG Price: $3.73 |
| 6 | 728745505 | SCREW Price: $3.99 |
| 6 | 99-7590 | WASHER-SEAL Price: $2.94 |
| 7 | 110-4812 | AXLE VENT ASM Price: $11.06 |
| 7 | 731231801 | NUT Price: $3.99 |
| 8 | 502640801 | NEEDS DESCRIPTION Price: Call Us |
| 8 | 99-7592 | BOLT Price: $1.44 |
| 9 | 106-1068 | O-RING Price: $7.27 |
| 9 | 587080901 | DRIVER STEERING WHEEL This part replaces 506863401. Price: $7.99 |
| 10 | 104-8643 | PLUG Price: $10.18 |
| 10 | 728844305 | Screw Price: $1.99 |
| 11 | 104-8644 | O-RING Price: $3.09 |
| 11 | 506863601 | WASHER Price: $7.99 |
| 12 | 506887801 | SPACER Price: $7.99 |
| 13 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 14 | 506570104 | BOLT Price: $4.99 |
| 15 | 506500903 | RP PULLEY Price: $101.22 |
| 16 | 535424101 | ROLLER Price: $89.99 |
| 17 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 18 | 738220419 | BALL-BEARING 6204-2RS Price: $14.99 |
| 19 | 506500802 | BUSHING Price: $7.46 |
| 20 | 506675403 | COLLAR SCREW Price: $2.29 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 501604804 | WIRE ASSY This part replaces 506589104. Price: $17.99 |
| 23 | 506522401 | ROLLER Price: $9.99 |
| 24 | 506539402 | SHAFT Price: $7.99 |
| 25 | 735311420 | RETAINING RING Price: $2.99 |
| 26 | 506554601 | STEERING CHAIN Price: $17.99 |
| 27 | 506554701 | LINK Price: $4.99 |
| 28 | 544427301 | WIRE GUIDE Price: $29.99 |
| 29 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 30 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 31 | 535423701 | NEEDS DESCRIPTION Price: Call Us |
| 32 | 535447801 | NEEDS DESCRIPTION Price: Call Us |
| 33 | 502649301 | NEEDS DESCRIPTION Price: Call Us |
| 34 | 506570104 | BOLT Price: $4.99 |
