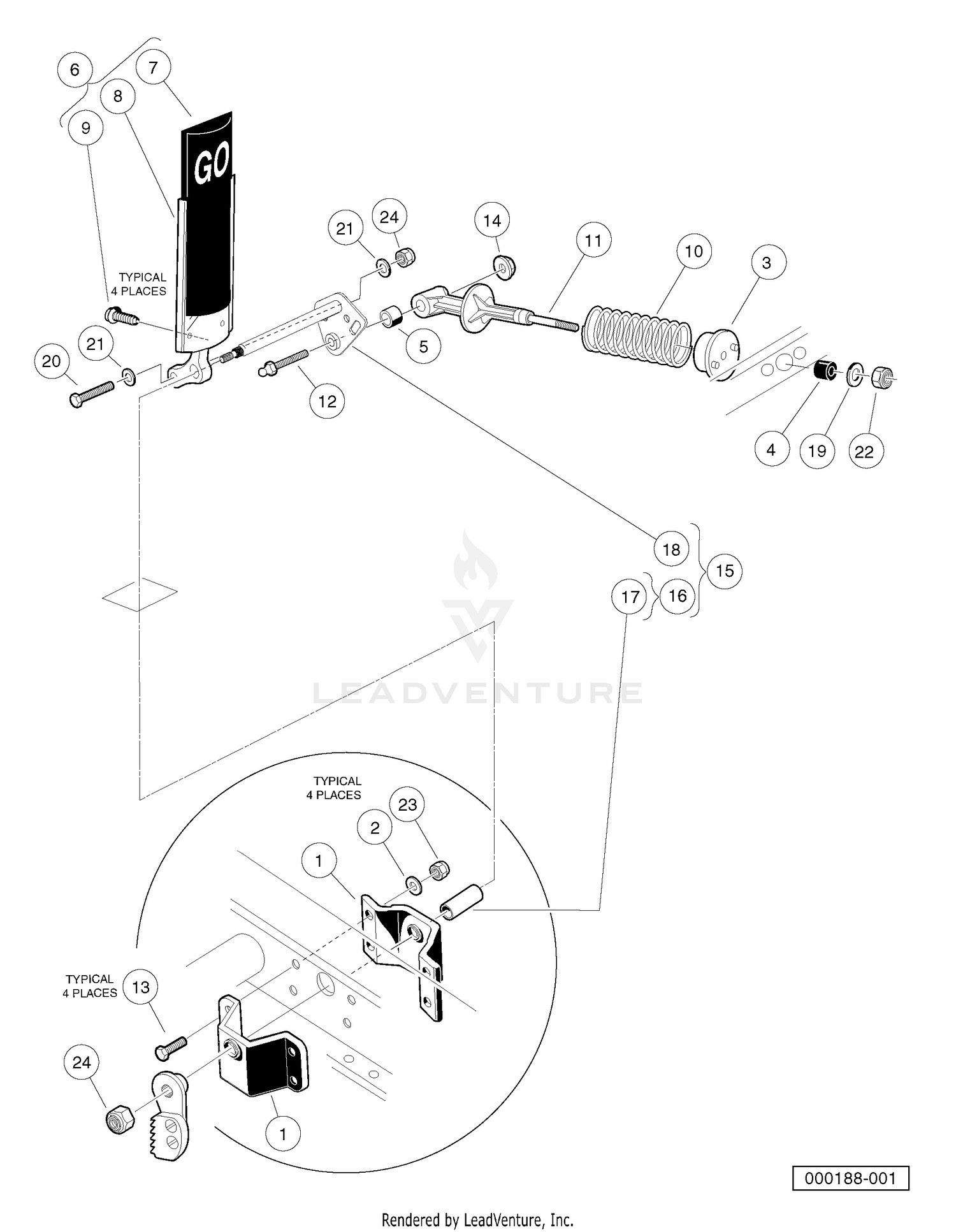

| Ref | Part Number | Description |
|---|
| 1 |
603000126 |
ACCEL BRKT & BEARING ASSY Price: $34.99 |
| 2 |
603000194 |
WASHER Price: $1.99 |
| 3 |
603000392 |
CUP, SPRING Price: $6.99 |
| 4 |
603000393 |
BUMPER, SPRING RETURN Price: $3.99 |
| 5 |
603000395 |
BEARING, PIVOT SUPPORT Price: $11.99 |
| 6 |
603000432 |
SUB ASM, ACCELERATOR PEDAL Price: $44.99 |
| 7 |
603000192 |
PAD , ACCL PEDAL Price: $7.99 |
| 9 |
603000081 |
SCREW TYPE AB SHT MTL Price: $1.99 |
| 11 |
603000499 |
RETAINER, SPRING Price: $24.99 |
| 12 |
603000500 |
STUD, 1/4-28 X 1.35 BALL Price: $7.99 |
| 13 |
603000528 |
SCREW, 1/4-20 X 1.125 HEX CAP Price: $1.99 |
| 14 |
603000094 |
LOCKNUT, 1/4-28 NYLON INSERT This part replaces 603000617. Price: $1.99 |
| 15 |
603000697 |
ACCEL. PIVOT ROD ASM. KIT Price: $37.99 |
| 19 |
603000065 |
WASHER, 5/16 TYPE A FLAT Price: $1.99 |
| 20 |
603000068 |
SCREW, 3/8-16 X 1.5 HX HD CAP Price: $2.99 |
| 21 |
603000055 |
WASHER, 3/8 FLAT Price: $1.99 |
| 22 |
603000078 |
LOCKNUT, 5/16-18 NYLON INSERT Price: $1.99 |
| 23 |
603000089 |
LOCKNUT, 1/4-20 NYLON INSERT Price: $1.99 |
| 24 |
603000095 |
LOCKNUT, 3/8-16 HEX Price: $1.99 |
