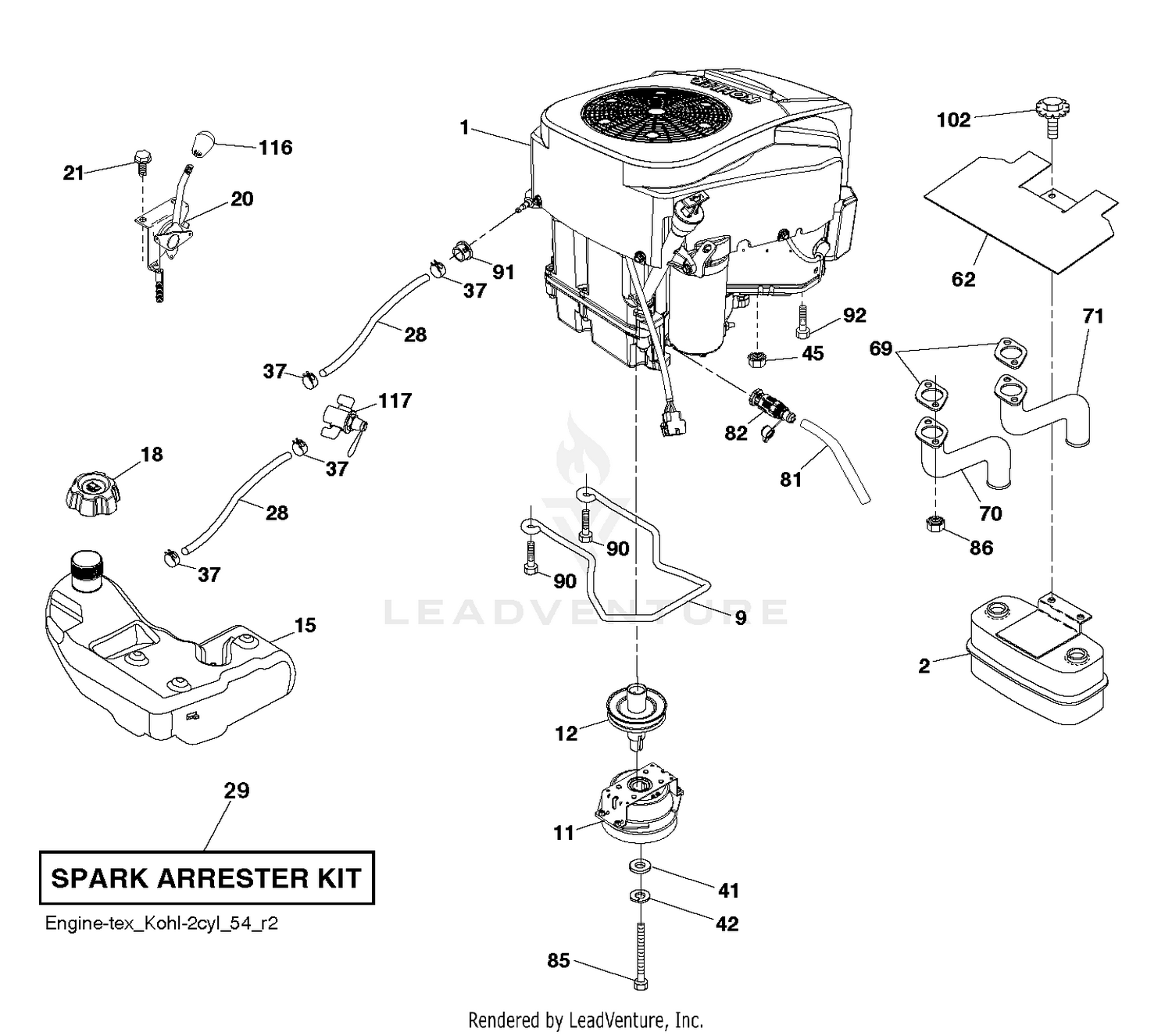

| Ref | Part Number | Description |
|---|
| 2 |
108-3811 |
FILTER-AIR Price: $21.47 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 3 |
94-3652 |
COVER ASM Price: $90.38 |
| 4 |
87-9400 |
VALVE-VACUATOR Price: $11.48 |
| 9 |
596501502 |
Keepers Price: $9.99 |
| 11 |
587255001 |
CLUTCH. 5.0 PD. 2.5 OFFSET Price: $229.99 |
| 12 |
586899601 |
PULLEY.EXTENDED.SHAFT.GROUND Price: $29.99 |
| 15 |
529999002 |
TANK ASSY W/CAP 4 GAL REAR EPA This part replaces 532438030. Price: $249.99 |
| 18 |
585124801 |
CAP ASSY FUEL 3" GRAY Price: $17.99 |
| 20 |
532424341 |
CONTROL.THROTTLE.PRO. Price: $34.99 |
| 21 |
596321701 |
Screws Price: $2.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers Price: $2.99 |
| 45 |
596133601 |
Hardware Price: $2.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606901 |
BOLT.HEX.7/16-20X3.GR5.YELLOW Price: $3.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 117 |
532420828 |
VALVE FUEL RESERVE Price: $27.99 |
