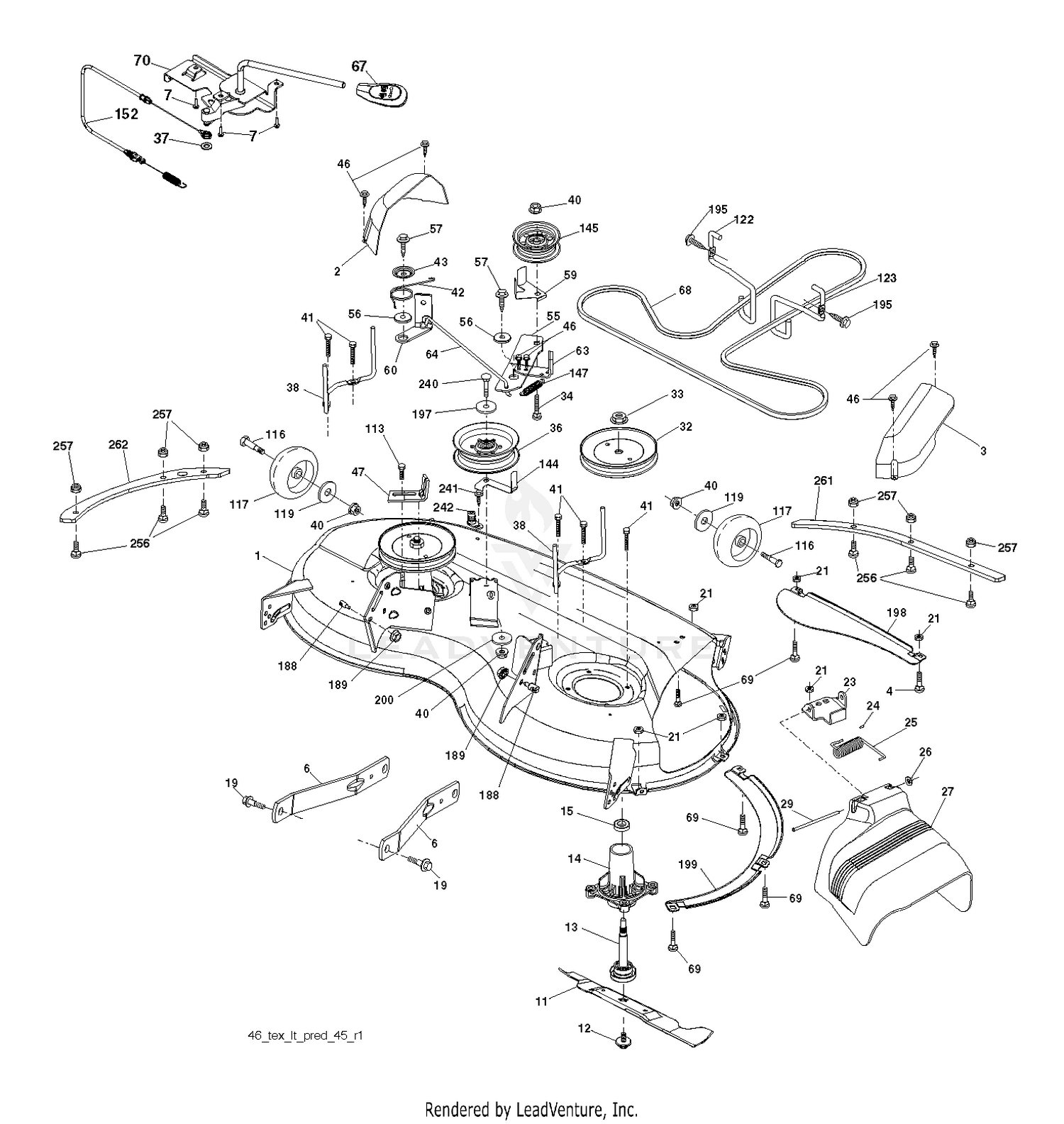

| Ref | Part Number | Description |
|---|
| 1 |
251-347 |
BEARING-BALL Price: $9.69 |
| 1 |
583900906 |
DECK SVC 46"583900906X421 Price: $449.99 |
| 2 |
532405507 |
COVER.MANDREL.LH.46" Price: $29.99 |
| 3 |
106-6941 |
SEAL Price: $5.74 |
| 3 |
532405506 |
COVER.MANDREL.RH.46" Price: $29.99 |
| 4 |
106-6942 |
V-RING Price: $8.86 |
| 4 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 5 |
107-8133 |
WASHER-FLAT Price: $3.05 |
| 6 |
107-3505 |
SPACER-TOOL, ROLLER Price: $8.20 |
| 6 |
532195186 |
ARM.SUSPENSION.MOWER.R Price: $8.99 |
| 7 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 11 |
532405380 |
BLADE.MOWER.46".HI.LIFT Price: $14.99 |
| 12 |
584309301 |
SCREW.SEMS.7/16-20X1.HEX.HEAD Price: $1.99 |
| 13 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192872. Price: $32.99 |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $44.99 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $14.99 |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 38 |
532432520 |
KEEPER.BELT.MANDREL.PULLEY Price: $5.99 |
| 40 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $1.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $2.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $2.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $2.99 |
| 55 |
532197249 |
IDLER.ARM Price: $3.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 59 |
532141043 |
GUARD, BELT Price: $3.99 |
| 60 |
532199471 |
ARM BRAKE MOWER RH 38" Price: $11.99 |
| 63 |
532199478 |
ARM.BRAKE.ZINC This part replaces 532199477. Price: $12.99 |
| 64 |
532405139 |
LINKAGE.ASM.BRAKE.CLEAR.ZINC This part replaces 532405138. Price: $22.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $7.99 |
| 68 |
584453101 |
V-BELT.DRIVE.MWR.MECHANICL.46" This part replaces 532405143. Price: $32.99 |
| 69 |
872140505 |
BOLT Price: $2.99 |
| 70 |
532199972 |
CLUTCH.ASM.MANUAL.YT.PREDATORQ Price: $59.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 116 |
532004898 |
BOLT This part replaces 532124842. Price: $1.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $2.99 |
| 119 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
| 122 |
532197258 |
KEEPER BELT ENGINE LH Price: $9.99 |
| 123 |
532197259 |
KEEPER BELT RH Price: $9.99 |
| 144 |
532199204 |
KEEPER.BELT.MOWER Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 147 |
532401872 |
SPRING RETURN Price: $2.99 |
| 152 |
584243501 |
CABLE.MECHANICAL.CLUTCH Price: $22.99 |
| 188 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 189 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 197 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 198 |
532403149 |
BAFFLE CENTER FRONT Price: $11.99 |
| 199 |
532403150 |
BAFFLE FRONT RH Price: $11.99 |
| 200 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD Price: $2.99 |
| 240 |
874520636 |
BOLT-HEX EAK Price: $3.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $5.99 |
| 256 |
578296404 |
SCREW.BUTTONHEAD.1/4-20X1 Price: $1.99 |
| 257 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873900400. Price: $2.99 |
| 261 |
589481805 |
PLATE.REINF.DECK.46".FRONT.BLK This part replaces 585317705. Price: $6.99 |
| 262 |
585317805 |
PLATE.REINFOR.46.SIDEBOLT.X431 Price: $5.99 |
