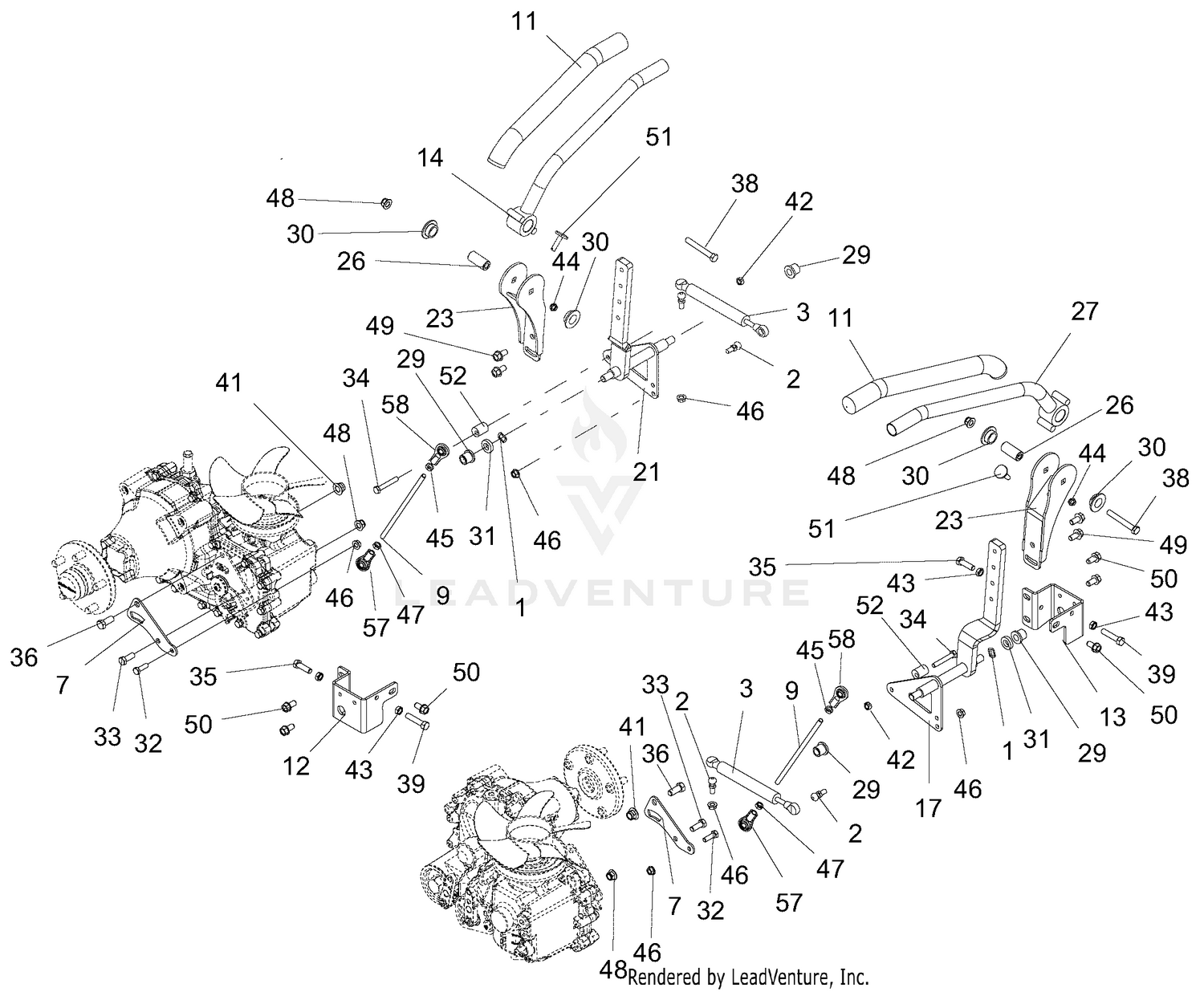

| Ref | Part Number | Description |
|---|
| 1 |
00325400 |
WAVE WASHER .531X.781X.125FH Price: $0.95 |
| 2 |
03652200 |
STUD- BALL Price: $3.45 |
| 3 |
09689700 |
DAMPER This part replaces 03769800. Price: $38.45 |
| 7 |
03885451 |
CONTROL MTG BRACKET - BLACK Price: $16.45 |
| 9 |
03938500 |
ROD, STEERING Price: $9.45 |
| 11 |
04383600 |
GRIP, HANDLEBAR Price: $32.45 |
| 12 |
04395153 |
BRACKET, STEERING STOP, RH Price: $33.95 |
| 13 |
04395253 |
BRACKET, STEERING STOP, LH Price: $22.95 |
| 14 |
04413000 |
WLDMT, RH STEERING ARM Price: $220.45 |
| 17 |
04413100 |
WLDMT, LH LOWER CONTROL ARM Price: $305.95 |
| 21 |
04413200 |
WLDMT, RH LOWER CONTROL ARM Price: $142.95 |
| 23 |
04413351 |
STEERING ARM ADJ MNT WLDMT-BLK Price: $71.45 |
| 26 |
04413600 |
SPACER, STEERING ARM Price: $5.95 |
| 27 |
04424000 |
WLDMT, LH STEERING ARM Price: $152.95 |
| 29 |
05501001 |
BHSG-FLG .500X.750X.750X.125 Price: $4.45 |
| 30 |
05501517 |
BSHG, FLANGED .762 X 1.48 X .44 IGLIDER This part replaces 05525200. Price: $2.45 |
| 31 |
05532400 |
SPACER .531 X 1.00 X .225 Price: $3.45 |
| 32 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 33 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 34 |
05901805 |
BLT- HEX .31-18X2.00 G5 ZCC This part replaces 05957200. Price: $1.45 |
| 35 |
05901724 |
BLT- HEX .38-16X1.25 G5 ZCC This part replaces 05958000. Price: $1.45 |
| 36 |
05901913 |
BLT, HEX 0.4375-14X1 GR5 ZCC This part replaces 05958700. Price: $2.45 |
| 38 |
06200315 |
BLT, RHSSN.38-16X2.50 G5 ZCC This part replaces 06200213. Price: $3.45 |
| 39 |
05901612 |
BLT, HEX .38-16X1.75F G5 ZCC This part replaces 05974000. Price: $2.95 |
| 41 |
06500811 |
NUT,NYL-FLG .44-14 GF ZCC This part replaces 06500009. Price: $5.45 |
| 42 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC This part replaces 06529800. Price: $1.45 |
| 43 |
06500910 |
NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95 |
| 44 |
06500909 |
NUT-JAM .312-18 G2 ZCC This part replaces 06536100. Price: $0.95 |
| 45 |
06500923 |
NUT-JAM .312-24 ZCC This part replaces 06536700. Price: $0.95 |
| 46 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 47 |
06501002 |
NUT, JAM-LH .312-24 ZCC This part replaces 06544300. Price: $3.45 |
| 48 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 49 |
07028500 |
BLT-SERHFWH .38-16X.75 YWZC Price: $1.95 |
| 50 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 51 |
07500219 |
BUMPER, STUD MOUNTED Price: $13.45 |
| 52 |
09235700 |
ECCENTRIC Price: $4.45 |
| 57 |
05298700 |
ROD END- 5/16 LH THREAD This part replaces 03787200. Price: $15.45 |
