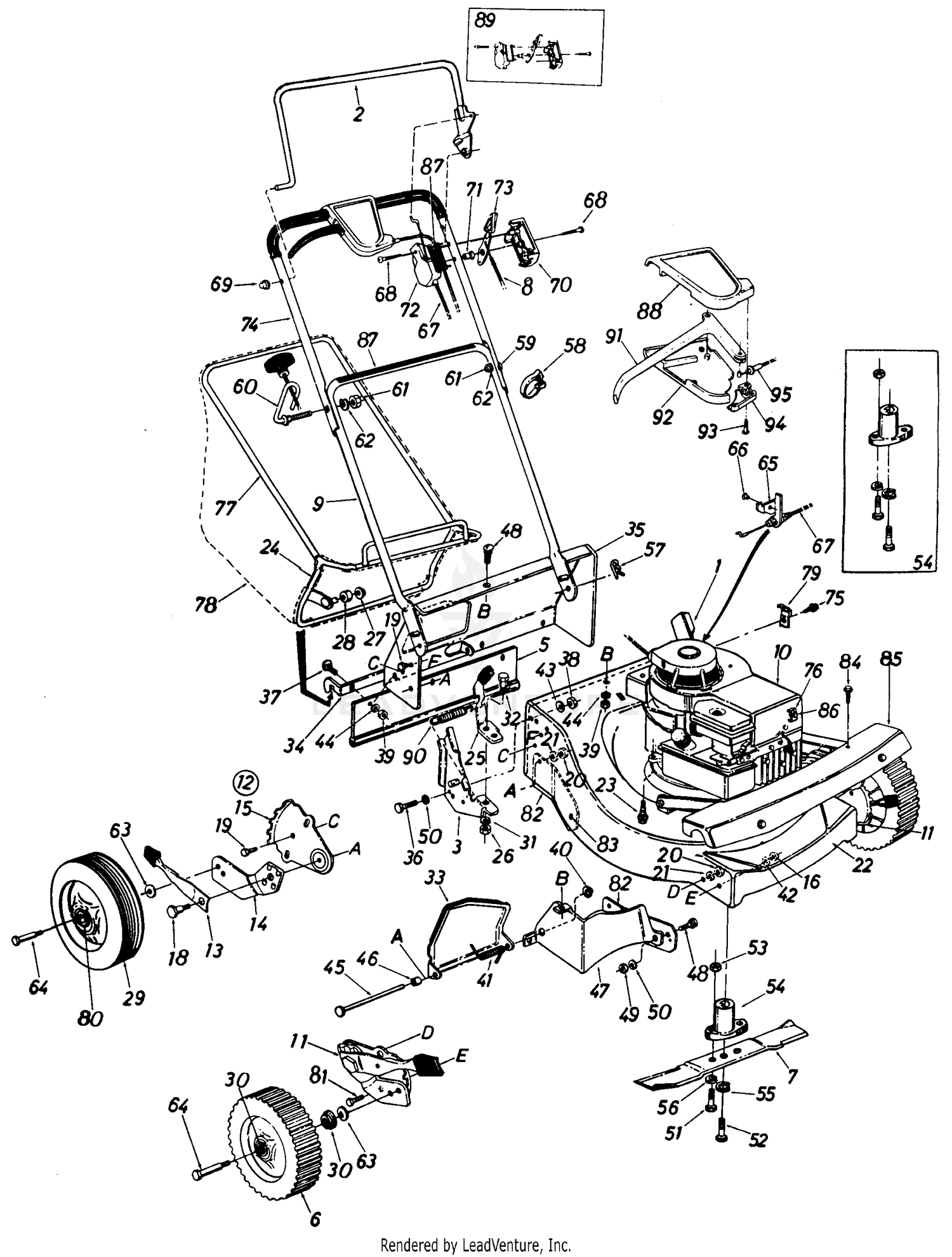

| Ref | Part Number | Description |
|---|
| 1 |
12297 |
BRACKET ASSEMBLY Not Available Price: |
| 2 |
14321 |
CONTROL HANDIE ASS'Y.-L.H. Not Available Price: |
| 3 |
14592 |
Handle Brkt. Ass'y.-R.H. Price: Call Us |
| 5 |
731-0665 |
FLAP Not Available Price: |
| 6 |
734-1026 |
ASS'Y. COMP. (GEAR TREAD) Not Available Price: |
| 8 |
946-0674A |
Throttle Wire-58" Lg. Not Available This part replaces 746-0472. Price: |
| 9 |
749-0907B |
Lower Handle This part replaces 749-0505. Price: $43.95 |
| 10 |
N/A |
Engine |
| 13 |
732-0417A |
SPRING LEVER Not Available This part replaces 732-0417. Price: |
| 14 |
16421 |
Pivot Bar-L.H. Price: Call Us |
| 15 |
14764C |
Index Plate Not Available This part replaces 14764. Price: |
| 16 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. Price: $4.02 |
| 18 |
738-0507B |
Shoulder Bolt .50" Dia. This part replaces 738-0507. Price: $3.86 |
| 19 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 20 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 21 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 23 |
710-0654A |
TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75 |
| 24 |
14582 |
CATCHER LOWER FRAME Not Available Price: |
| 25 |
14845 |
CATCHER LOCK LEVER W/ KNOB Not Available Price: |
| 26 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 27 |
726-0100 |
Push Nut 3/8" Rod Price: $3.75 |
| 28 |
731-0430 |
ROLLER-PLASTIC Not Available Price: |
| 29 |
734-0874 |
WHEEL ASS'Y. COMP. (WAFFLE TREAD) Not Available Price: |
| 30 |
941-0180 |
BALL BEARING Not Available This part replaces 741-0180. Price: |
| 31 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 32 |
938-0155 |
Shoulder Bolt This part replaces 738-0155. Price: $6.01 |
| 33 |
13407 |
CHUTE DOOR Not Available Price: |
| 34 |
14012 |
ADAPTER-GR Not Available Price: |
| 35 |
16258 |
DECK SECTI Not Available Price: |
| 36 |
710-0412 |
Hex Bolt 1/4-28 x .75" Lg. Price: $4.95 |
| 37 |
710-0703 |
Carr. Bolt 1/4-20 x .75" Lg. Price: $3.66 |
| 38 |
712-0138 |
Hex Nut 1/4-28 Thd. Price: $5.99 |
| 39 |
712-0271 |
Sems Nut 1/4-20 Thd. Price: $3.78 |
| 40 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 41 |
732-0346 |
TORSION SPRING Not Available Price: |
| 42 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 43 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 44 |
736-0211 |
Fl-Wash. .285" I.D. x 1.25" O.D. Price: $5.99 |
| 45 |
738-0386 |
HINGE PIN Not Available Price: |
| 46 |
950-0218 |
SPACER Not Available This part replaces 750-0218. Price: |
| 47 |
16259 |
BAFFLE-RR Not Available Price: |
| 48 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 49 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 50 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 51 |
710-0888 |
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) Price: $3.86 |
| 52 |
710-0331 |
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) Price: $6.01 |
| 53 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 54 |
753-0348 |
Blade Adapter Kit Price: Call Us |
| 55 |
736-0217 |
L-Wash. 3/8" I.D.-H.D. Price: $3.86 |
| 56 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 57 |
714-0104 |
Intern. Cot. Pin 5/16" Dia. Price: $3.90 |
| 58 |
726-0192 |
CABLE TIE Not Available Price: |
| 59 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 60 |
710-0842 |
OPE GUIDE BOLT Not Available Price: |
| 61 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 62 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 63 |
736-0105 |
Bell-Wash. .400" I.D. x .88" O.D. x .060 Price: $3.96 |
| 64 |
738-0102 |
Axle Bolt Price: $9.22 |
| 65 |
14924 |
BRACKET-CA Not Available Price: |
| 66 |
728-0171 |
RIVET Not Available Price: |
| 67 |
946-0477A |
CONTROL CABLE Not Available This part replaces 746-0477. Price: |
| 68 |
710-0796 |
Truss Mach. Hd. "B" Tap Scr. #12 x 1.50" Lg. Price: $4.75 |
| 69 |
726-0135 |
Cap Speed Nut 5/16" Rod Price: $5.94 |
| 70 |
731-0523 |
CONTROL PANEL HALF Not Available Price: |
| 71 |
731-0524 |
CONROL DISC PIN Not Available Price: |
| 72 |
731-0526 |
CLUTCH PANEL HALF Not Available Price: |
| 73 |
931-0972 |
Throttle Control Lever This part replaces 731-0528. Price: $8.84 |
| 74 |
749-0438D-0637 |
UPPER HANDLE Not Available This part replaces 749-0436. Price: |
| 75 |
910-0429 |
Hex B-Tap Scr. #10 x .38" This part replaces 710-0429. Price: $3.20 |
| 76 |
751-0369 |
CLAMP-CONDUIT Not Available Price: |
| 77 |
749-0278 |
FRAME-CATCHER-UPR Not Available Price: |
| 78 |
764-0171 |
GRASSBAG Not Available Price: |
| 79 |
12894 |
CABLE CLAMP Not Available Price: |
| 80 |
741-0262 |
Fortiflex Bearing Price: $7.26 |
| 81 |
710-0216 |
Hex Bolt 3/8-16 x .75" Lg. Price: $3.93 |
| 82 |
16366 |
Side Baffle Price: $20.00 |
| 83 |
728-0141 |
POP RIVET Not Available Price: |
| 84 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 85 |
12982 |
COVER Not Available Price: |
| 86 |
710-0227 |
Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg. Price: $3.90 |
| 87 |
777 |
Instruction Labels Price: Call Us |
| 88 |
731-0617A |
HALF COVER Not Available This part replaces 731-0617. Price: |
| 89 |
753-0360 |
CONTROL HOUSING COMP. Not Available Price: |
| 90 |
732-0357A |
Extension Spring .33 OD x 1.12 Lg. This part replaces 732-0357. Price: $3.94 |
| 91 |
731-0620A |
Drive Control This part replaces 731-0620. Price: $13.59 |
| 92 |
753-0833 |
Control Cover Half-Lower This part replaces 731-0618. Price: $47.34 |
| 93 |
710-0841 |
Fl-"C" Sunk Hd. Scr. #10 x .75" Lg. Price: $3.95 |
| 94 |
731-0619 |
CABLE MOUNTING CAP Not Available Price: |
| 16422 |
Pivot |
Bar-R.H. Price: Call Us 16422 |
