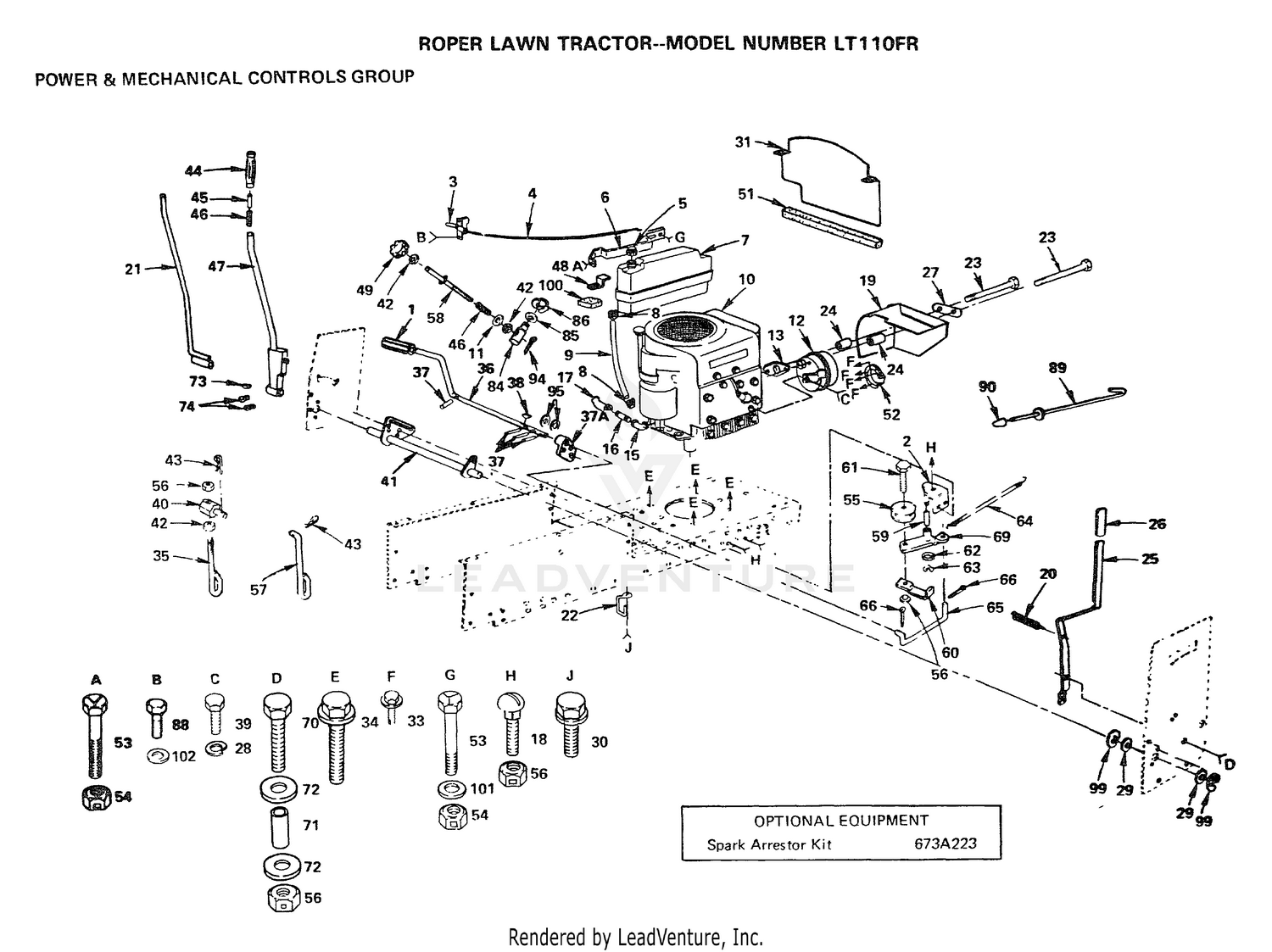

| Ref | Part Number | Description |
|---|
| 1 |
105-2917 |
INSTRUMENT PANEL ASM Price: $119.85 |
| 1 |
8883R |
PEDAL COVER T Price: Call Us |
| 2 |
105724X |
SUB= 123102X Price: Call Us |
| 2 |
98-9339 |
GAUGE-FUEL Price: $115.28 |
| 3 |
104-4065 |
HARNESS-WIRE, MAIN Price: $714.83 |
| 3 |
61159 |
KNOB Price: Call Us |
| 4 |
101336K |
SUB= 132753 Price: Call Us |
| 4 |
32128-30 |
NUT Price: $2.69 |
| 5 |
322-3 |
SCREW-HH Price: $0.79 |
| 5 |
8504J |
SUB= 9188504J Price: Call Us |
| 6 |
104800X |
SUPPORT-TANK LT Price: Call Us |
| 6 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 7 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 7 |
3615J |
SUB= 121280X Price: Call Us |
| 8 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 8 |
6999R |
SUB= 123487X Price: Call Us |
| 9 |
106-5190 |
BATTERY Price: $170.85 |
| 9 |
7833R |
HOSE T Price: Call Us |
| 10 |
104-9497 |
CABLE-BATTERY, NEGATIVE Price: $75.01 |
| 10 |
253707 |
ENGINE-B&S Price: Call Us |
| 11 |
19131016 |
WASHER Price: Call Us |
| 11 |
95-8853 |
CABLE-BATTERY, POSITIVE Price: $95.21 |
| 12 |
101273M |
MUFFLER LTV Price: Call Us |
| 12 |
24-6420-03 |
HOLDDOWN-BATTERY Price: $55.90 |
| 13 |
1407J |
SUB= 272293 Price: Call Us |
| 13 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 14 |
1150400 |
SUB= 11150400 Price: Call Us |
| 14 |
3217-6 |
NUT-HEX Price: $1.19 |
| 15 |
13240300 |
STREET ELBOW LT Price: Call Us |
| 15 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 16 |
13280328 |
PIPE NIPPLE Price: Call Us |
| 16 |
32103-2 |
NUT-WING Price: $0.68 |
| 17 |
13200300 |
ELBOW Price: Call Us |
| 18 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 18 |
72140606 |
BOLT Price: Call Us |
| 19 |
104910X |
BAFFLE ASSY LT Price: Call Us |
| 19 |
112-6561 |
WARNING LIGHT ASM This part replaces 98-9306. Price: $121.84 |
| 20 |
98-9308 |
GAUGE-TEMPERATURE Price: $112.90 |
| 21 |
100-8072 |
SWITCH Price: $94.07 |
| 21 |
104598X |
ROD ASSY-LEVER LT Price: Call Us |
| 22 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 22 |
104777X |
SUB= 140312 Price: Call Us |
| 23 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 23 |
74780572 |
BOLT YT Price: Call Us |
| 24 |
101496X |
SPACER LT Price: Call Us |
| 24 |
43-3990 |
CONTROL-THROTTLE Price: $49.39 |
| 25 |
106983X |
HANDLE YT Price: Call Us |
| 25 |
3290-134 |
SCREW Price: $0.27 |
| 26 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 26 |
4617J |
SUB= 532131861 Price: Call Us |
| 27 |
104909X |
CLIP-MUFFLER LT Price: Call Us |
| 27 |
105-0002-01 |
BRACKET-RELAY Price: $34.06 |
| 28 |
10040400 |
LOCKWASHER Price: Call Us |
| 28 |
70-1480 |
RELAY Price: $105.19 |
| 29 |
19292016 |
WASHER Price: Call Us |
| 29 |
98-7611 |
CONTROLLER-GLOW Price: $316.53 |
| 30 |
17490612 |
SCREW Price: Call Us |
| 30 |
37-2690 |
CAPACITOR Price: $155.98 |
| 31 |
109623X |
SUB= 133685 Price: Call Us |
| 31 |
2412-74 |
R-CLAMP Price: $2.37 |
| 32 |
19131312 |
WASHER Price: Call Us |
| 32 |
321-4 |
SCREW-HH Price: $0.99 |
| 33 |
17210806 |
SCREW Price: Call Us |
| 33 |
32128-33 |
NUT-HF Price: $0.25 |
| 34 |
17490620 |
SCREW Price: Call Us |
| 34 |
98-9321 |
RING-KEY Price: $1.80 |
| 35 |
105855X |
LINK LIFT LT Price: Call Us |
| 36 |
109037X |
FOOT SHAFT PEDAL Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 37A |
106918X |
ARM BRAKE LT Price: Call Us |
| 38 |
2228M |
SUB= 2228M1 Price: Call Us |
| 39 |
74780408 |
BOLT Price: Call Us |
| 40 |
106204X |
SUB= 132793 Price: Call Us |
| 41 |
109991X |
SHAFT ASM T Price: Call Us |
| 42 |
732280600 |
SUB= 73220600 Price: Call Us |
| 43 |
4939M |
SUB= 85902 Price: Call Us |
| 44 |
109413X |
GRIP Price: Call Us |
| 45 |
105723X |
SUB= 125925X Price: Call Us |
| 46 |
2876H |
SPRING T Price: Call Us |
| 47 |
104597X |
LEVER ASSY LT Price: Call Us |
| 48 |
104799X |
BRACE-TANK LT Price: Call Us |
| 49 |
100734K |
SUB= 138057 Price: Call Us |
| 51 |
104915X |
SUB= 105037X Price: Call Us |
| 52 |
101326L |
DEFLECTOR.222573 Price: Call Us |
| 53 |
74780512 |
BOLT Price: Call Us |
| 54 |
73680500 |
SUB= 73690500 Price: Call Us |
| 55 |
106298X |
SUB= 139245 Price: Call Us |
| 56 |
73680600 |
SUB= 73690600 Price: Call Us |
| 57 |
110029X |
LIFT LINK LT Price: Call Us |
| 58 |
100735K |
ROD ADJUST LT Price: Call Us |
| 60 |
106499X |
SUB= 123205X Price: Call Us |
| 61 |
74760624 |
SUB= 74930624 Price: Call Us |
| 62 |
207J |
WASHER T Price: Call Us |
| 63 |
12000039 |
KLIP RING Price: Call Us |
| 66 |
76020412 |
COTTER PIN Price: Call Us |
| 69 |
105705X |
SUB= 125829X Price: Call Us |
| 70 |
74760624 |
SUB= 74930624 Price: Call Us |
| 71 |
108056X |
BUSHING YT Price: Call Us |
| 72 |
19121612 |
WASHER LT Price: Call Us |
| 73 |
8330H |
KEY STD Price: Call Us |
| 74 |
23180606 |
SCREW Price: Call Us |
| 84 |
101272K |
TRUNION LT Price: Call Us |
| 85 |
19151216 |
WASHER Price: Call Us |
| 86 |
12000037 |
KLIP RING Price: Call Us |
| 88 |
17720408 |
SCREW Price: Call Us |
| 89 |
105844X |
SUB= 125637X Price: Call Us |
| 90 |
71673 |
PLUNGER CAP T Price: Call Us |
| 94 |
76020308 |
SUB= 3145 Price: Call Us |
| 95 |
19252016 |
SUB= 121749X Price: Call Us |
| 99 |
12000029 |
RING Price: Call Us |
| 100 |
6431J |
PAD-SPACER T Price: Call Us |
| 101 |
19111416 |
WASHER Price: Call Us |
| 673A223 |
SCREEN |
Price: Call Us 673A223 |
