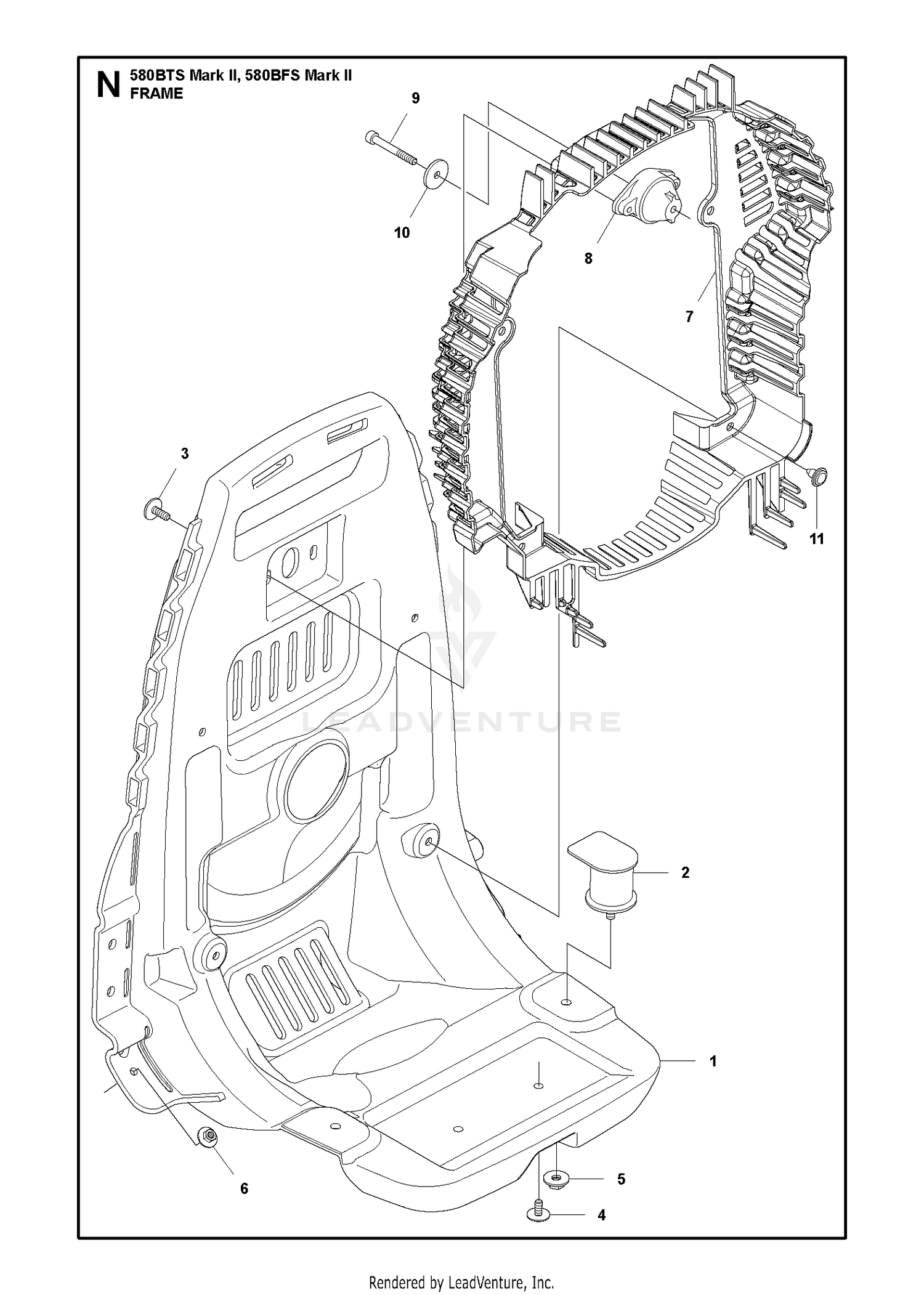

FRAME
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-60 | NUT-LOCK, NI Price: $5.08 |
| 1 | 577513801 | FRAME Price: $109.99 |
| 2 | 104-8322 | WASHER-HARDENED Price: $23.22 |
| 2 | 576562201 | DAMPER Price: $14.99 |
| 3 | 104-3548 | PULLEY-DRIVEN, HIGH Price: $157.35 |
| 3 | 544270801 | SCREW Price: $4.99 |
| 4 | 577628801 | SCREW Price: $2.99 |
| 5 | 106-7159 | O-RING Price: $0.99 |
| 5 | 513667501 | NUT Price: $2.99 |
| 6 | 119-4777 | SPINDLE ASM Price: $294.55 |
| 7 | 138-6416 | SPACER-SPINDLE, SHAFT This part replaces 69-6950. Price: $18.44 |
| 7 | 579659402 | NET FREE FLOW Price: $22.99 |
| 8 | 513666702 | DAMPER Price: $11.99 |
| 9 | 521517201 | BOLT Price: $2.99 |
| 10 | 577357901 | WASHER Price: $3.99 |
| 11 | 526243901 | CLIP Price: $3.99 |
