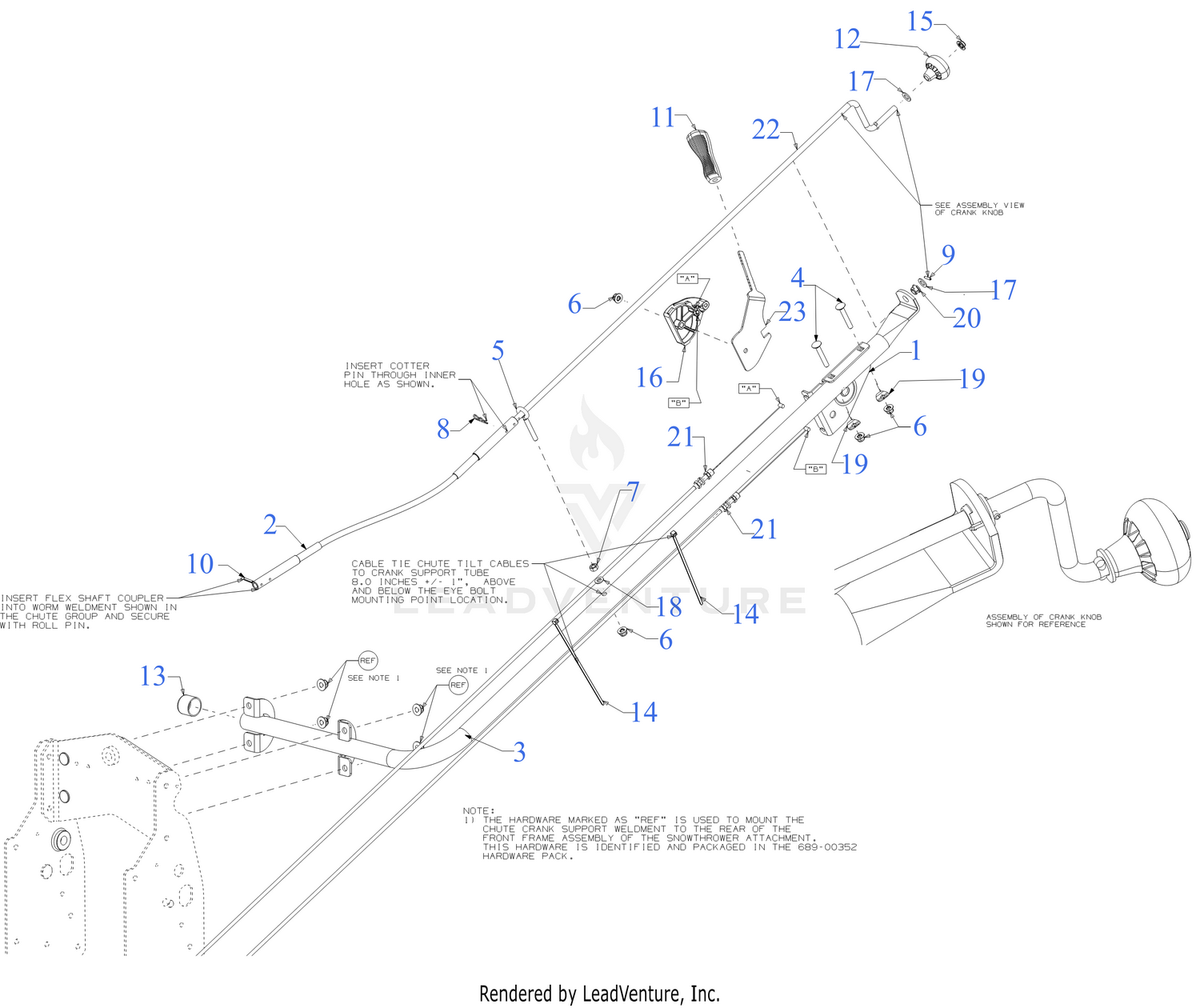

Chute Crank Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 603-0302A-0637 | CHUTE TILT BRACKET Price: $60.87 |
| 2 | 611-05064 | CHUTE CRANK Price: $171.54 |
| 3 | 684-05094-0637 | CHUTE CRANK SUPPORT (POWDER BLACK) Price: $147.58 |
| 4 | 710-0487 | BOLT 5/16-18 x 2.00 GR5 Price: $6.17 |
| 5 | 710-05050 | EYEBOLT 5/16-18 x 3.25 Price: $6.88 |
| 6 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 7 | 712-3010 | HEX NUT 5/16-18 Price: $3.89 |
| 8 | 714-0101 | INTERNAL COTTER PIN Price: $4.13 |
| 9 | 915-0138 | ROLL PIN 1/18 DIA Price: $4.17 |
| 10 | 715-04095 | ROLL PIN Price: $4.39 |
| 11 | 720-04049A | HANDLE GRIP Price: $14.09 |
| 12 | 720-04102 | SHIFT KNOB Price: $6.01 |
| 13 | 720-05005 | SEAT SPRING CAP Price: $2.77 |
| 15 | 726-0100 | PUSH NUT Price: $3.75 |
| 16 | 731-1313C | CABLE GUIDE Price: $10.46 |
| 17 | 736-0185 | FLAT WASHER Price: $3.43 |
| 18 | 736-0264 | FLAT WASHER Price: $5.99 |
| 19 | 736-0451 | SADDLE WASHER Price: $3.75 |
| 20 | 941-0475 | BUSHING .380 ID Price: $3.74 |
| 21 | 946-04332A | CHUTE CONTROL CABLE 74.5" Price: $61.11 |
| 22 | 747-06436 | CHUTE CRANK UPPER Price: $39.45 |
| 23 | 790-00650-0637 | CHUTE HANDLE TILT (POWDER BLACK) Price: $23.96 |
