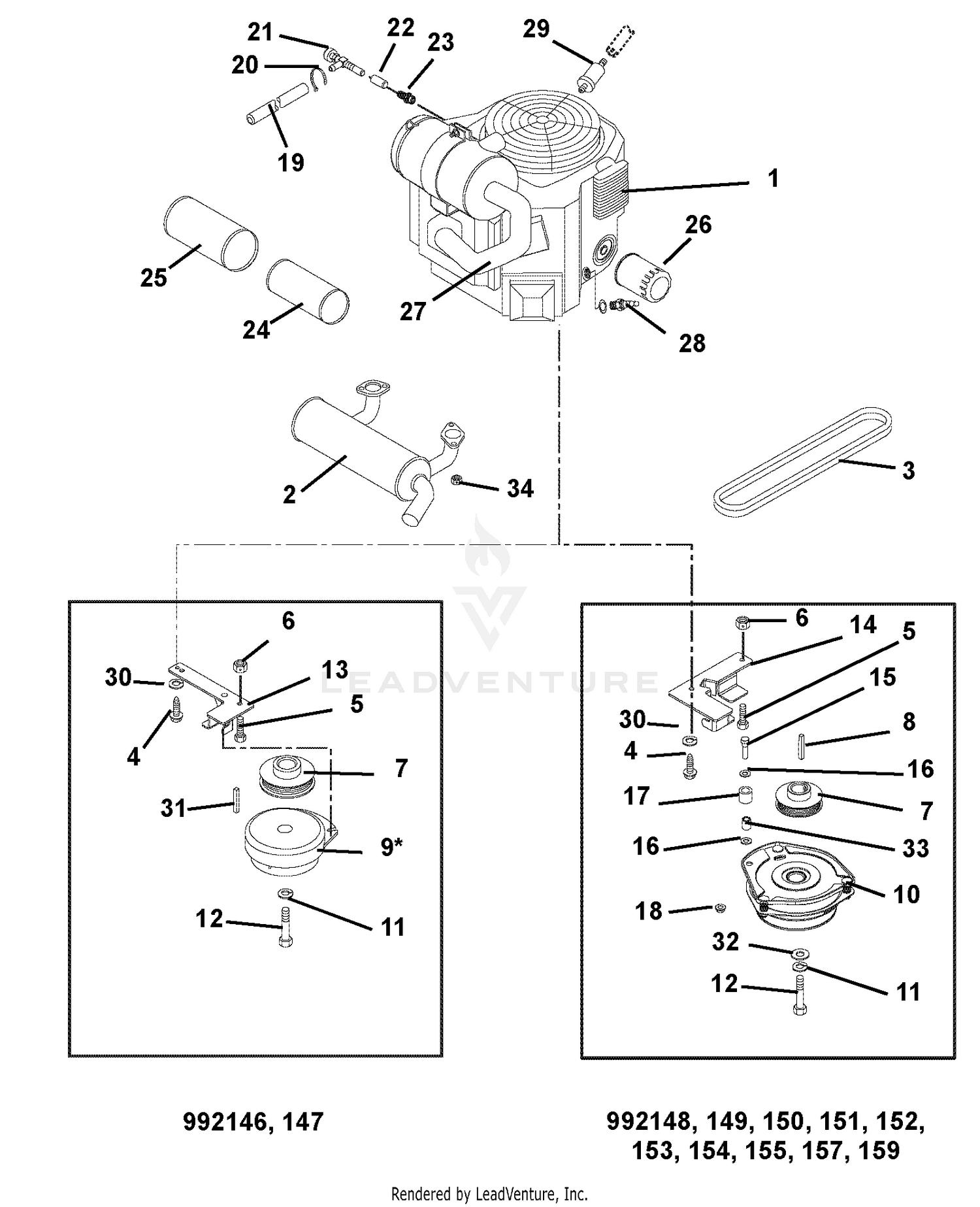

Engine And Clutch
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 07242000 | POLY V-BELT, K-5 RIBS Price: $47.95 |
| 6 | 06500904 | NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 7 | 07300041 | SHEAVE - POLY-V 1.127 X 3.275 Price: $83.95 |
| 11 | 06300121 | WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45 |
| 12 | 05900037 | BLT-HEX .44-20X3.00 G5 YZ EP80 Price: $6.45 |
| 21 | 00429000 | DRAIN, 1/2" OIL Price: $35.95 |
| 30 | 06300119 | WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
