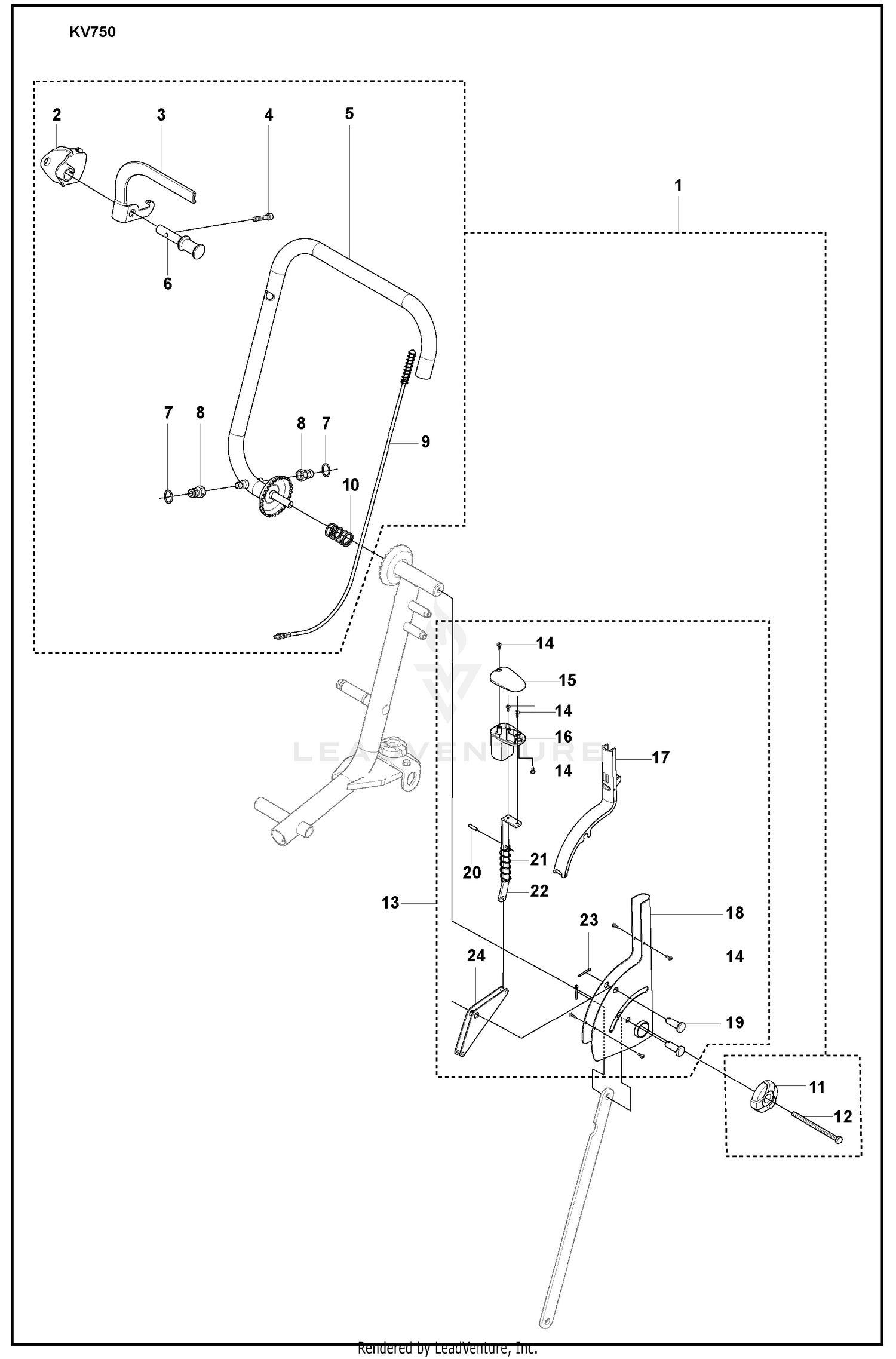

Handlebar Assy And Throttle And Height Adjustment
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 544919701 | COVER Price: $22.99 |
| 3 | 544953701 | THROTTLE HANDLE ASSY Price: $54.99 |
| 4 | 725545901 | SCREW Price: $2.98 |
| 5 | 544953601 | HANDLE Price: $189.99 |
| 6 | 544921101 | SHAFT Price: $59.99 |
| 7 | 502465101 | O-RING Price: $6.99 |
| 8 | 506308701 | CONNECTOR Price: $21.77 |
| 9 | 544981801 | WIRE ASSY Price: $37.99 |
| 10 | 544981601 | SPRING THROTTLE CONTROL Price: $8.99 |
| 11 | 504569301 | TURNING KNOB Price: $4.99 |
| 12 | 725247551 | SCREW Price: $9.99 |
| 14 | 729534201 | SCREW Price: $2.99 |
| 15 | 544915301 | KNOB Price: $38.99 |
| 16 | 544915401 | KNOB Price: $7.99 |
| 17 | 544915501 | COVER Price: $24.99 |
| 18 | 544957001 | LEVER Price: $89.99 |
| 19 | 721851401 | CLEVIS PIN 12X35X3.2 ISO 2341 Price: $11.99 |
| 20 | 721430801 | PIN Price: Call Us |
| 21 | 544982501 | SPRING Price: $3.99 |
| 22 | 544957101 | ROD Price: $8.99 |
| 23 | 721618201 | LOCKING PIN. 3.2X22 ISO 1234 Price: $2.99 |
