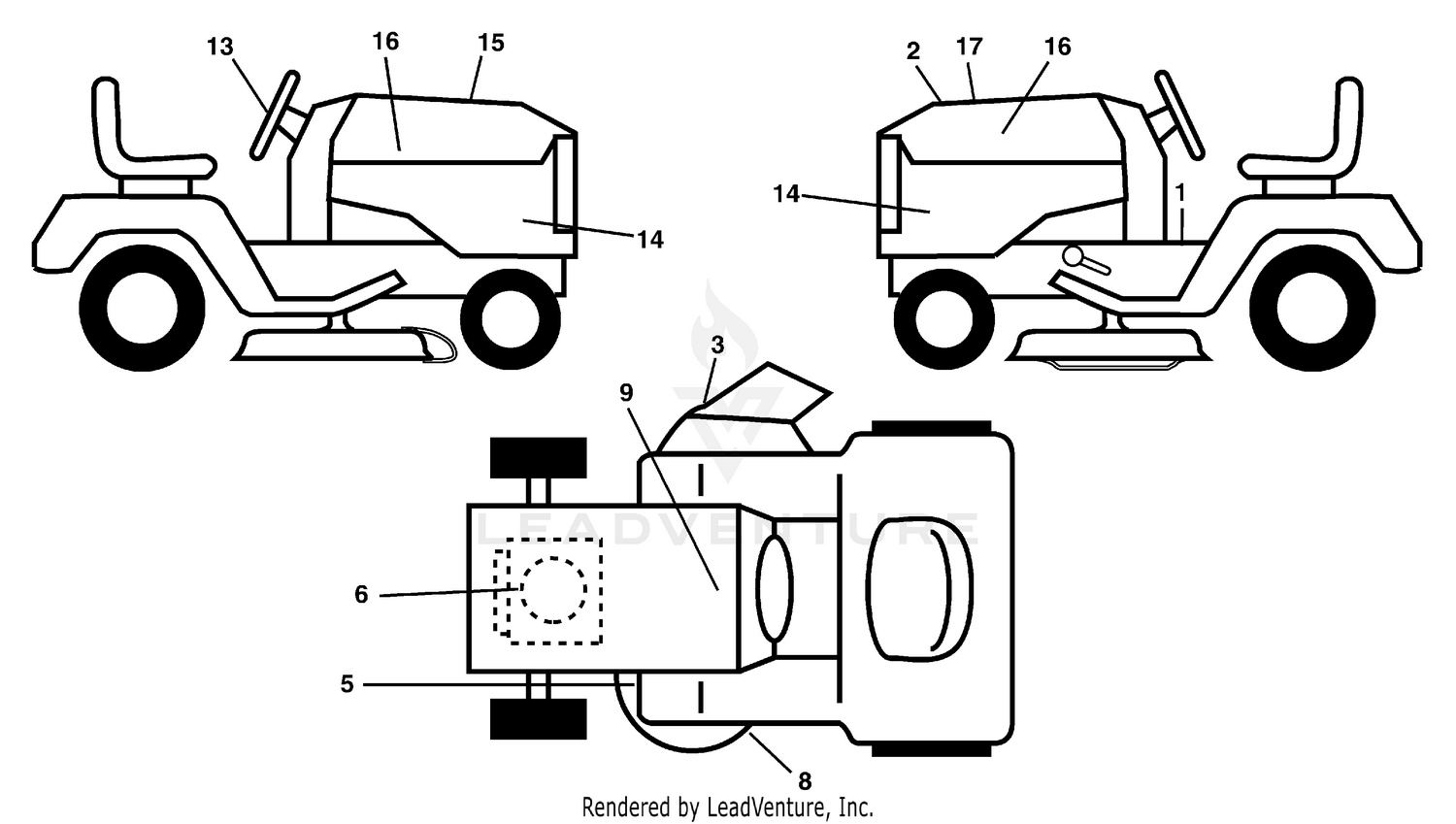

| Ref | Part Number | Description |
|---|
| 1 |
532402104 |
DECAL.FENDER.OPER.TEX. Price: $7.99 |
| 1 |
93-7836 |
DECAL-PEDAL, TRACTION Price: $14.38 |
| 2 |
532402128 |
DECAL.HOOD.TOP.INSERT. Price: $11.99 |
| 2 |
70-2200 |
DECAL Price: $5.09 |
| 3 |
581579501 |
DECAL.MOWER.WARN.KEEP.HAND.AWY This part replaces 532170563. Price: $3.99 |
| 3 |
94-2689 |
DISCONTINUED Price: Call Us |
| 4 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 5 |
532178502 |
DECAL CLUTCH/BRAKE Price: $7.99 |
| 5 |
93-7832 |
DECAL-CAUTION Price: $26.67 |
| 6 |
21-2660-01 |
PLATE-SIDE This part replaces 21-2660. Price: $299.86 |
| 6 |
532405278 |
DECAL, ENGINE Price: $2.99 |
| 7 |
32128-21 |
NUT-HF Price: $0.39 |
| 8 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 8 |
531229002 |
DECAL.DECK.BELT.ROUTING.48/54 This part replaces 532198785. Price: $1.99 |
| 9 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 9 |
532145005 |
DECAL BTRY SYMBOLS Price: $3.99 |
| 10 |
72-3690 |
DISCONTINUED Price: Call Us |
| 11 |
3217-6 |
NUT-HEX Price: $1.19 |
| 12 |
107-2918 |
DECAL-DANGER This part replaces 93-7806. Price: $30.43 |
| 13 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 13 |
532404484 |
DECAL.WHEEL.STRG.LGN.H Price: $7.99 |
| 14 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 14 |
532401407 |
DECAL.PANEL.SIDE.YTH24 Price: $5.99 |
| 15 |
106-5190 |
BATTERY This part replaces 63-9230. Price: $170.85 |
| 15 |
532423829 |
DECAL.WARNING.CUST.RESP.E85. This part replaces 532180941. Price: $14.99 |
| 16 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 16 |
532403378 |
DECAL.HOOD.LOGO.PLAQUE Price: $6.99 |
| 17 |
32103-2 |
NUT-WING Price: $0.68 |
| 17 |
532401695 |
DECAL.RPL.B&S.24HP.48" Price: $2.99 |
| 18 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 19 |
28-1280 |
DISCONTINUED Price: Call Us |
| 20 |
70-1180 |
DISCONTINUED Price: Call Us |
| 21 |
24-6420-03 |
HOLDDOWN-BATTERY This part replaces 24-6420. Price: $55.90 |
| 22 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 23 |
2412-61 |
TINNERMAN CLIP Price: $4.93 |
| 24 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 25 |
2412-4 |
CLAMP-R Price: $4.22 |
| 26 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 27 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 30 |
38-4550-03 |
COVER-INSTRUMENTS This part replaces 38-4550. Price: $448.71 |
| 31 |
95-2746 |
DECAL - STARTING INSTRUCT Price: $33.93 |
| 32 |
92-7800 |
BATTERY COVER ASM This part replaces 24-9740. Price: $65.49 |
| 33 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 34 |
93-6680 |
DECAL-DIESEL Price: $19.31 |
| 35 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 36 |
93-7822 |
DECAL-REFUELING Price: $17.17 |
| 37 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 38 |
2412-74 |
R-CLAMP Price: $2.37 |
| 39 |
32128-20 |
NUT-HF Price: $0.99 |
| 40 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 41 |
32128-33 |
NUT-HF Price: $0.25 |
| 42 |
93-3183 |
TOOL BOX ASM Price: $240.67 |
| 44 |
93-7830 |
DECAL-TORQUE Price: $23.91 |
| 45 |
68-8610-01 |
EXTENSION-FENDER This part replaces 68-8610. Price: $186.20 |
| 46 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 47 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 48 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 49 |
88-0070-01 |
PLATE-FLOOR This part replaces 88-0070. Price: $169.68 |
| 50 |
93-7839 |
DECAL-DANGER Price: $37.36 |
| 51 |
93-3185 |
COVER ASM Price: $144.25 |
| 52 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 53 |
18-2770 |
CABLE-GROUND Price: $47.33 |
| 54 |
92-7801 |
SHIELD-COVER, BATTERY Price: $12.83 |
| 55 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 56 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 58 |
93-7410-01 |
PANEL-FOOTREST This part replaces 93-7410. Price: $44.33 |
| 59 |
66-3200 |
TREAD-FOOTREST, LH Price: $7.38 |
| 60 |
93-7626-01 |
FENDER-RH This part replaces 93-7626. Price: $177.45 |
| 61 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 62 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 63 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 532405232 |
Manual, |
Owner's (Eng) Price: Call Us 532405232 |
| 532439882 |
PAD.FOOTREST.HUSQ.GT.LH.GREY |
This part replaces 532401771. Price: $5.99 532439882 |
| 532441542 |
PAD.FOOTREST.HUSQ.GT.RH |
This part replaces 532403773. Price: $9.99 532441542 |
| 581724801 |
DECAL.BYPASS.FENDER.CRD/LT/YT |
This part replaces 532166960. Price: $3.99 581724801 |
