| Ref | Part Number | Description |
|---|
| 1 |
76-1420 |
WHEEL-STEERING Price: $202.69 |
| 2 |
32121-111 |
PIN-ROLL Price: $2.39 |
| 3 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 4 |
94-4514 |
PIN-LOCK, TILT Price: $35.83 |
| 5 |
323-7 |
SCREW-HH This part replaces 322-43. Price: $0.65 |
| 6 |
88-8280 |
LEVER-ADJUSTMENT, STEERING Price: $32.15 |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
88-8530 |
BLOCK-LOCK, UPPER Price: $41.80 |
| 9 |
94-4513 |
RING-RETAINING Price: $0.95 |
| 10 |
85-9120 |
SPACER-PIVOT, TILT Price: $4.01 |
| 11 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 13 |
32121-112 |
SPIROL PIN 1/4" X 1.25" Price: $1.36 |
| 14 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
85-8970 |
DISCONTINUED Price: Call Us |
| 16 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 17 |
18-6380 |
PIN-ADJUSTMENT, STEERING Price: $12.89 |
| 18 |
2710-11 |
LINK-CHAIN Price: $5.68 |
| 19 |
85-8030 |
CHAIN Price: $60.23 |
| 20 |
85-9180 |
SPROCKET-STEERING Price: $56.99 |
| 21 |
256-287 |
BUSHING Price: $1.76 |
| 22 |
98-0996 |
STEERING SHFT KIT-SANDPRO This part replaces 85-9210. Price: $35.09 |
| 23 |
85-9200 |
KNUCKLE-STEERING Price: $100.34 |
| 24 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 25 |
88-8290 |
STEERING BRACKET ASM Price: $93.13 |
| 26 |
256-185 |
BUSHING Price: $19.18 |
| 27 |
85-9220 |
SHAFT-STEERING, UPPER Price: $42.03 |
| 28 |
3289-24 |
SCREW-HSFH Price: $9.00 |
| 29 |
88-8510 |
PIN-DOWEL Price: $1.70 |

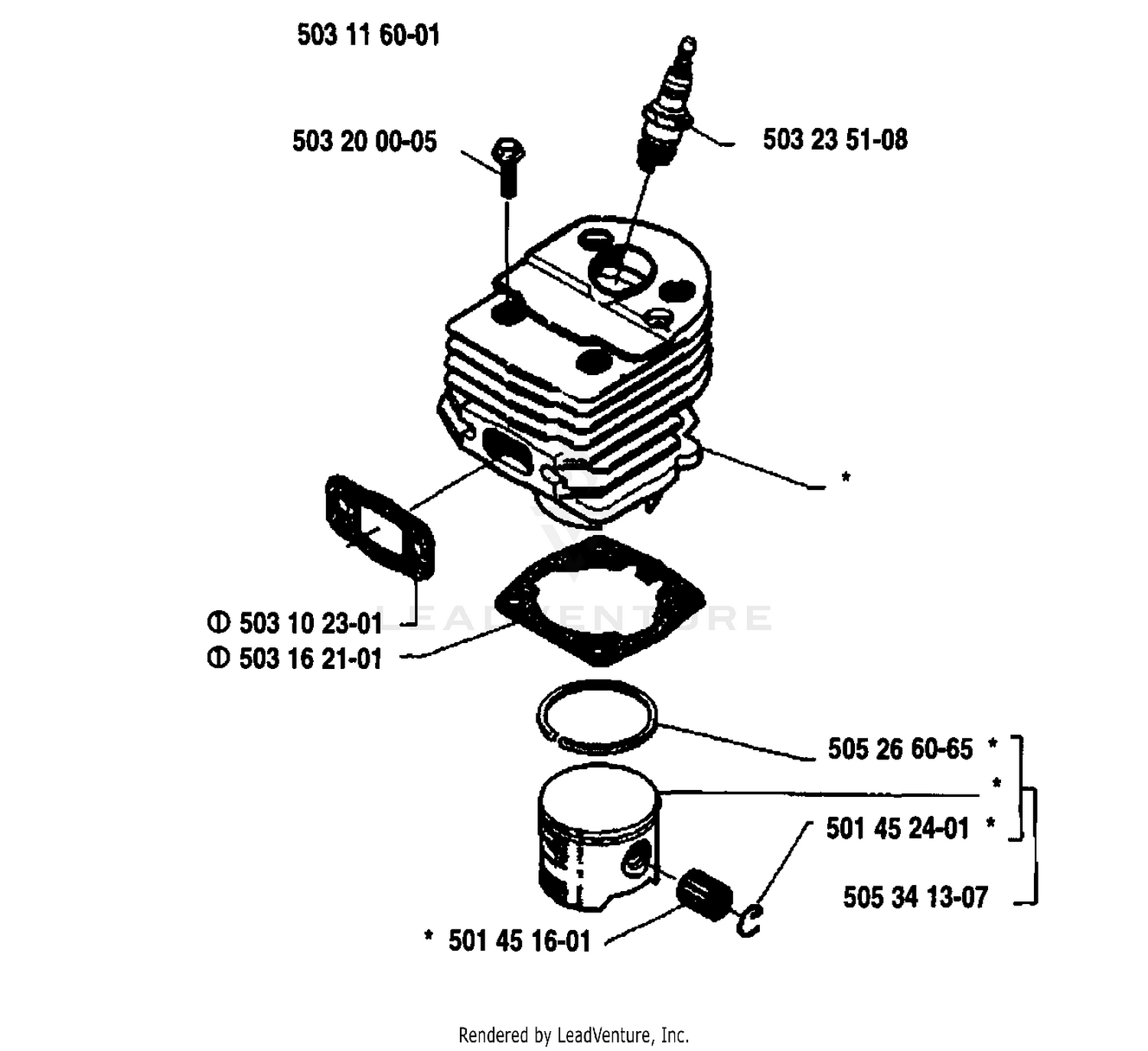

| 501452401 |
737441000 |
LOCKING RING This part replaces 501452401. Price: $2.99 |
| 503102301 |
503102301 |
GASKET Price: $6.99 |
| 503116001 |
503968471 |
CYLINDER This part replaces 503116001. Price: $349.99 |
| 503162101 |
503162103 |
GASKET This part replaces 503162101. Price: $6.99 |
| 503200005 |
503215325 |
SCREW This part replaces 503200005. Price: $3.99 |
| 503235108 |
503235111 |
SPARK PLUG M14X1.25 NGK BPMR7A This part replaces 503235108. Price: $4.99 |
| 505266065 |
503289010 |
PISTON RING This part replaces 505266065. Price: $17.99 |
| 505341307 |
503457701 |
PISTON This part replaces 505341307. Price: $58.15 |
