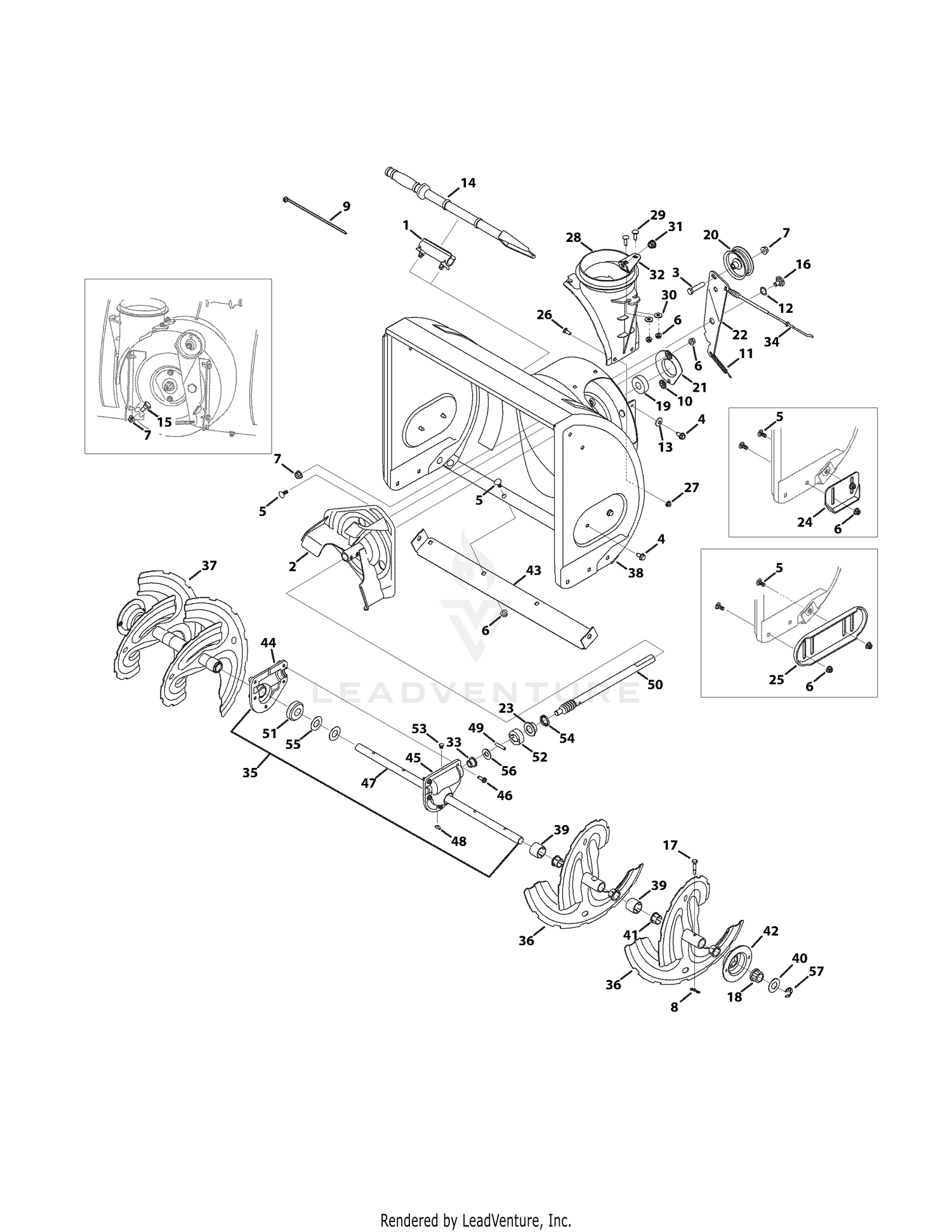

| Ref | Part Number | Description |
|---|
| 1 |
731-11421 |
Cleanout Tool Mount Price: $9.83 |
| 2 |
684-04057C-0637 |
IMPELLER ASSEMBLY-12" This part replaces 684-04057B-0637. Price: $64.81 |
| 3 |
710-0347 |
Hex Screw, 3/8-16 x 1.75 Price: $4.39 |
| 4 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 5 |
710-0451 |
Carriage Bolt, 5/16-18 x .750 Price: $3.53 |
| 6 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 7 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 8 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 9 |
725-0157 |
Cable Tie, 3/16 x .05 x 7.4 Price: $3.46 |
| 10 |
726-04012 |
Nut, Push-on, .25 Dia This part replaces 926-04012. Price: $6.20 |
| 11 |
732-04460 |
Extension Spring Price: $4.69 |
| 12 |
736-0174 |
Wave Washer, .625 x .885 x .015 Price: $5.94 |
| 13 |
736-0242 |
Bell Washer, .340 x .872 x .060 Price: $3.75 |
| 14 |
931-2643 |
Chute Cleanout Tool Price: $16.68 |
| 15 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 16 |
738-0281 |
Screw, Shoulder, .625 x .17, 3/8-16 This part replaces 938-0281. Price: $9.16 |
| 17 |
738-04124A |
Shear Pin, .25 x 1.50 Price: $1.56 |
| 18 |
741-05041 |
Hex Flange Bearing Price: $8.37 |
| 19 |
941-0309 |
Ball Bearing, .75 ID x 1.85 OD Price: $69.59 |
| 20 |
756-04224 |
Idler Pulley, 2.75 OD Price: $24.80 |
| 21 |
790-00075B |
BEARING HOUSING 1.85 ID This part replaces 790-00075. Price: $5.66 |
| 22 |
790-00080D |
AUGER IDLER BRACKET This part replaces 790-00080C-0637. Price: $25.44 |
| 23 |
741-0662 |
Flange Bearing, .75 ID x 1.0 OD x .59 Price: $9.52 |
| 24 |
784-5580-0637 |
Skid Shoe Price: $20.61 |
| 25 |
790-00091-0637 |
Skid Shoe, Deluxe This part replaces 790-00091-0638. Price: $26.92 |
| 26 |
710-0703 |
Carriage Screw, 1/4-20 x .75 Price: $3.66 |
| 27 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 28 |
731-04705D |
CHUTE ADAPTER Price: $23.30 |
| 29 |
710-0276 |
Carriage Screw, 5/16-18 x 1.00 Price: $3.68 |
| 30 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 31 |
941-0475 |
Plastic Bushing, .380 ID Price: $3.74 |
| 32 |
784-5647-0637 |
Chute Crank Bracket Price: $12.51 |
| 33 |
741-0663 |
Flange Bearing, .50 ID x .75 OD x .59 Price: $8.86 |
| 34 |
946-04230B |
AUGER DRIVE CABLE 47.48" This part replaces 946-04230A. Price: $21.53 |
| 35 |
918-04172C |
Gearbox Assembly, 26" Price: $381.46 |
| 36 |
684-04107A-0637 |
AUGER ASSEMBLY (LH) This part replaces 684-04107A-0638. Price: $78.60 |
| 37 |
684-04108A-0637 |
AUGER ASSEMBLY (RH) This part replaces 684-04108A-0638. Price: $83.13 |
| 39 |
731-04870 |
Spacer, 1.2500 x .75 ID x 1.00 Price: $4.06 |
| 40 |
736-0188 |
Flat Washer, .76 x 1.49 x .06 Price: $3.75 |
| 41 |
741-0493C |
FLANGE BUSHING This part replaces 741-0493A. Price: $3.86 |
| 42 |
790-00534-0637 |
Hex Bearing Housing Price: $11.83 |
| 43 |
790-00121-0637 |
Shave Plate, 26" This part replaces 790-00121-0638. Price: $33.66 |
| 44 |
918-0123A |
Housing Assembly, RH Price: $46.04 |
| 45 |
918-0124A |
Housing Assembly, LH Price: $45.91 |
| 46 |
710-0642 |
Hex Washer Screw, 1/4-20 x .750 Price: $4.05 |
| 47 |
711-06144 |
Auger Axle, 26" Price: $72.65 |
| 48 |
914-0161 |
Hi-Pro Key Price: $3.82 |
| 49 |
715-04021 |
Dowel Pin, .25 OD x 1.25 LG Price: $3.68 |
| 50 |
917-04126 |
Worm Shaft, .75 OD Price: $69.83 |
| 51 |
917-04861 |
Worm Gear 20 T Price: $37.82 |
| 52 |
718-04071 |
Thrust Collar, .756 ID x .600 Price: $6.73 |
| 53 |
721-0325 |
Plug, 1/4 x .437 Price: $3.82 |
| 54 |
721-0327 |
Oil Seal, .75 x 1.131 x .188 Price: $6.10 |
| 55 |
736-0351 |
Washer, Flat, .760 ID x 1.5 OD This part replaces 936-0351. Price: $3.93 |
| 56 |
736-3084 |
Flat Washer, .51 x 1.12 x .06 Price: $4.39 |
