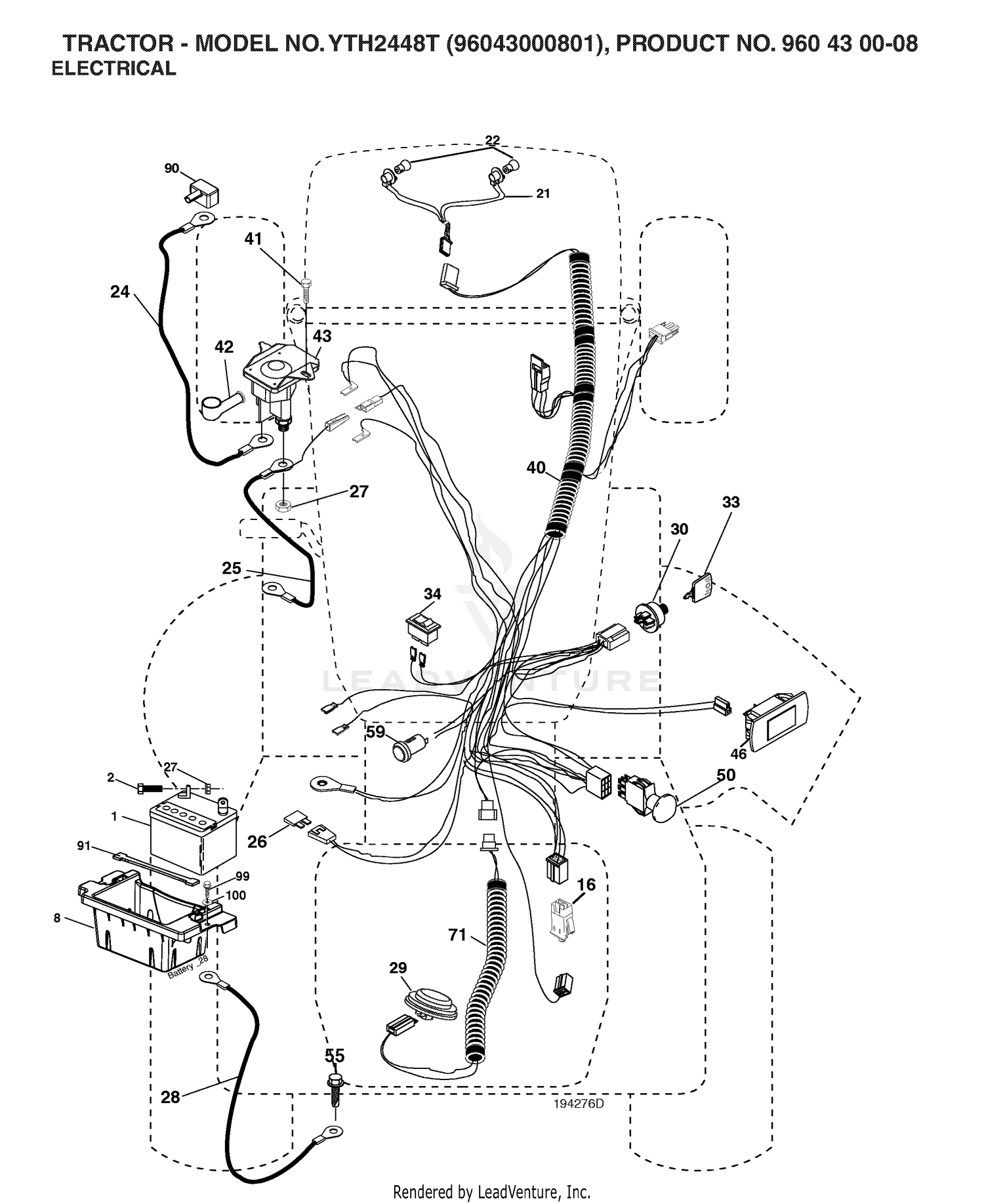

| Ref | Part Number | Description |
|---|
| 1 |
120-4155 |
PANEL ASM Price: $321.47 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
108-7604 |
COVER-LH Price: $55.56 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
108-7605 |
COVER-RH Price: $55.56 |
| 4 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 5 |
3250-22 |
SCREW-PPH Price: $4.09 |
| 6 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 7 |
115-8849-03 |
PLATE-COVER Price: $23.24 |
| 8 |
3234-21 |
SCREW-HHF Price: $2.19 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 10 |
94-2413 |
NUT-U Price: $1.79 |
| 11 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 12 |
125-4646-03 |
PANEL-CONTROL Price: $92.78 |
| 14 |
108-7602 |
REST-ARM Price: $158.43 |
| 15 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 16 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 18 |
121-5159 |
IGNITION SWITCH ASM Price: $84.21 |
| 21 |
120-6310 |
LCD DISPLAY ASM Price: $584.72 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
532198893 |
CABLE.START.RED.17.5". Price: $11.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
114-3329 |
SWITCH-ROCKER Price: $206.34 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 29 |
95-8999 |
SWITCH Price: $42.14 |
| 30 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
161-8355 |
CUP HOLDER ASM This part replaces 117-2378. Price: $12.36 |
| 32 |
107069 |
CLIP Price: $1.79 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 33 |
99-7411 |
POINT-POWER Price: $30.69 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 34 |
99-7416 |
CAP Price: $6.64 |
| 35 |
93-9999 |
SWITCH-PTO Price: $42.99 |
| 36 |
110-0542 |
SPACER-FLANGE Price: $4.94 |
| 37 |
100-1535 |
SWITCH Price: $84.91 |
| 38 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 40 |
584452601 |
HARNESS.IGN.DASH.HUQ/PRED KIT This part replaces 532401105. Price: $49.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 90 |
532400724 |
COVER.TERMINAL.BATTERY Price: $3.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
