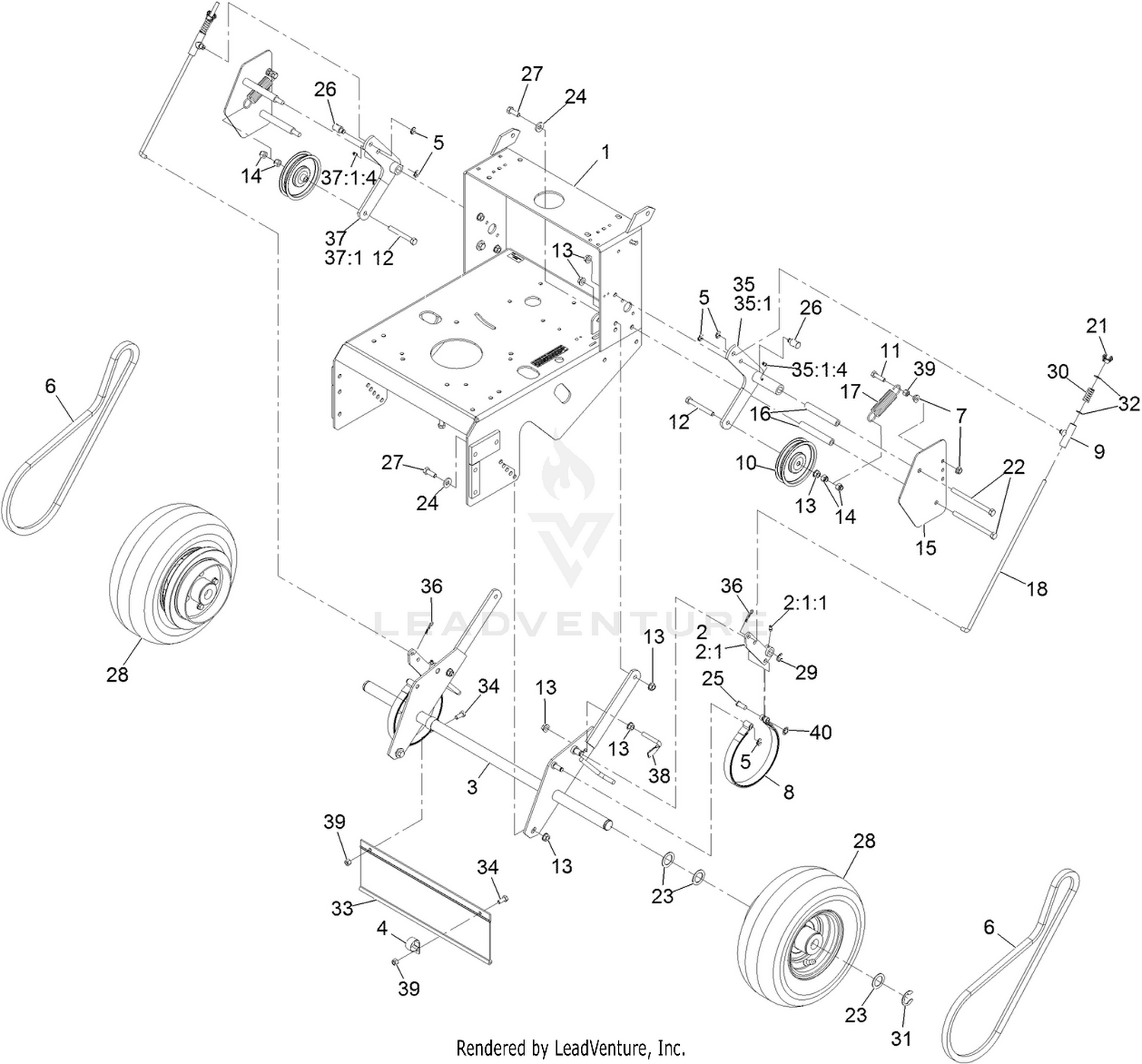

| Ref | Part Number | Description |
|---|
| 1 |
116-6131 |
ASM, METRO ENGINE DECK W/DECALS Price: $830.99 |
| 2 |
103-1611-03 |
ARM-BRAKE Price: $68.99 |
| 3 |
1-322141-03 |
AXLE Price: $443.99 |
| 4 |
2412-104 |
CLAMP-R Price: $6.59 |
| 5 |
32151-47 |
RING-RETAINING Price: $2.49 |
| 6 |
1-323344 |
BELT-WHEEL, DRIVE Price: $64.99 |
| 7 |
32128-20 |
NUT-HF Price: $0.99 |
| 8 |
1-323262 |
BAND-BRAKE Price: $83.99 |
| 9 |
110-5866 |
SWIVEL-BRAKE Price: $23.99 |
| 10 |
1-323352 |
IDLER-WHEEL, DRIVE Price: $24.99 |
| 11 |
145-7145 |
SCREW-HSH,LOCK This part replaces 116-3515. Price: $3.09 |
| 12 |
99-8664 |
SCREW-HH Price: $1.49 |
| 13 |
3290-357 |
NUT-HHF, WHIZ Price: $0.79 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 15 |
1-323287-01 |
SHIELD-WHEEL, DRIVE Price: $45.99 |
| 16 |
1-323283 |
SPACER-SHIELD Price: $7.99 |
| 17 |
1-603402 |
SPRING-EXTENSION Price: $7.59 |
| 18 |
1-323548 |
LINKAGE-BRAKE Price: $25.99 |
| 21 |
1-513959 |
WINGNUT-NYLOCK Price: $5.89 |
| 22 |
323-39 |
SCREW-HH Price: $10.99 |
| 24 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 25 |
1-323307 |
PIN-CLEVIS Price: $4.79 |
| 26 |
103-1864 |
SWIVEL-LEVER, DRIVE Price: $10.99 |
| 27 |
323-6 |
SCREW-HH Price: $2.29 |
| 28 |
126-4481 |
DRIVE WHEEL ASM Price: $247.99 |
| 29 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $1.19 |
| 30 |
1-323245 |
SPRING-COMPRESSION Price: $6.09 |
| 31 |
1-808519 |
RING-SNAP Price: $2.29 |
| 32 |
3256-23 |
WASHER-PLAIN Price: $1.99 |
| 33 |
98-3259 |
SHIELD-TRAILING Price: $67.99 |
| 34 |
322-3 |
SCREW-HH Price: $0.79 |
| 35 |
116-7542-03 |
ARM-IDLER, LH Price: $77.99 |
| 36 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 37 |
116-7543-03 |
ARM-IDLER, RH Price: $77.99 |
| 38 |
1-603430 |
SCRAPER Price: $18.99 |
| 39 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
