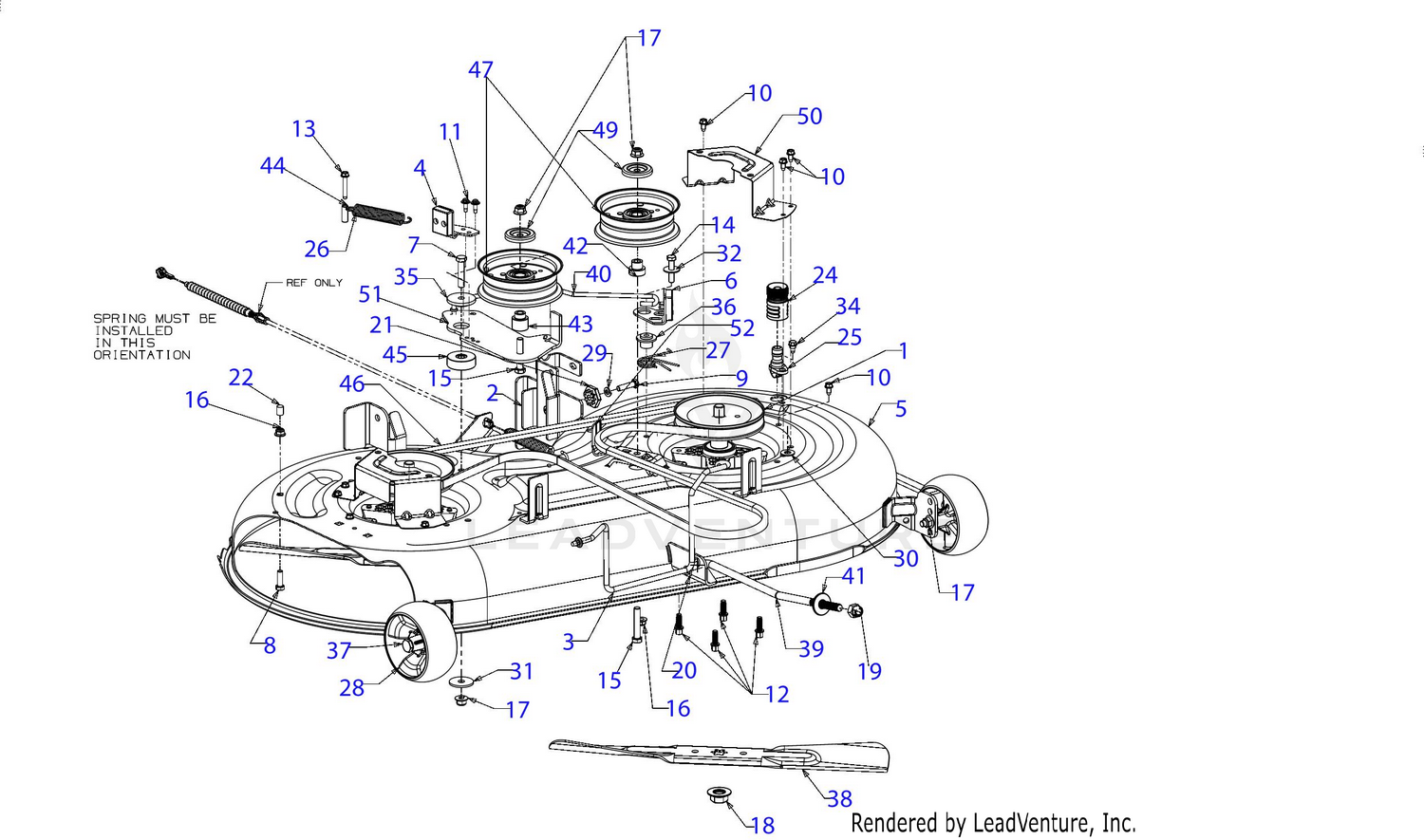

| Ref | Part Number | Description |
|---|
| 3 |
747-04857 |
BELT KEEPER ROD Price: $19.55 |
| 4 |
983-05182B |
DECK BRAKE ASSEMBLY (RH) This part replaces 983-05182A. Price: $87.42 |
| 6 |
983-05396 |
DECK BRAKE ASSEMBLY Price: $88.32 |
| 7 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 8 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 9 |
710-0528 |
SCREW 5/16-18 x 1.25 GR5 Price: $3.90 |
| 10 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 11 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 12 |
710-06322 |
SCREW 5/16-18 X .875 Price: $4.55 |
| 13 |
710-0778 |
SCREW 1/4-20 x 1.50" Price: $3.90 |
| 14 |
710-0805A |
SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 15 |
710-3096 |
SCREW 3/8-16 x 2.0 GR 8 Price: $7.03 |
| 16 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 17 |
712-04065 |
NUT Price: $3.68 |
| 18 |
712-0417A |
HEX NUT Price: $6.50 |
| 19 |
712-04243 |
NUT Price: $3.52 |
| 20 |
714-04043 |
PIN:COTTER Price: $4.24 |
| 22 |
720-05010 |
VINYL CAP Price: $3.70 |
| 24 |
921-04041 |
WATER NOZZLE Price: $20.19 |
| 25 |
731-07487 |
DECK WASH NOZZLE Price: $3.86 |
| 26 |
732-04629 |
EXTENSION SPRING Price: $25.15 |
| 27 |
732-05151A |
TORSION SPRING Price: $3.70 |
| 28 |
734-04155 |
DECK WHEEL Price: $19.04 |
| 29 |
936-0119 |
LOCK WASHER 5/16 Price: $4.29 |
| 30 |
736-0300 |
Fl-Wash. .385" I.D. This part replaces 936-0300. Price: $3.93 |
| 31 |
736-3039 |
Flat Washer, .407 x .812 x .135 This part replaces 936-3039. Price: $4.42 |
| 32 |
736-3078 |
FLAT WASHER 344X1.00 Price: $3.95 |
| 34 |
738-04278 |
SHOULDER SCREW 1/4-20X.50 19"PSH Price: $5.99 |
| 35 |
738-05082 |
SHOULDER SPACER Price: $7.32 |
| 36 |
738-05272 |
DOUBLE SHOULDER SPACER .750 X .135 Price: $6.24 |
| 37 |
938-3056 |
SHOULDER BOLT Price: $8.53 |
| 39 |
747-05141B |
DECK FRONT LIFT ROD Price: $19.44 |
| 40 |
747-06538 |
DECK BRAKE ROD Price: $12.90 |
| 41 |
748-04069A |
DECK LIFT PIVOT CUP Price: $4.93 |
| 42 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 43 |
748-05037B |
SHOULDER SPACER Price: $4.64 |
| 44 |
750-0566A |
SPACER Price: $9.17 |
| 45 |
750-06184 |
SPACER .385ID x 1.75OD x .585THK Price: $10.02 |
| 46 |
954-04060C |
V-BELT A x 96.5 Price: $46.63 |
| 47 |
756-05034A |
IDLER PULLEY 4.50" DIA Price: $40.14 |
| 49 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
| 51 |
783-08654C |
DECK IDLER BRACKET Price: $62.71 |
