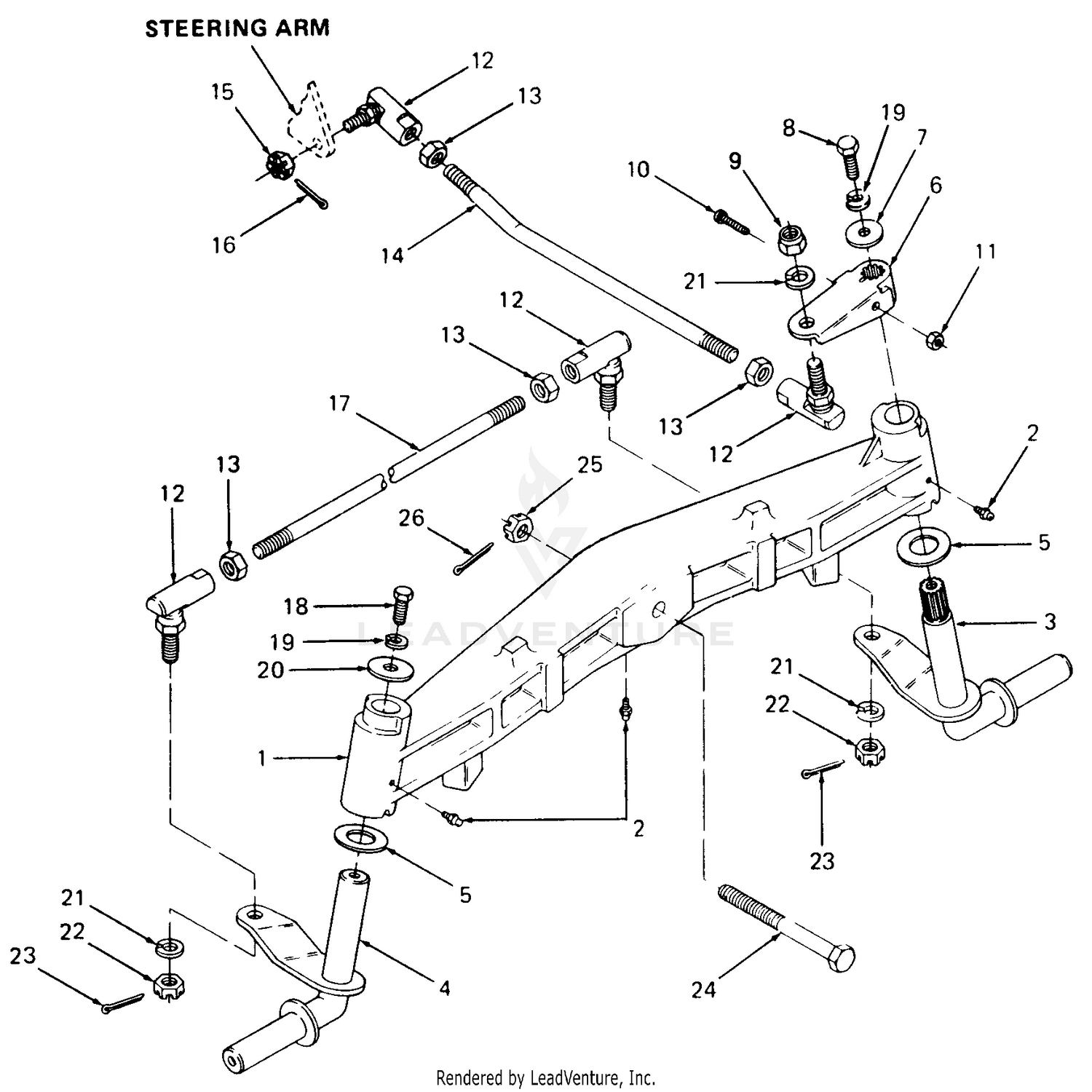

| Ref | Part Number | Description |
|---|
| 1 |
719-3100 |
FRONT AXLE Not Available Price: |
| 1 |
76-6930 |
SHAFT-DRIVE Price: $1,328.23 |
| 2 |
100-2551 |
BACKPLATE This part replaces 94-3000. Price: $842.23 |
| 2 |
937-3000 |
Grease Fitting This part replaces 7373000. Price: $4.04 |
| 3 |
603-0007 |
STEERING KNUCKLE (LH) Not Available Price: |
| 3 |
94-3001 |
HOUSING ASM Price: $694.21 |
| 4 |
603-0006 |
STEERING KNUCKLE (RH) Not Available Price: |
| 4 |
76-6910 |
ROTATING KIT Price: $2,143.15 |
| 5 |
736-0163 |
Washer, Thrust, 1.03 X 1.62 X .03 Thk HDN Price: $4.05 |
| 5 |
76-6970 |
INSERT-PLATE, CAM Price: $140.84 |
| 6 |
703-1884 |
STEERING ARM Not Available Price: |
| 6 |
76-7010 |
RING-RETAINING Price: $3.66 |
| 7 |
736-0247 |
Washer, Flat, .406 X 1.25 X .157 Thk Price: $8.82 |
| 7 |
94-3002 |
SCREW-CAP Price: $7.19 |
| 8 |
710-1039 |
Screw, Hex Cap 3/8-24 x 1.0 GR8 This part replaces 710-0152. Price: $4.02 |
| 8 |
76-7020 |
SPACER Price: $23.61 |
| 9 |
712-3053 |
L-NUT 1/2-20 Not Available Price: |
| 9 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 10 |
710-3210 |
SCREW-SOCKET HD 1/4-20X1.0L Not Available Price: |
| 10 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 11 |
76-6980 |
O-RING Price: $11.28 |
| 11 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 12 |
923-3015 |
BALL JOINT Not Available This part replaces 723-3015. Price: |
| 12 |
94-3003 |
PLATE-VALVE Price: $515.64 |
| 13 |
712-3029 |
Nut, Hex Jam, 1/2-20 GR5 Price: $6.01 |
| 14 |
747-3162 |
DRAG LINK Not Available Price: |
| 15 |
712-3012A |
HEX NUT This part replaces 712-3012. Price: $11.49 |
| 16 |
714-3004 |
Pin, Cotter, 3/32 Dia X 1.25 Lg Price: $4.20 |
| 17 |
747-3139 |
TIE ROD Not Available Price: |
| 18 |
710-1039 |
Screw, Hex Cap 3/8-24 x 1.0 GR8 This part replaces 710-0152. Price: $4.02 |
| 19 |
736-0169 |
Washer, Lock, 3/8 Price: $3.33 |
| 20 |
736-3039 |
Washer, Flat, .406 X 1.5 X .12 Thk Price: $4.42 |
| 21 |
736-0921 |
Washer, Lock, 1/2 Price: $3.90 |
| 22 |
712-3012A |
HEX NUT This part replaces 712-3012. Price: $11.49 |
| 23 |
714-3004 |
Pin, Cotter, 3/32 Dia X 1.25 Lg Price: $4.20 |
| 24 |
710-3019 |
BOLT-PIVOT 3/4-10 x 5.0 GR5 W Not Available Price: |
| 25 |
712-3011 |
HEX NUT Not Available Price: |
