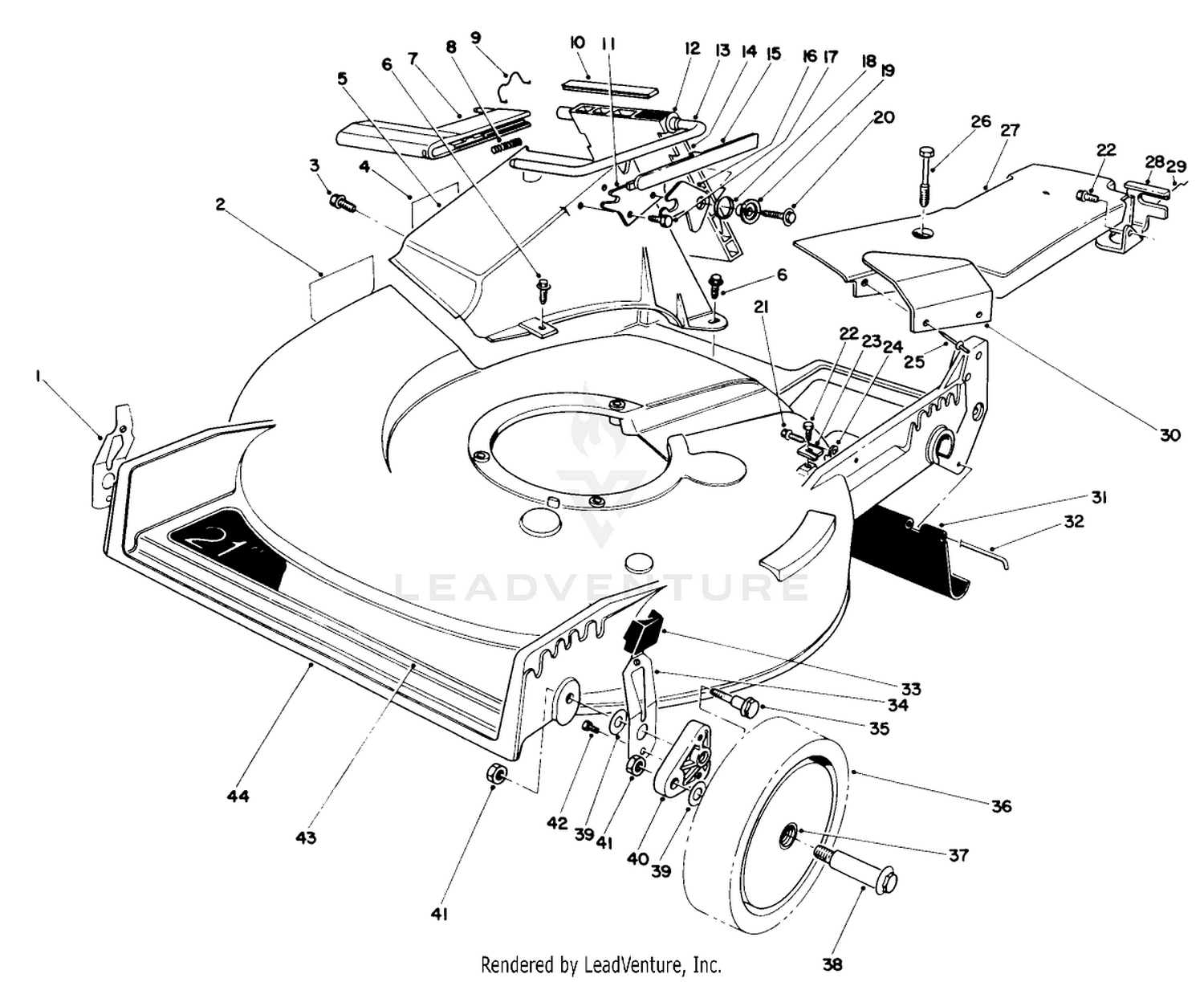

| Ref | Part Number | Description |
|---|
| 1 |
71-0561 |
RH SPRING ARM ASM This part replaces 71-0560. Price: $11.41 |
| 2 |
56-6270 |
DECAL-DANGER Price: $5.35 |
| 3 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 4 |
62-4060 |
DECAL - DANGER Price: Call Us |
| 5 |
11-6239 |
DISCONTINUED Price: Call Us |
| 6 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 7 |
46-3520 |
Handle-Door Price: Call Us |
| 8 |
46-7060 |
Spring Price: Call Us |
| 9 |
47-5840 |
DOOR RET SPRING Price: $4.30 |
| 10 |
46-6821 |
Cover-Door Price: Call Us |
| 11 |
23-1040 |
DOOR LATCH PLATE Price: $16.08 |
| 12 |
23-0880 |
BUSHING-NYLON Price: Call Us |
| 13 |
46-3530 |
DISCONTINUED Price: Call Us |
| 14 |
46-3511 |
Door-Discharge Price: Call Us |
| 15 |
49-4170 |
Cover-Handle Price: Call Us |
| 16 |
42-4010 |
SAFETY LATCH Price: Call Us |
| 17 |
46-8090 |
SCREW-PLASTITE Price: $1.84 |
| 18 |
33-4860 |
TORSION SPRING Price: $40.42 |
| 19 |
43-4840 |
DOOR SPACER Price: $4.83 |
| 20 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 21 |
12-5450 |
SCREW Price: $7.99 |
| 22 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 23 |
62-3720 |
CLAMP-CABLE Price: $1.31 |
| 24 |
2412-83 |
CLAMP-CABLE Price: $9.85 |
| 25 |
3295-35 |
RIVET-HEAD, FLAT Price: $1.31 |
| 26 |
37-7260 |
SCREW-HHFTF Price: $3.64 |
| 27 |
52-7406 |
DISCONTINUED Price: Call Us |
| 28 |
82-5680-03 |
BRACKET-TRACTION, ADJ. This part replaces 62-3940. Price: $7.85 |
| 29 |
46-7030 |
RETAINER-CABLE Price: $3.83 |
| 30 |
77-0280 |
DISCONTINUED Price: Call Us |
| 31 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $18.32 |
| 32 |
33-3208 |
ROD-SHIELD Price: $9.44 |
| 33 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 34 |
71-0570 |
LH SPRING ARM ASSEMBLY Price: $14.30 |
| 35 |
66-0561 |
SCREW-SHOULDER Price: $5.49 |
| 36 |
51-2751 |
WHEEL AND TIRE ASM This part replaces 11-9509. Price: $21.88 |
| 37 |
27-6250 |
BUSHING Price: $2.17 |
| 38 |
27-6231 |
WHEEL BOLT Price: $3.28 |
| 39 |
40-1940 |
WASHER Price: $1.59 |
| 40 |
66-0580 |
ARM-PIVOT, FRONT Price: $11.73 |
| 41 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 42 |
32144-85 |
SCREW-HWH Price: $1.59 |
| 43 |
75-9450 |
DISCONTINUED Price: Call Us |
| 44 |
14-3489 |
HOUSING W/DECAL This part replaces 13-4649. Price: $467.97 |
