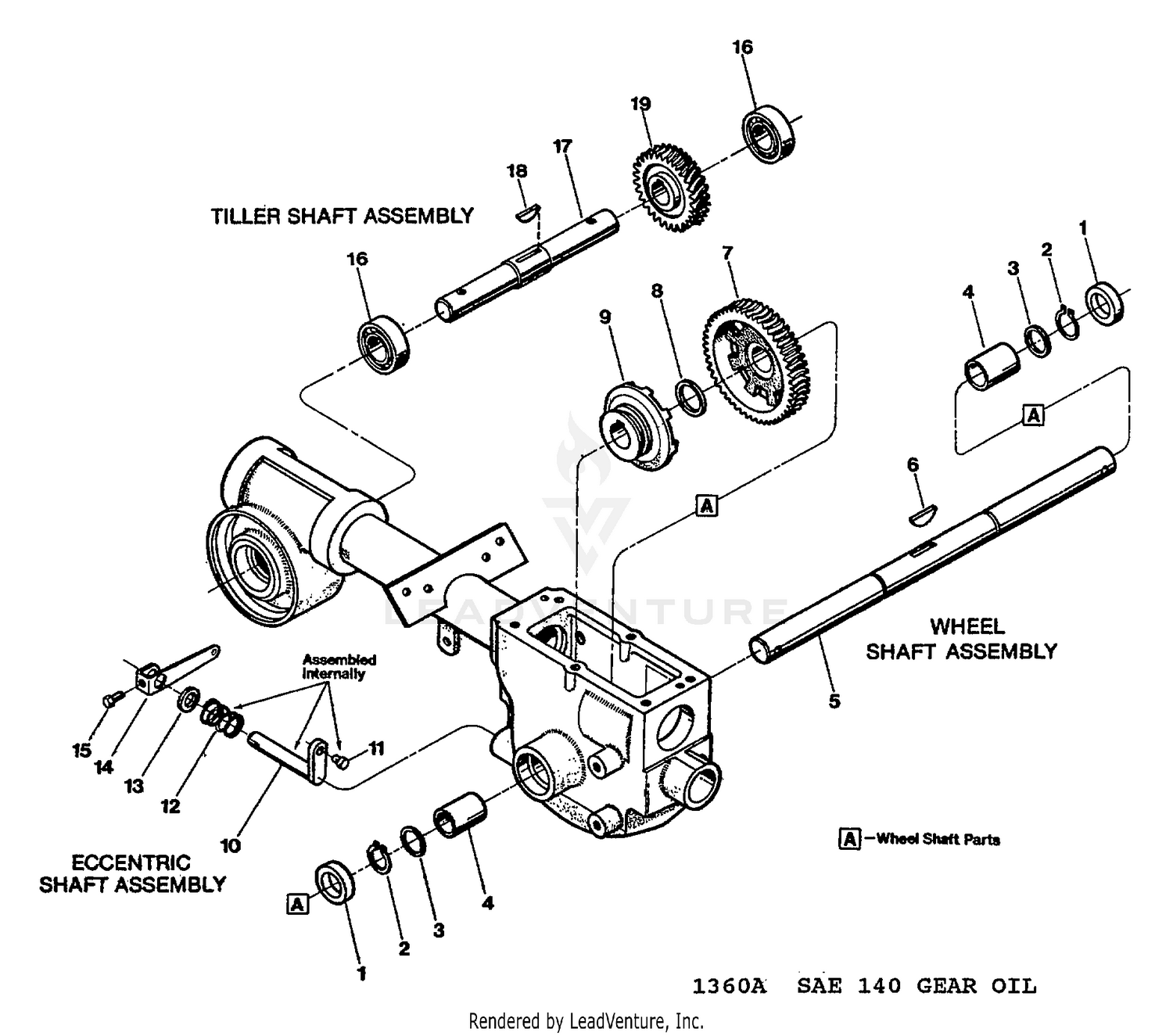

WHEEL & TILLER SHAFT ASSEMBLY

WHEEL & TILLER SHAFT ASSEMBLY

Parts (18)

RefPart NumberDescription
1 921-04031 Oil Seal, 1.0 x 1.499 This part replaces 9621. Price: $9.58
2 716-04104 Retaining Ring This part replaces 9511. Price: $3.85
4 941-04300 Bushing, 1.25 x 1 x .005 x 1.5 This part replaces 1086. Price: $15.25
5 GW-20711 ASSM-WHEEL SHAFT W Not Available This part replaces 20711. Price:
6 GW-9373 Key-Hi-Pro, 1/4 x 1-5/16 This part replaces 9373. Price: $8.81
7 20535 GEAR-WORM 46 TEETH MACH Price: Call Us
8 GW-9935 Shim-1.016 I.D. x 1.468 O.D. x .062 thick This part replaces 9935. Price: $3.15
9 GW-20712 Clutch-Wheel drive, cast iron This part replaces 20712. Price: $78.19
10 611-04002 Eccentric Shaft This part replaces 20879. Price: $71.52
11 738-04448 PIN This part replaces 1442. Price: $7.14
12 GW-9055 Spring Not Available This part replaces 9055. Price:
13 921-04034 Oil Seal, .625 x 1.0 This part replaces 9622. Price: $9.37
14 20757 ECCENTRIC SHAFT LEVER Not Available Price:
15 9743 SCR-HH 1/4-20X.5 GR5 YEL Price: Call Us
16 941-3037 PTO SHAFT BALL BEARING This part replaces 97074. Price: $38.73
17 GW-20896 Tiller Shaft This part replaces 20896. Price: $97.12
18 GW-1104 Key-Woodruff, 1/4 x 1-1/4 This part replaces 1104. Price: $8.32
19 20776 GEAR-TILLER MACH Price: Call Us
