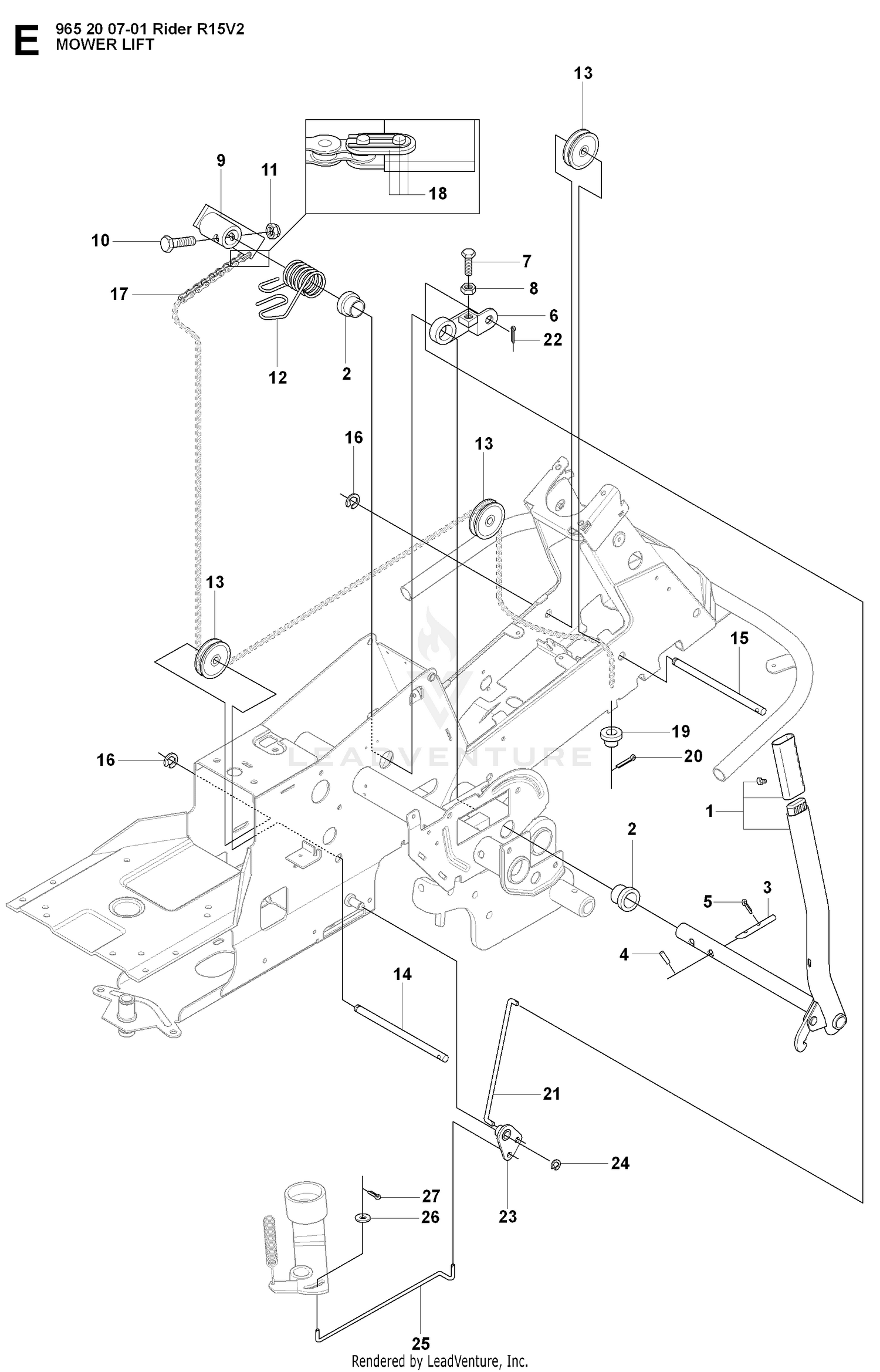

MOWER LIFT / DECK LIFT
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-5255 | BUMPER-BASE, SEAT Price: $29.06 |
| 1 | 501018602 | LIFTING LEVER ASSY This part replaces 501018601. Price: $54.99 |
| 2 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 2 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 3 | 3231-27 | SCREW-CARR Price: $0.54 |
| 3 | 525406601 | PIN This part replaces 506905301. Price: $7.99 |
| 4 | 283-83 | PIN-CLEVIS Price: $9.52 |
| 5 | 110-8971 | LATCH Price: $15.79 |
| 5 | 721618301 | Split Pin Price: $1.99 |
| 6 | 1-806003 | PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 6 | 506784301 | LEVER CLUTCH Price: $29.99 |
| 7 | 725249751 | SCREW Price: $4.99 |
| 7 | 98-0917 | ROD-PROP Price: $51.33 |
| 8 | 108-1757 | COVER-SEATBASE Price: $318.43 |
| 8 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 9 | 125-2122-03 | SEAT BASE ASM Price: $449.44 |
| 9 | 506905401 | Lever Price: $47.37 |
| 10 | 725254251 | Screw Price: $4.99 |
| 10 | 99-7411 | POINT-POWER Price: $30.69 |
| 11 | 732252201 | Nut Price: $2.65 |
| 11 | 99-7416 | CAP Price: $6.64 |
| 12 | 3272-11 | PIN-COTTER Price: $0.99 |
| 12 | 506916801 | SPRING Price: $7.99 |
| 13 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 13 | 506905601 | PULLEY Price: $14.99 |
| 14 | 125-2121-03 | HINGE-SEATBASE Price: $45.67 |
| 14 | 506905701 | SHAFT Price: $18.26 |
| 15 | 104-4821 | SPRING-TORSION Price: $6.26 |
| 15 | 506905702 | SHAFT Price: $19.99 |
| 16 | 3272-6 | PIN-COTTER Price: $0.25 |
| 16 | 735311820 | Lock Ring Price: $1.99 |
| 17 | 506554607 | CHAIN Price: $37.99 |
| 17 | 94-3829 | PIN-CLEVIS Price: $2.10 |
| 18 | 3256-2 | WASHER-FLAT Price: $0.39 |
| 18 | 506554701 | LINK Price: $4.99 |
| 19 | 240-12 | GROMMET Price: $28.58 |
| 19 | 506905901 | BUSHING Price: $20.99 |
| 20 | 127-2711-03 | BRACKET-HARNESS Price: $28.84 |
| 20 | 721618701 | COTTER PIN Price: $3.99 |
| 21 | 3234-13 | SCREW-HHF Price: $0.77 |
| 21 | 544456901 | CONNECTION ROD Price: $8.99 |
| 22 | 3296-16 | NUT-LOCK, NI Price: $1.39 |
| 22 | 721618301 | Split Pin Price: $1.99 |
| 23 | 544378601 | LINK Price: $7.99 |
| 24 | 735311420 | RETAINING RING Price: $2.99 |
| 25 | 544448801 | CONNECTION ROD Price: $8.99 |
| 26 | 734116441 | SPACER Price: $3.99 |
| 27 | 721618301 | Split Pin Price: $1.99 |
