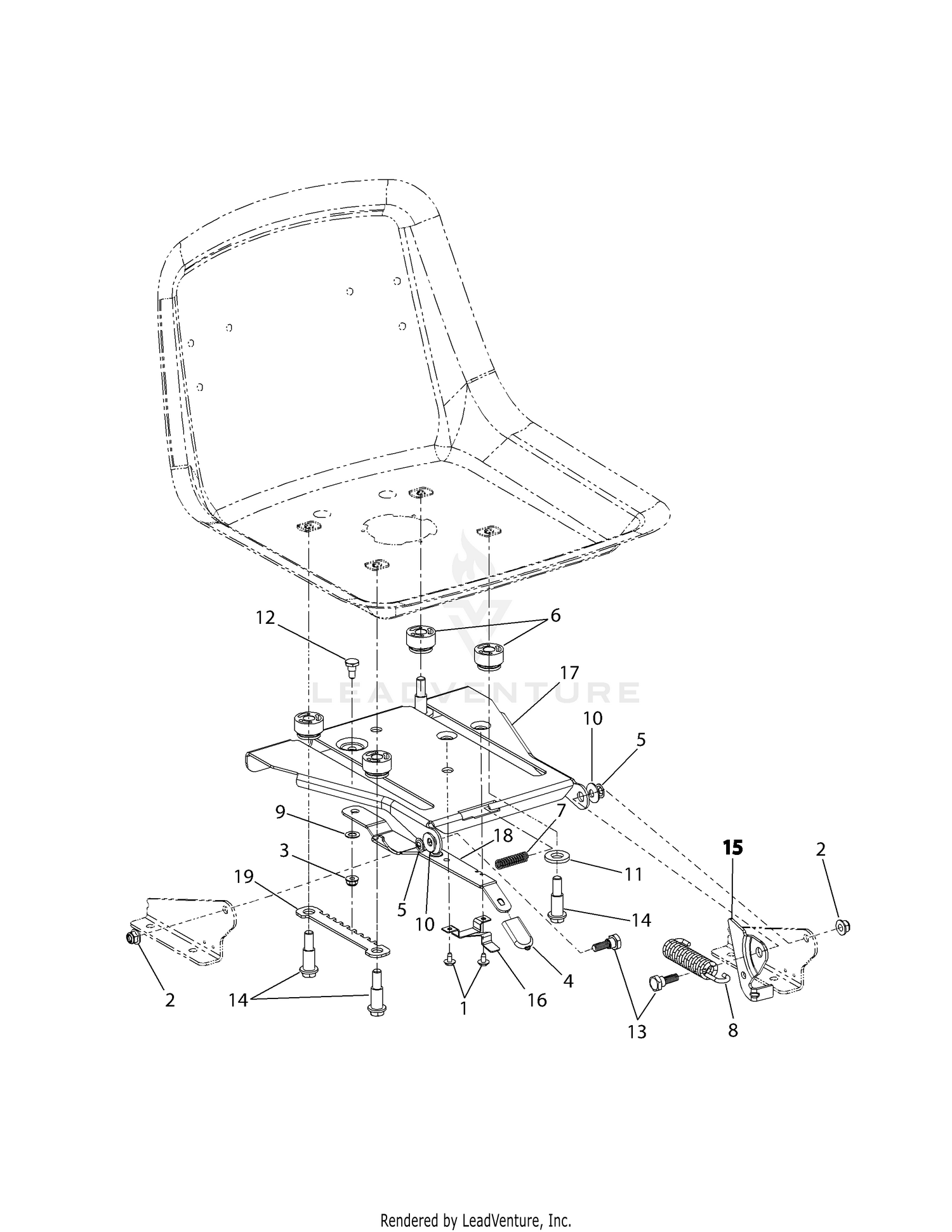

| Ref | Part Number | Description |
|---|
| 1 |
710-1268 |
Screw, Hx. Wash. Hd. Tapp #10-16 x .375 Price: $3.90 |
| 2 |
712-04063 |
Nut, Hx Insert Flange Lck, 5/16-18 GrF Price: $3.56 |
| 3 |
712-04064 |
Nut, Hx Insert Flnge Lck, 1/4-20 GrF Price: $3.64 |
| 4 |
720-0309A |
Grip, Seat Adjustment Price: $8.22 |
| 5 |
726-0201 |
Nut, Speed, .3125 Price: $6.01 |
| 6 |
731-04074 |
Spacer, Seat Adjustment Price: $6.89 |
| 7 |
732-0499 |
Spring, Compression, .41 x 1.5 Price: $8.24 |
| 8 |
732-1184 |
Spring, Extension, .84 Dia. x 4.6 Price: $10.23 |
| 9 |
736-0204 |
Washer, Flat, .344 x .62 x .033 Price: $3.89 |
| 10 |
736-0242 |
Washer, Belleville, .34 x .872 x .06 Price: $3.75 |
| 11 |
736-3019 |
Washer, Flat, .531 x 1.062 x .134 HT Price: $5.45 |
| 12 |
738-0137A |
Screw, Shoulder, .34 x .285:1/4-20 Price: $9.83 |
| 13 |
738-0296 |
Screw, Shoulder, .437 x .268:5/16-18 Price: $3.93 |
| 14 |
738-0966A |
Screw, Shoulder, .5 x .925:3/8-16 Price: $4.08 |
| 15 |
783-0209D |
Bracket, Seat Lift Price: $14.21 |
| 16 |
783-0611 |
Stop, Seat Adjustment Price: $9.14 |
| 17 |
783-0738D |
SEAT PIVOT BRACKET Not Available Price: |
| 18 |
783-0739A-0637 |
SEAT ADJUSTMENT LEVER Not Available This part replaces 783-0739A. Price: |
