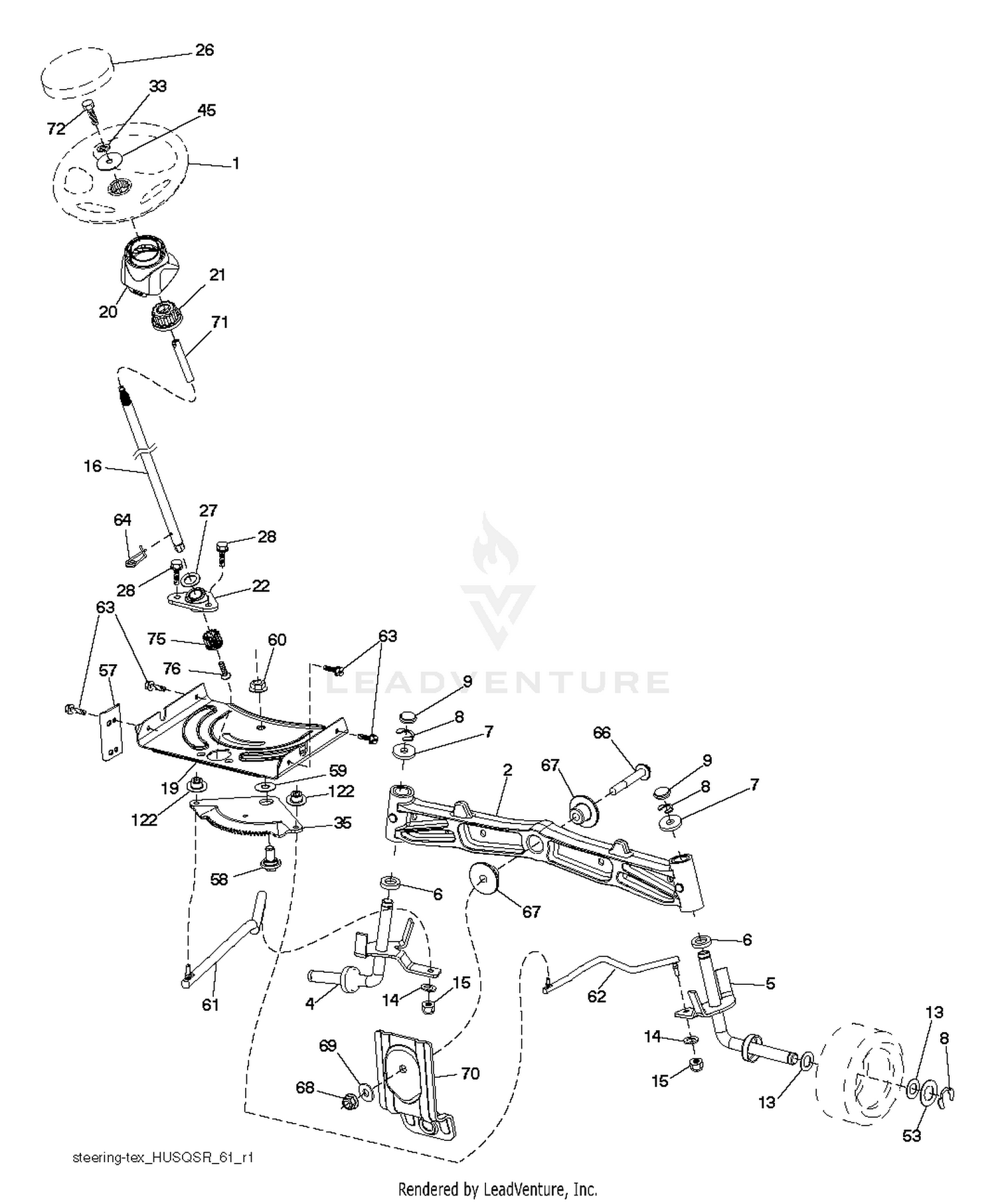

| Ref | Part Number | Description |
|---|
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 1 |
69-2110 |
COUPLING Price: $207.41 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 2 |
69-2170 |
ADAPTER SECTION ASM Price: $910.48 |
| 3 |
59-7990 |
SEAL Price: $14.58 |
| 4 |
59-8470 |
RETAINER Price: $18.19 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 5 |
69-2070 |
PLATE-FLEX Price: $311.23 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
69-2200 |
O-RING Price: $17.77 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 7 |
69-2080 |
SECTION-CENTER Price: $700.92 |
| 8 |
69-2090 |
GEAR-DRIVE, REAR Price: $897.49 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
59-8600 |
GEAR Price: $470.56 |
| 10 |
69-2120 |
O-RING Price: $28.48 |
| 11 |
69-2100 |
REAR COVER ASM Price: $1,088.03 |
| 12 |
3253-6 |
WASHER-LOCK This part replaces 59-7590. Price: $0.39 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 13 |
69-2150 |
CAPSCREW Price: $20.18 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 14 |
69-2140 |
CAPSCREW Price: $13.36 |
| 15 |
69-2200 |
O-RING This part replaces 69-2210. Price: $17.77 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
587738903 |
KIT.SRVC.STEERINGSHAFT.3HISHFT This part replaces 585869202. Price: $44.99 |
| 16 |
69-2160 |
PORT SECTION ASM Price: $1,469.23 |
| 17 |
59-8500 |
GEAR Price: $1,303.76 |
| 18 |
69-2060 |
SHAFT END COVER ASM Price: $1,123.41 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 19 |
69-2130 |
DISCONTINUED Price: Call Us |
| 20 |
532441425 |
STEERING.BOOT.HUSQ.LT Price: $7.99 |
| 20 |
59-8590 |
SEAL Price: $31.34 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 21 |
59-8580 |
RING-RETAINING Price: $10.21 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 585029802. Price: $14.99 |
| 22 |
59-8570 |
SEAL Price: $45.56 |
| 23 |
59-7970 |
STUD Price: $17.00 |
| 24 |
59-7580 |
NUT Price: $0.95 |
| 27 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 72 |
596039701 |
Bolts This part replaces 532428982. Price: $3.99 |
| 75 |
587738906 |
KIT.SRVC.STEERINGSHAFT.PINION This part replaces 580683701. Price: $4.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $2.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
