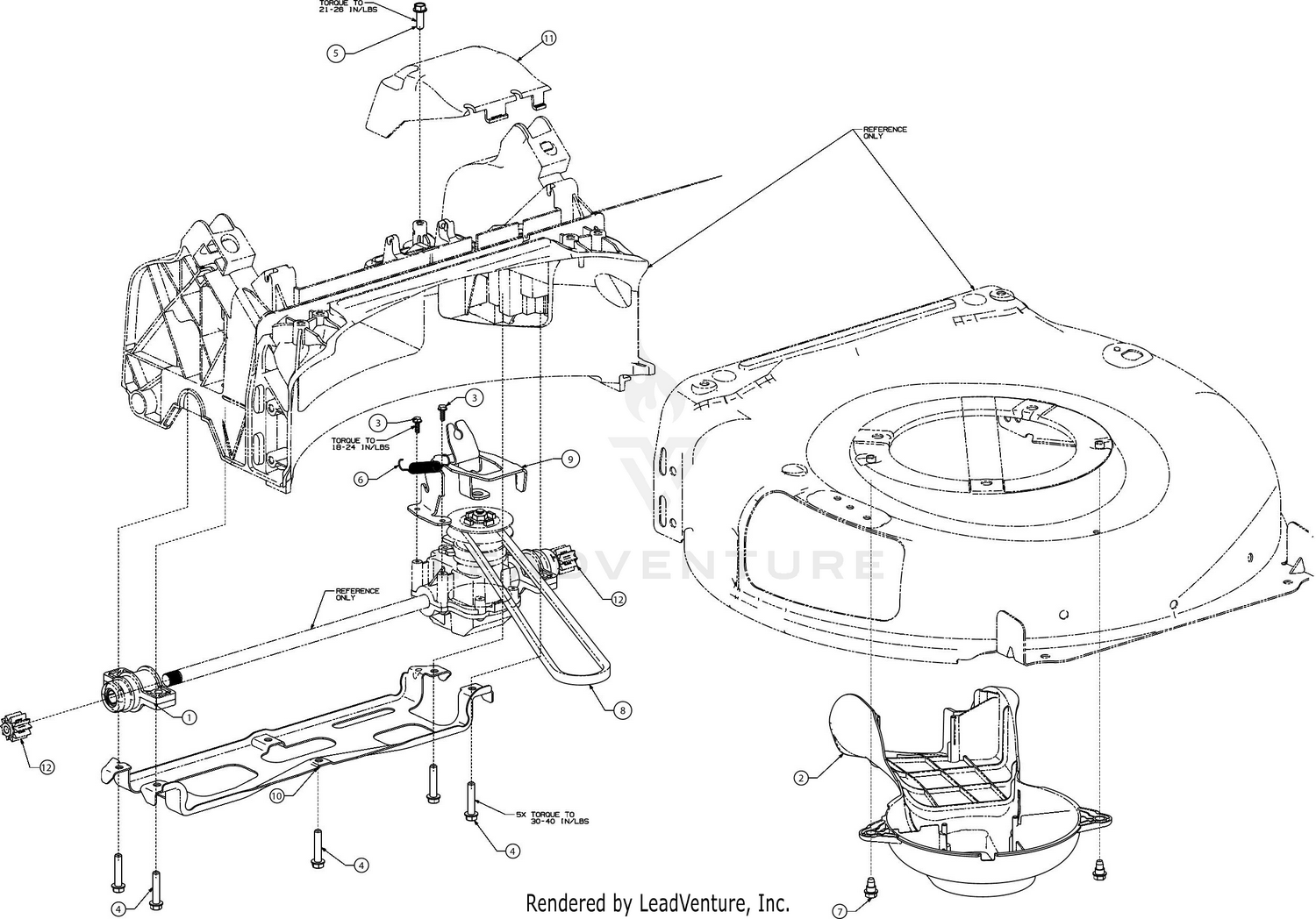

| Ref | Part Number | Description |
|---|
| 1 |
631-04501A |
BEARING ASSEMBLY Price: $5.78 |
| 2 |
631-04512D |
ENGINE BAFFLE ASSEMBLY This part replaces 631-04512C. Price: $18.62 |
| 3 |
710-04374 |
SCREW .159 x .43 Price: $3.24 |
| 4 |
710-04774 |
SCREW 1/4-15 x 1.250 Price: $4.02 |
| 5 |
710-0895 |
SCREW 1/4-15 x .750 Price: $5.82 |
| 6 |
732-04826A |
EXTENSION SPRING Price: $3.49 |
| 7 |
738-04502 |
SHOULDER SCREW 1/4-20 x .50 Price: $3.75 |
| 8 |
954-04282 |
V-BELT 31.25 Price: $26.49 |
| 9 |
787-01868B-0637 |
TRANSMISSION BRACKET (POWDER BLACK) This part replaces 787-01868A-0637. Price: $7.69 |
| 10 |
787-01915C |
REAR CLIP SUPPORT BRACKET This part replaces 787-01915B. Price: $16.76 |
| 11 |
731-07799 |
TRANSMISSION COVER Price: $10.05 |
| 12 |
917-04852 |
SPUR GEAR 10T Price: $3.95 |
