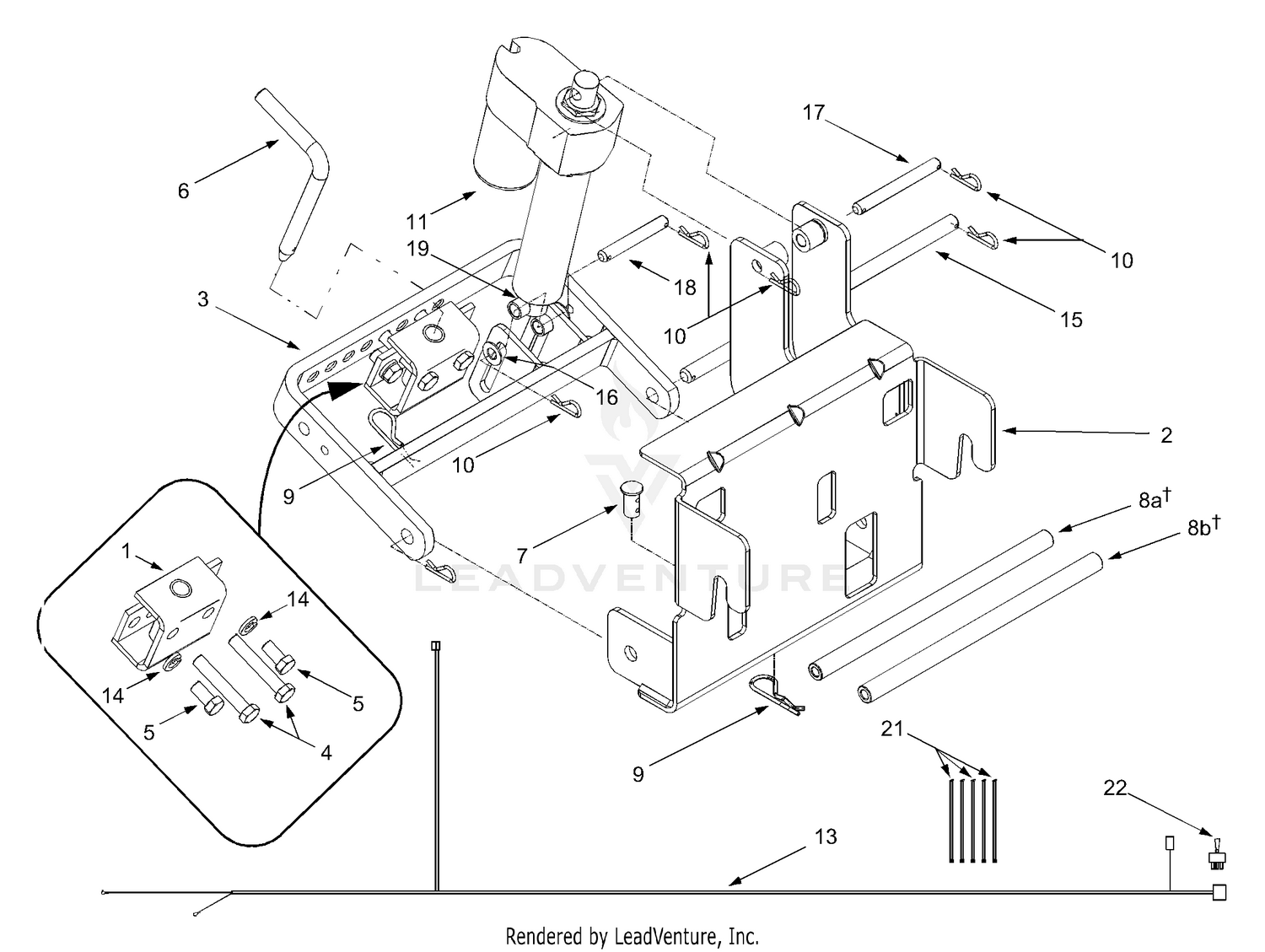

| Ref | Part Number | Description |
|---|
| 1 |
13269 |
BRACKET ASSEMBLY-H Not Available Price: |
| 2 |
683-0272A-0637 |
FAST ATTACH BRACKET ASSEMBLY (POWDER BLACK) Not Available This part replaces 683-0272A. Price: |
| 3 |
683-0273-0637 |
HITCH SLEEVE ASSEMBLY (POWDER BLACK) Not Available This part replaces 683-0273. Price: |
| 4 |
710-0182A |
SCREW-HEX 1/2-13 X 3.00 This part replaces 710-0182. Price: $6.88 |
| 5 |
710-3131 |
Hex Cap Screw, 1/2-13 x 1 (Grade 5) Price: $4.69 |
| 6 |
711-0282 |
HITCH PIN Not Available Price: |
| 7 |
711-0309A |
Clevis Pin Price: $11.31 |
| 9 |
714-0117 |
Internal Cotter Pin, .148 x 3 Price: $3.85 |
| 10 |
714-0149B |
Internal Cotter Pin Price: $3.95 |
| 11 |
917-0620 |
ELECTRIC ACTUATOR Not Available This part replaces 717-0620. Price: |
| 12 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 13 |
929-0919 |
WIRE ASSEMBLY Not Available This part replaces 629-0919. Price: |
| 14 |
736-0921 |
Lock Washer, 1/2 Price: $3.90 |
| 15 |
738-0482 |
HITCH ROD Not Available Price: |
| 16 |
736-3084 |
Flat Washer, .51 x 1.12 x .060 Price: $4.39 |
| 17 |
747-1170 |
UPPER CYLINDER SUPPORT ROD Not Available Price: |
| 18 |
747-1171 |
LOWER CYLINDER SUPPORT ROD Not Available Price: |
| 19 |
750-1206 |
Spacer, .542 x .750 x .5 Price: $14.23 |
| 20 |
783-0668 |
HITCH PLATE Not Available Price: |
| 21 |
725-0157 |
Cable Tie Price: $3.46 |
