| Ref | Part Number | Description |
|---|
| 1 |
115-8047-01 |
NO. 3 LIFT ARM ASM This part replaces 92-9291-01. Price: $1,059.77 |
| 1 |
165892 |

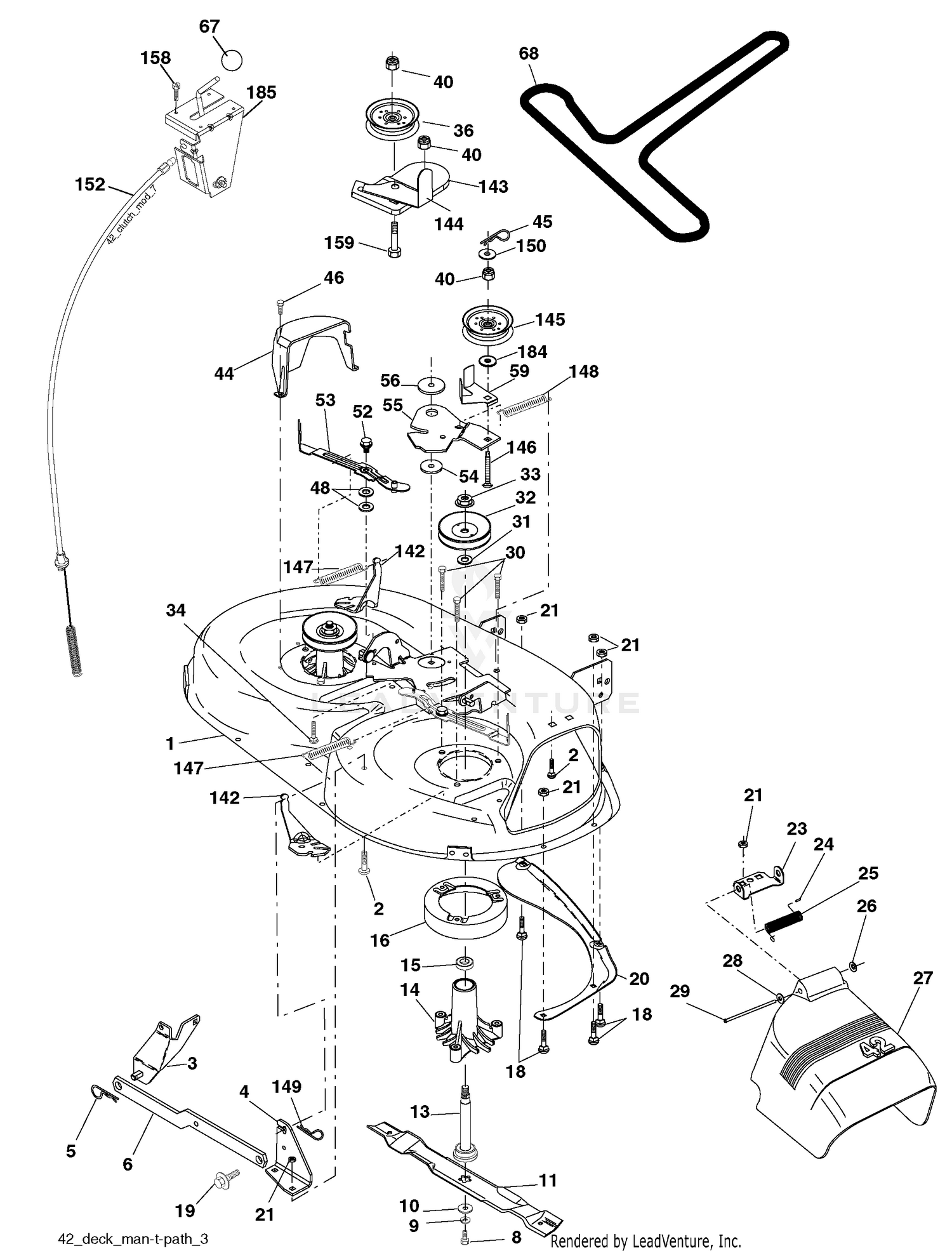

Mower Deck Assembly, 42" Price: Call Us |
| 2 |
68-6480 |
BUSHING-FLANGE Price: $3.19 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
325-17 |
SCREW-HH Price: $2.90 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
323-7 |
SCREW-HH Price: $0.65 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
52-6180 |
SPACER Price: $1.65 |
| 7 |
60-3250 |
WASHER Price: $5.21 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
3256-56 |
WASHER-FLAT Price: $1.15 |
| 10 |
140296 |
Washer, Hardened (The following Blades are available) Price: Call Us |
| 10 |
92-9246-03 |
A-FRAME Price: $525.35 |
| 11 |
134149 |
Blade, Mulching 42†Std (for mulching mowers only) Price: Call Us |
| 11 |
138971 |
Blade Mower 42†Hi-Lift (for bagging and discharging) Price: Call Us |
| 11 |
139775 |
Blade Mulching 42†Premium (For better wear when mulching) Price: Call Us |
| 11 |
325-7 |
SCREW-HH Price: $1.53 |
| 12 |
115-8046-01 |
NO. 2 LIFT ARM ASM This part replaces 92-9290-01. Price: $933.22 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
60-1280 |
PIN Price: $3.53 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
58-4380 |
PIN Price: $25.11 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 17 |
115-8017 |
REEL MOTOR KIT This part replaces 93-1412. Price: $1,999.51 |
| 18 |
3246-17 |
SETSCREW-HSH Price: $0.47 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
323-14 |
SCREW-HH Price: $1.34 |
| 21 |
324-6 |
SCREW-HH Price: $0.81 |
| 21 |
73680500 |
Nut Price: Call Us |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 26 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 31 |
115-8011 |
CYLINDER-HYD This part replaces 104-5225. Price: $784.12 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 32 |
93-7331 |
DECAL-WARNING Price: $10.35 |
| 33 |
400234 |
Nut, Toplock Price: Call Us |
| 34 |
325-34 |
SCREW-HH Price: $2.37 |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 39 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 67 |
106932X |
Knob Round Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
158634 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
165888 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
