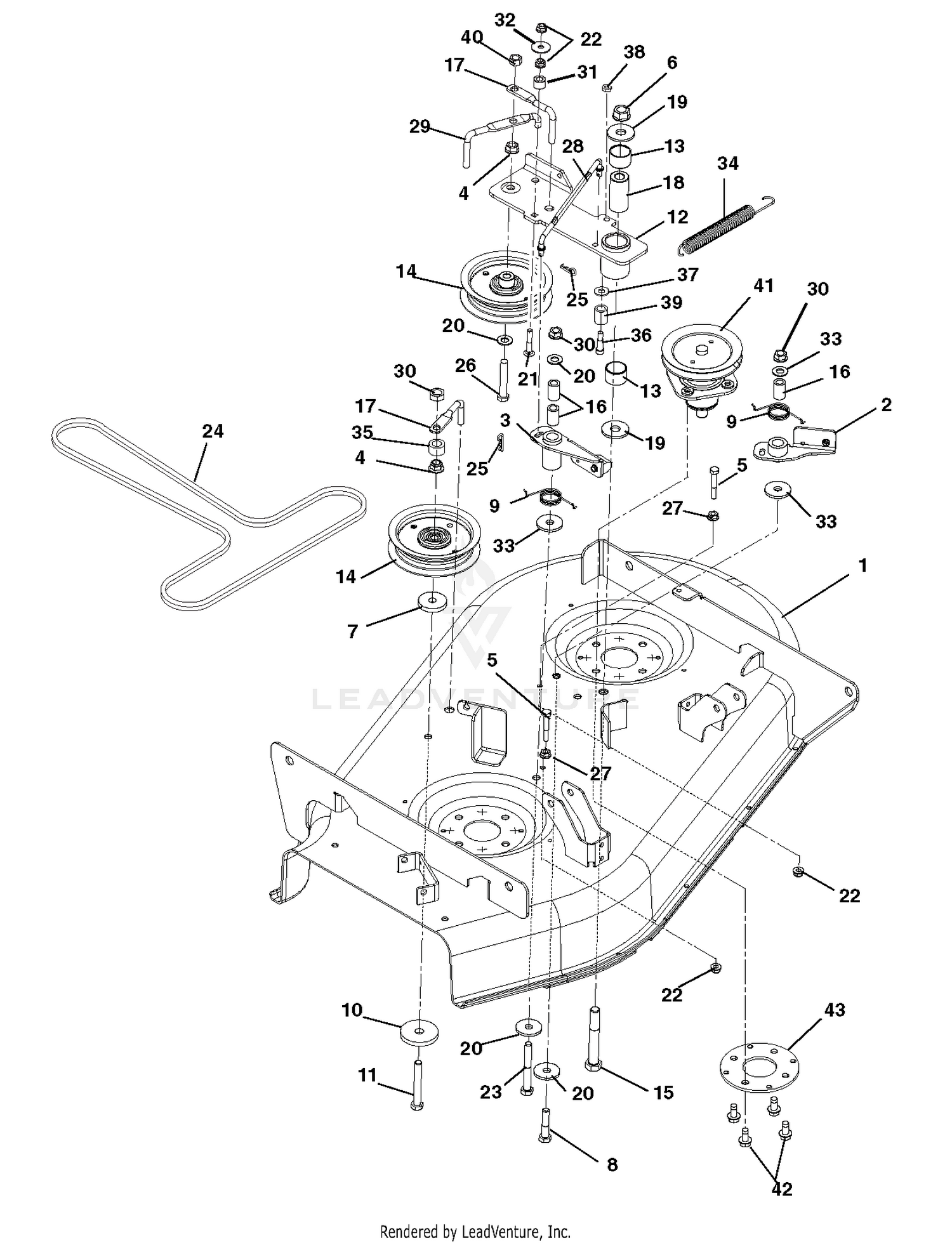

| Ref | Part Number | Description |
|---|
| 1 |
51520000 |
KIT-DECK, W/DECALS GRAVELY 34" This part replaces 03886453. Price: $518.45 |
| 2 |
51519900 |
ASSY-BRAKE ARM LH Price: $52.95 |
| 3 |
51519800 |
ASSY-BRAKE ARM RH Price: $61.45 |
| 4 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 6 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 7 |
06401110 |
WSHR, FLT .406X1.50X.245 ZCC This part replaces 06400006. Price: $3.95 |
| 8 |
05901809 |
BLT, HEX .38-16X1.75 G5 ZCC This part replaces 05958500. Price: $1.45 |
| 9 |
08300502 |
SPRING, TORSION Price: $8.45 |
| 10 |
06401111 |
WSHR, FLT .469X2.00X.250 ZCC This part replaces 06443600. Price: $6.95 |
| 11 |
05901611 |
BLT, HEX .38-16X2.75 G5 ZCC This part replaces 05961400. Price: $3.95 |
| 12 |
03875600 |
WMT, IDLER ARM Price: $59.45 |
| 13 |
05435800 |
BRG, 1.00 X 1.12 X .75 Price: $8.45 |
| 14 |
07350100 |
IDLER, FLAT - 4.06" X .75" This part replaces 07300039. Price: $43.95 |
| 15 |
05901937 |
BLT, HEX .50-13X3.50 G5 ZCC This part replaces 05965800. Price: $4.45 |
| 16 |
08833400 |
BUSH.,S.391X.622X.950 ST Price: $5.45 |
| 17 |
03828800 |
WIREFORM-BELT FINGER This part replaces 03828853. Price: $8.45 |
| 18 |
01581700 |
BSHG, SPCR .502X.997X2.03 PM Price: $5.95 |
| 19 |
06401022 |
WSHR-FL-STL.511X1.44X.125ZC120 This part replaces 06436400. Price: $2.95 |
| 20 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 21 |
06200331 |
BLT,RHSN .250-20 X 1.5 G5 ZCC This part replaces 06222300. Price: $1.45 |
| 22 |
06500813 |
NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
| 23 |
05901611 |
BLT, HEX .38-16X2.75 G5 ZCC This part replaces 05961400. Price: $3.95 |
| 24 |
07200116 |
V-BELT, HA-WRAPPED Price: $58.45 |
| 25 |
06700222 |
PIN, HAIR #213 .08X1.19 ZCC This part replaces 06713500. Price: $0.45 |
| 26 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95 |
| 27 |
06500824 |
NUT-SPNLK-FLG .25-20 ZC120 This part replaces 06530100. Price: $0.95 |
| 28 |
03771700 |
WIREFORM-LINK, BRAKE Price: $23.95 |
| 29 |
03856800 |
WIREFORM, BELT FINGER This part replaces 03856853. Price: $6.45 |
| 30 |
06500914 |
NUT-LK-CTR-JAM .375-16 GB ZCC This part replaces 06537200. Price: $0.95 |
| 31 |
03242100 |
SPACER .325 X.625 X.455 Price: Call Us |
| 32 |
06401020 |
WSHR,FLT .281X1.000X.063 ZCC This part replaces 06426600. Price: $0.95 |
| 33 |
06401121 |
WSHR,FLT .406X1.375X.135 ZCC This part replaces 06442400. Price: $5.45 |
| 34 |
08300538 |
SPRING, SWIVEL HOOK EXTENSION This part replaces 08316400. Price: $13.45 |
| 35 |
05522100 |
BSHG-SLV .377X.624X.370 Price: $4.45 |
| 36 |
05901340 |
BLT-SHSB .25-20X.312X.625 Price: $3.45 |
| 38 |
06500912 |
NUT-LK-CTR-JAM .250-20 GB ZCC This part replaces 06500635. Price: $1.95 |
| 39 |
03877100 |
ROLLER-.50X.328X.625 Price: $8.45 |
| 40 |
06500825 |
NUT-LK-CTR .38-16 ZC120 This part replaces 06529600. Price: $0.95 |
| 42 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
