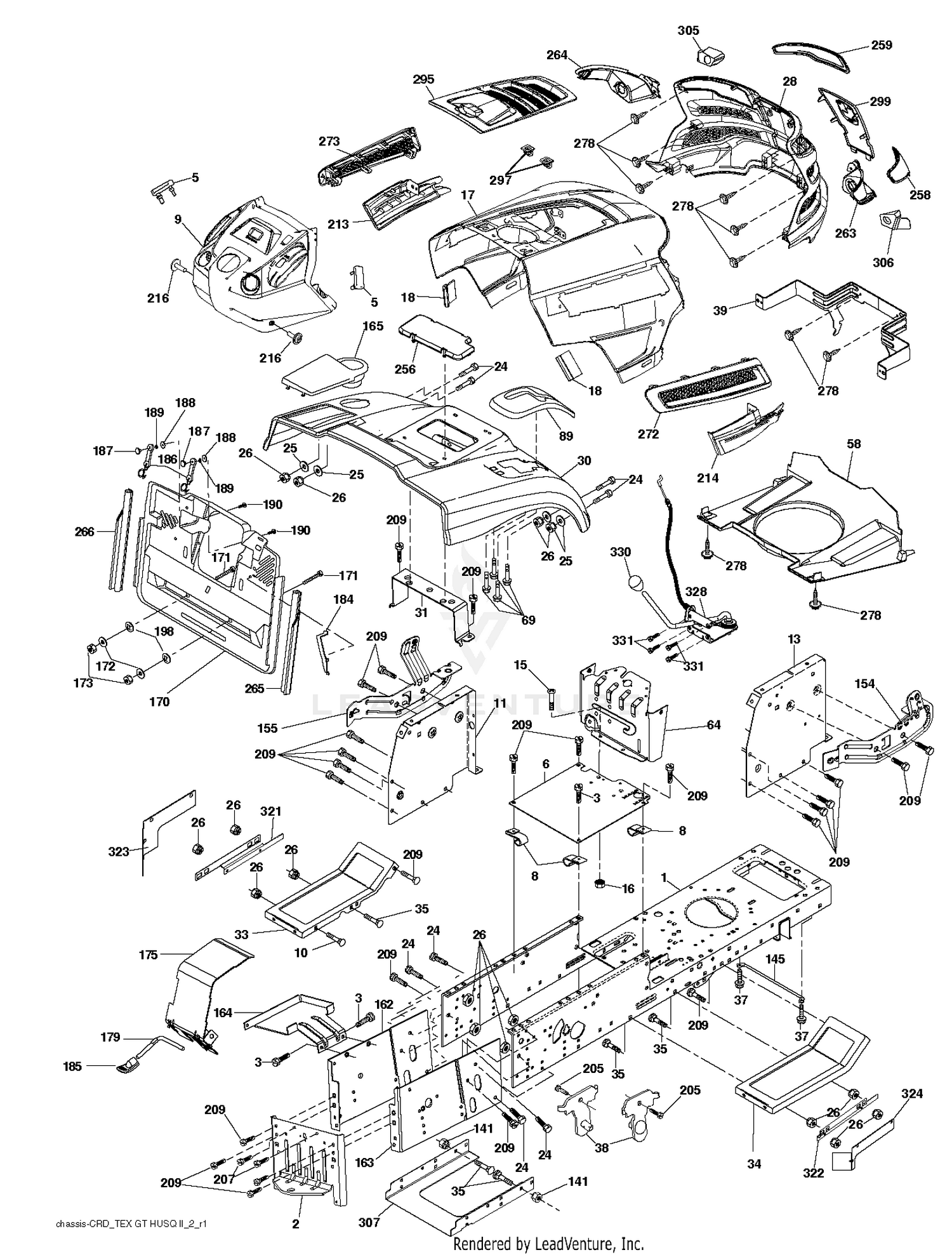

| Ref | Part Number | Description |
|---|
| 1 |
532174620 |
CHASSIS Price: $119.99 |
| 1 |
61-0380-01 |
CAP-END,ROLLER This part replaces 61-0380. Price: $64.74 |
| 2 |
105-0156 |
SHAFT-ROLLER This part replaces 61-0400. Price: $88.81 |
| 2 |
583101001 |
DRAWBAR.CRD This part replaces 532180384. Price: $64.99 |
| 3 |
253-152 |
SEAL-OIL Price: $4.54 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 5 |
254-78 |
BEARING-CONE Price: $12.22 |
| 5 |
532407590 |
BUMPER DASH Price: $3.99 |
| 6 |
583133601 |
SADDLE.FLAT.LT/YT/CRD.2003 This part replaces 532184419. Price: $12.99 |
| 6 |
62-7660 |
WASHER Price: $12.89 |
| 7 |
105-0150 |
SEAL-GREASE This part replaces 253-153. Price: $4.88 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 8 |
71-3590 |
NUT-ADJUSTMENT Price: $19.21 |
| 9 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 9 |
532437500 |
Price: Call Us |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 10 |
82-2400 |
DISCONTINUED This part replaces 63-5160. Price: Call Us |
| 11 |
532167203 |
PANEL DASH LH Price: $19.99 |
| 11 |
62-4990 |
SHAFT-ROLLER Price: $205.36 |
| 12 |
252-112 |
BEARING-TAPER/CONE Price: $57.97 |
| 13 |
532178298 |
PANEL DASH RH Price: $19.99 |
| 14 |
76-2400 |
ROLLER-FRONT Price: $115.71 |
| 15 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 15 |
874180512 |
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 Price: $3.99 |
| 16 |
256-117 |
BUSHING Price: $4.07 |
| 16 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 17 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 17 |
63-5060 |
ROLLER Price: $30.00 |
| 18 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 18 |
76-2380 |
PLATE-SHAFT Price: $192.33 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
597247201 |
Grilles This part replaces 532440653. Price: $84.99 |
| 30 |
532441265 |
FENDER.PNT.CRD.MS-668 Price: $149.99 |
| 31 |
532165156 |
BRACKET SUPPORT FENDER Price: $5.99 |
| 33 |
532182507 |
FOOTREST.LH.BLACK This part replaces 532181057. Price: $37.99 |
| 34 |
532182508 |
FOOTREST.RH.BLACK This part replaces 532181058. Price: $22.99 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
583117401 |
BRACKET ARM.PIVOT.REAR This part replaces 532181748. Price: $9.99 |
| 39 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 58 |
532439731 |
AIR DUCT.GTV2(1.66"RING HEIGHT Price: $37.99 |
| 64 |
532438270 |
Price: Call Us |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 89 |
532441574 |
CONSOLE.CRD.AUTO.GRY This part replaces 532197377. Price: $8.99 |
| 141 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 154 |
532408690 |
Price: Call Us |
| 155 |
532408691 |
Price: Call Us |
| 162 |
583100801 |
BRKT.EXTEN.CHASSIS.LH.CRD This part replaces 532180382. Price: $48.99 |
| 163 |
583100901 |
BRKT.EXTEN.CHASSIS.RH.CRD This part replaces 532180383. Price: $43.99 |
| 164 |
532165605 |
SUPPORT Price: $59.99 |
| 165 |
532441772 |
COVER.BATTERY.BAG.ELE.CRD.498 This part replaces 532432276. Price: $22.99 |
| 170 |
532199489 |
Price: Call Us |
| 171 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 172 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 173 |
873510600 |
NUT Price: $4.99 |
| 175 |
583707801 |
DOOR.TRAP.FBI.CRD.2004 This part replaces 532188203. Price: $17.99 |
| 179 |
583100601 |
ROD.PIVOT.FBI.CRD This part replaces 532188202. Price: $17.99 |
| 184 |
532174662 |
BRACKET.ACTUATOR.BAGGER.SRD Price: $4.99 |
| 185 |
532181101 |
Price: Call Us |
| 186 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 187 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 188 |
819061216 |
WASHER Price: $3.99 |
| 189 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 190 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 198 |
532168937 |
NUT Price: $2.99 |
| 205 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 213 |
532439729 |
SIDE.TRIM.LH.GT.HUSQ.II.GRAY Price: $14.99 |
| 214 |
532439730 |
SIDE.TRIM.RH.GT.HUSQ.II Price: $12.99 |
| 216 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 256 |
532181361 |
COVER FENDER CRD Price: $3.99 |
| 258 |
532443385 |
LENS.HEADLIGHT.RH.GTII.2011 This part replaces 532439732. Price: $11.99 |
| 259 |
532439733 |
LENS.HEADLIGHT.LH.GTII.2011 Price: $11.99 |
| 263 |
587464801 |
HEADLIGHT.CUP.BEZEL.HUS.GT2.RH This part replaces 532439734. Price: $11.99 |
| 264 |
587464501 |
HEADLIGHT.CUP.BEZEL.HUS.GT2.LH This part replaces 532439735. Price: $11.99 |
| 265 |
583146701 |
SEAL.SIDE.RH.BAGGER.CRD This part replaces 532185704. Price: $17.99 |
| 266 |
583146601 |
SIDE.SEAL.LH.BAGGER.CRD This part replaces 532185703. Price: $17.99 |
| 272 |
532439728 |
VENT.SIDE.RH.GT.HUSQ.II. Price: $14.99 |
| 273 |
532439727 |
VENT.SIDE.LH.GT.HUSQ.II.498 Price: $14.99 |
| 278 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 295 |
587485901 |
VENT.TOP.EXTERNAL.FILL.ASY.GT2 This part replaces 532440665. Price: $24.99 |
| 299 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II This part replaces 532439752. Price: $22.99 |
| 305 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 306 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 307 |
532425125 |
Price: Call Us |
| 321 |
583458201 |
SHIELD.DECK.INNER.LH.CRD.FREN This part replaces 532430309. Price: $15.99 |
| 322 |
583463601 |
SHIELD.DECK.INNER.RH.CRD.FREN This part replaces 532431014. Price: $14.99 |
| 323 |
583480401 |
ASSY.CRD.LH.OUTSIDE.DECK.SHD This part replaces 532432400. Price: $14.99 |
| 324 |
583480501 |
ASSY.CRD.RH.OUTSIDE.DECK.SHD This part replaces 532432401. Price: $17.99 |
| 328 |
532438971 |
Price: Call Us |
| 330 |
539132624 |
KNOB - SHIFT This part replaces 532440639. Price: $6.99 |
| 331 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 03440 |
Kit-Full |
Roller (Incl. 3 of No. 61-0410) Price: Call Us 03440 |
| 03445 |
Kit-Sectional |
Roller (Incl. 3 of No. 62-4970) Price: Call Us 03445 |
| 03450 |
Kit-Wiehle |
Roller (Incl. 3 of No. 92-1846) Price: Call Us 03450 |
| 531307007 |
TRACTOR |
BUMPER KIT ALL MODELS This part replaces 532400944. Price: $59.00 531307007 |
