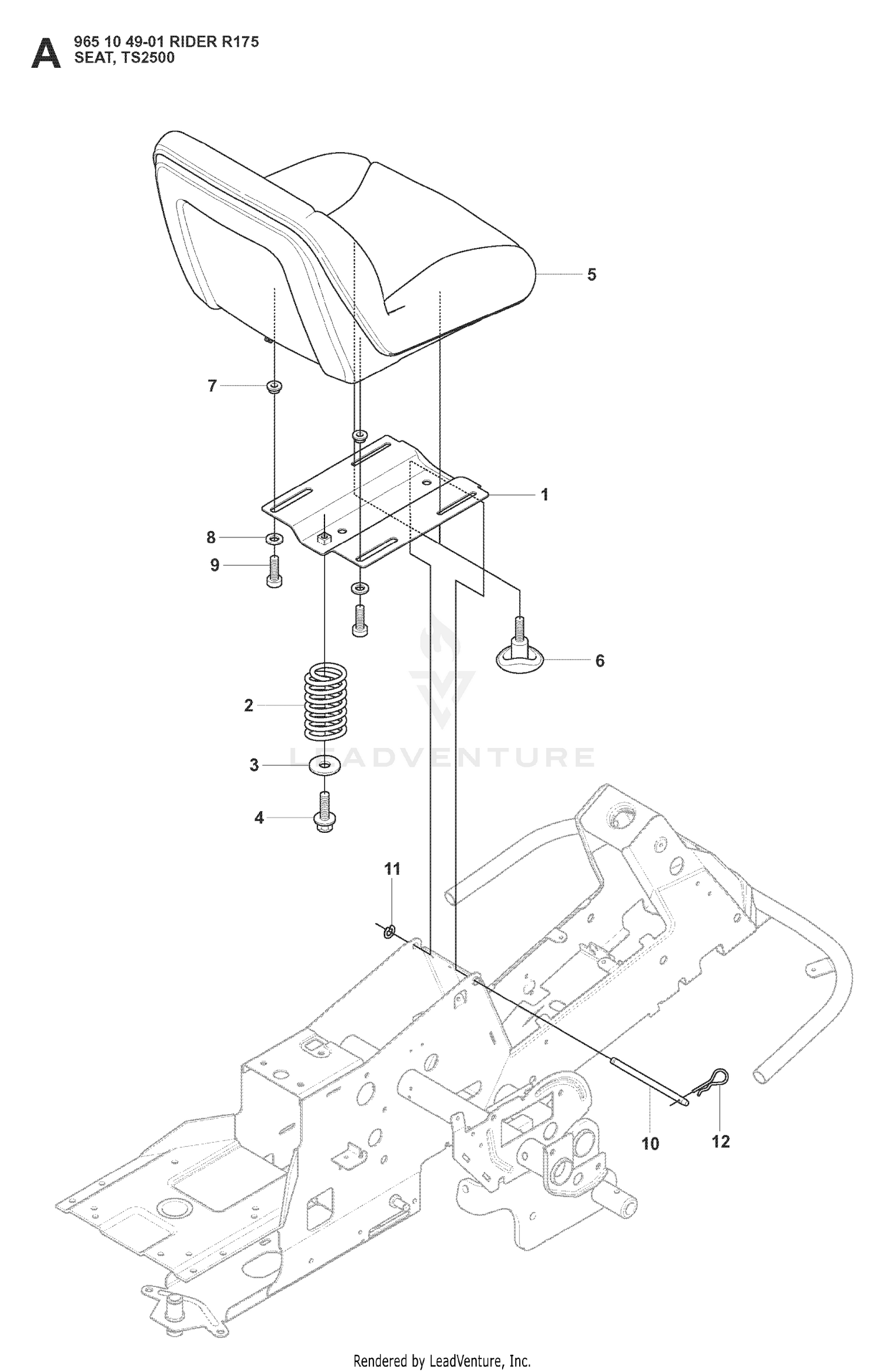

| Ref | Part Number | Description |
|---|
| 1 |
132-6260-03 |
MOUNT Price: $110.03 |
| 1 |
544328503 |
SEAT BRACKET Price: $59.99 |
| 2 |
132-6266-03 |
PLATE-MOUNT, COLUMN Price: $28.01 |
| 2 |
506915301 |
SEAT SPRING Price: $17.99 |
| 3 |
132-6285 |
ROD-BRAKE Price: $57.29 |
| 3 |
734117441 |
WASHER Price: $3.99 |
| 4 |
3231-26 |
SCREW-CARR Price: $0.86 |
| 4 |
725249371 |
Screw M10x25 Price: $1.82 |
| 5 |
587605301 |
SEAT ASSY KIT LOW HVA This part replaces 544433301. Price: $179.99 |
| 5 |
63-8410 |
WASHER Price: $1.76 |
| 6 |
585065201 |
KNOB This part replaces 506565501. Price: $17.99 |
| 6 |
63-9750 |
MOUNT Price: $18.92 |
| 7 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 7 |
506565301 |
WASHER Price: $4.99 |
| 8 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 8 |
734116441 |
SPACER Price: $3.99 |
| 9 |
105-2409 |
SCREW-HSH Price: $0.68 |
| 10 |
104-7201 |
NUT-HF Price: $0.69 |
| 10 |
506509901 |
Shaft Price: $6.08 |
| 11 |
735311200 |
RETAINING RING SGA 10 Price: $2.99 |
| 11 |
99-3410 |
SWITCH Price: $95.63 |
| 12 |
136-7153 |
SPRING-EXTENSION Price: $5.09 |
| 12 |
506668801 |
PIN Price: $3.99 |
| 13 |
98-1459 |
DECAL Price: $3.93 |
| 14 |
132-6225-0P |
SUPPORT ASM, REAR This part replaces 132-6225-03. Price: $42.92 |
| 15 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 16 |
132-6283 |
PLATE-BRAKE Price: $10.37 |
| 17 |
132-6284 |
PLATE-BRAKE Price: $11.97 |
| 18 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 19 |
37-8771 |
BOLT-SHOULDER,HFH Price: $3.59 |
| 20 |
132-6244 |
COVER-STEERING Price: $201.44 |
| 21 |
105-1217 |
DECAL Price: $37.95 |
| 22 |
132-6230 |
COLUMN-TILT Price: $779.55 |
| 23 |
107069 |
CLIP Price: $1.79 |
| 24 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 25 |
137-5548 |
LINK-BRAKE Price: $4.41 |
| 26 |
3229-3 |
SCREW-CARR Price: $4.49 |
| 27 |
120-4093-0P |
MOUNT-POWER This part replaces 120-4093-03. Price: $82.97 |
| 28 |
99-7435 |
RELAY Price: $32.43 |
| 29 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 30 |
3290-134 |
SCREW Price: $0.27 |
| 31 |
42862 |
BLOCK-TERMINAL, GROUND Price: $19.58 |
| 32 |
42863 |
STRIP-JUMPER Price: $2.90 |
| 33 |
321-3 |
SCREW-HH Price: $0.28 |
| 34 |
107-1013 |
NUT-SPEED Price: $2.89 |
| 35 |
108-9824 |
NUT-SWITCH Price: $1.97 |
| 36 |
114-3321 |
CONTROLLER-TEC Price: $1,515.96 |
| 37 |
120-4127-0P |
MOUNT-RELAY This part replaces 120-4127-03. Price: $31.32 |
| 38 |
114-5502 |
CLIP-FUSE Price: $10.72 |
| 39 |
609900 |
NUT-SPEED Price: $7.99 |
| 40 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 41 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 42 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 43 |
117-5458 |
SCREW-HHF Price: $0.22 |
| 44 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 45 |
1-807512 |
BOLT-CARR Price: $1.29 |
| 46 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 47 |
323-6 |
SCREW-HH Price: $0.66 |
