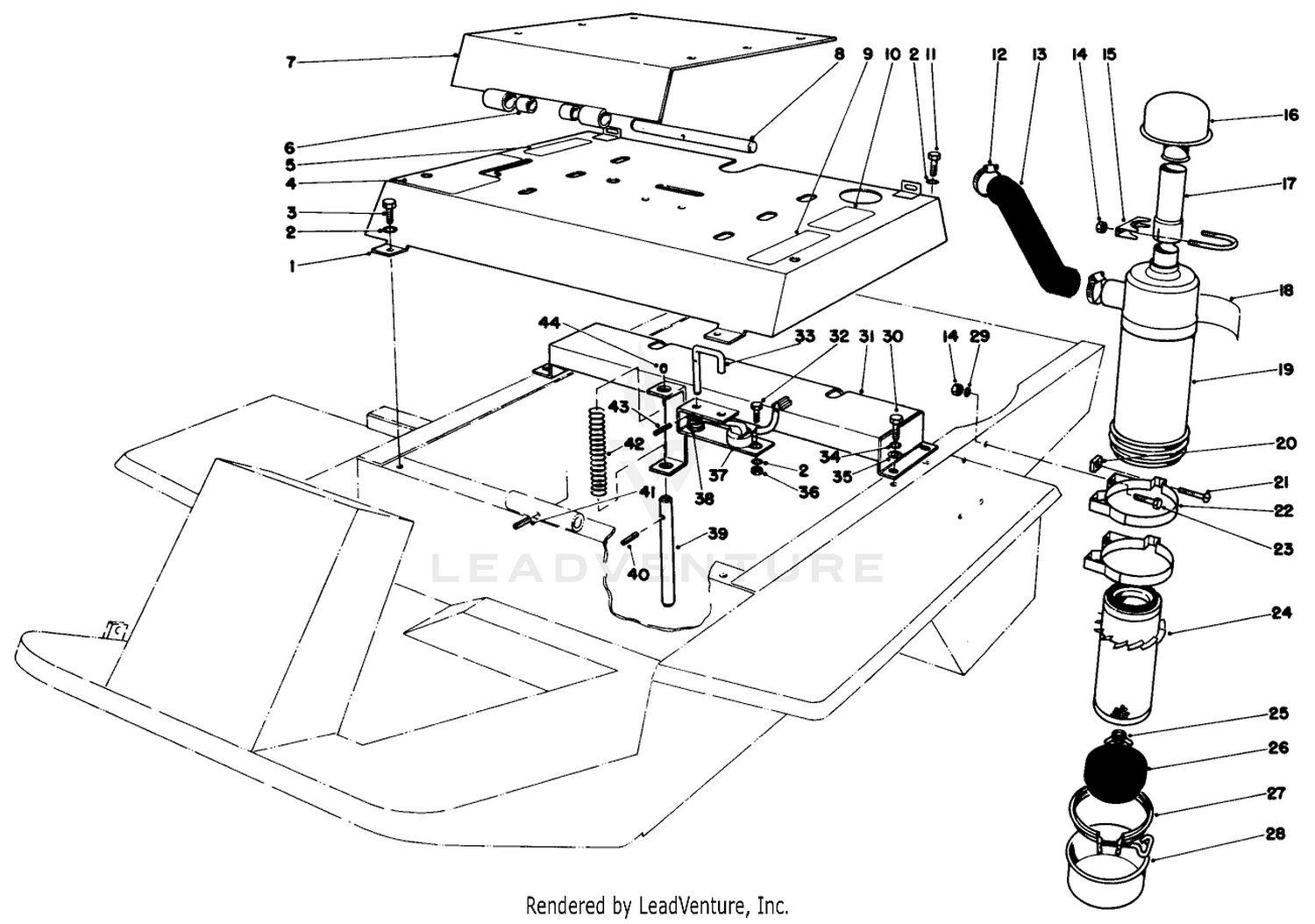

| Ref | Part Number | Description |
|---|
| 1 |
38-2470 |
DISCONTINUED Price: Call Us |
| 2 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 3 |
32104-114 |
SCREW THD 1/4 20 5/8 Price: $5.17 |
| 4 |
68-7320 |
DISCONTINUED This part replaces 27-4390. Price: Call Us |
| 5 |
67-1710 |
DECAL-WARNING This part replaces 28-3290. Price: $7.83 |
| 7 |
38-4020 |
SEAT MTG WA Price: $170.51 |
| 8 |
27-4720 |
SHAFT-PIVOT, SEAT Price: $32.27 |
| 9 |
68-7330 |
DECAL - CAUTION This part replaces 27-4620. Price: $16.56 |
| 10 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 11 |
3214 |
Bolt Price: Call Us |
| 12 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 13 |
44-9050 |
HOSE Price: $70.98 |
| 14 |
3217-6 |
NUT-HEX Price: $1.19 |
| 15 |
20-4840 |
CLAMP-MUFFLER Price: $15.06 |
| 16 |
27-7180 |
CAP Price: $70.51 |
| 17 |
44-8950-03 |
AIR CLEANER TUBE This part replaces 44-8950. Price: $53.15 |
| 18 |
27-7160 |
DECAL-INSTALLATION Price: $19.89 |
| 19 |
27-7100 |
AIR CLEANER ASM Price: $323.10 |
| 20 |
32107-11 |
NUT-SQUARE Price: $0.22 |
| 21 |
3258-19 |
SCREW Price: $0.42 |
| 22 |
27-7170 |
MOUNTING BAND ASM Price: $48.11 |
| 23 |
322-3 |
SCREW-HH Price: $0.79 |
| 24 |
108-3833 |
FILTER-AIR This part replaces 27-7110. Price: $26.73 |
| 25 |
27-7120 |
NUT AND GASKET ASM Price: $15.55 |
| 26 |
27-7140 |
SKIRT-BAFFLE Price: $85.92 |
| 27 |
27-7130 |
CLAMP ASM Price: $49.80 |
| 28 |
27-7150 |
A/C CUP ASM Price: $82.89 |
| 29 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 30 |
323-5 |
SCREW-HH Price: $0.41 |
| 31 |
37-9770 |
DISCONTINUED Price: Call Us |
| 32 |
321-2 |
SCREW-HH Price: $2.79 |
| 33 |
38-3170 |
DISCONTINUED Price: Call Us |
| 34 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
3217-5 |
NUT-HEX Price: $0.25 |
| 37 |
29-6930 |
DISCONTINUED-SEE PB#936 Price: Call Us |
| 38 |
3-6685 |
SPRING Price: $10.99 |
| 39 |
27-9870 |
PIN-SWITCH, SEAT Price: $31.55 |
| 40 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 41 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 42 |
37-9590 |
DISCONTINUED Price: Call Us |
| 43 |
32121-50 |
PIN-SPRING Price: $1.21 |
