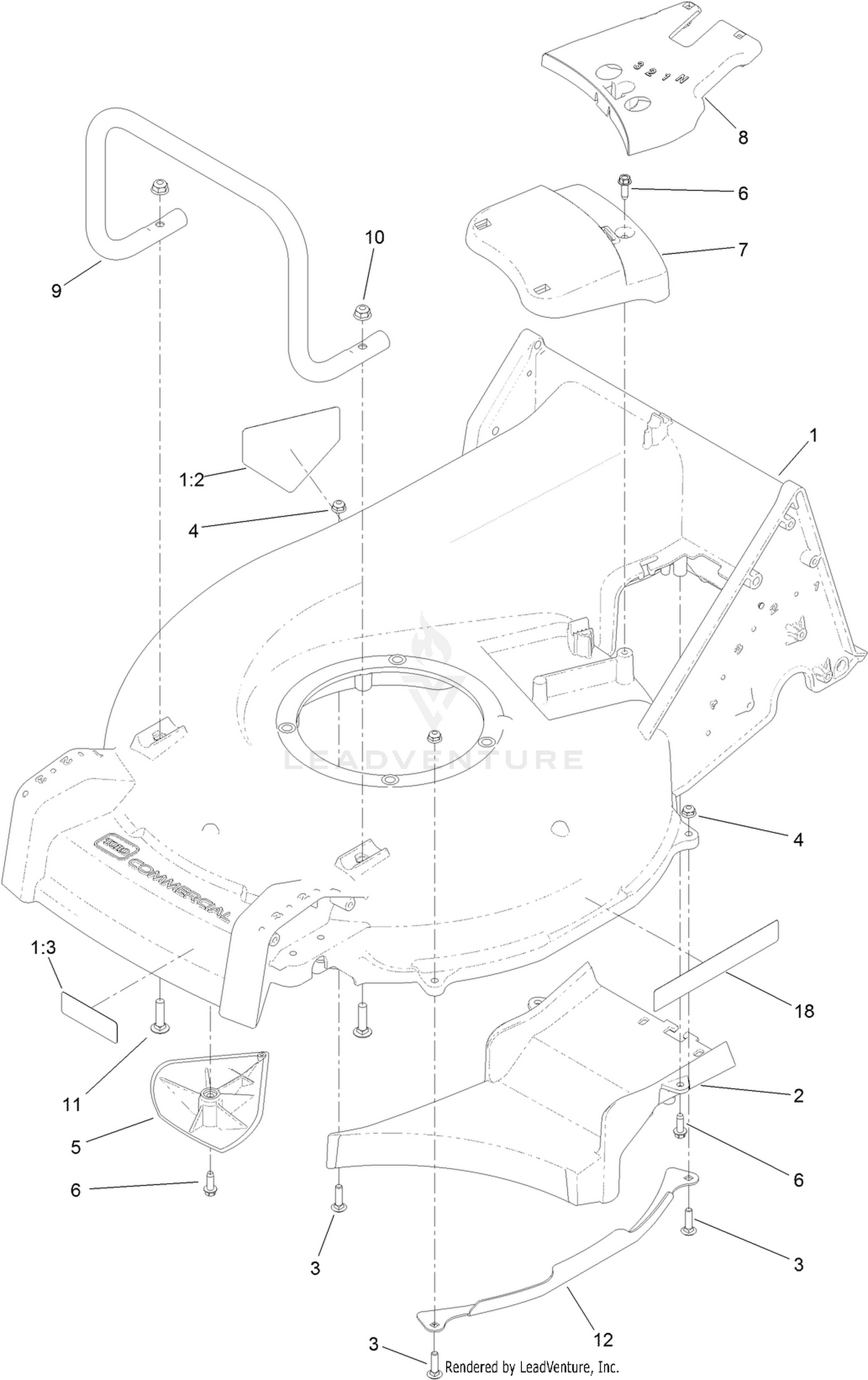

Housing Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-5896 | HOUSING ASM Price: $168.08 |
| 2 | 125-1002-01 | FLOOR-CHUTE Price: $37.21 |
| 3 | 3229-2 | SCREW-CARR Price: $2.89 |
| 4 | 104-7201 | NUT-HF Price: $0.69 |
| 5 | 125-5041 | KICKER Price: $5.11 |
| 6 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 7 | 125-5038 | COVER-BELT, FRONT Price: $7.32 |
| 8 | 125-5039 | COVER-BELT, REAR Price: $8.73 |
| 9 | 125-1003-03 | GUARD-ENGINE Price: $25.16 |
| 10 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 11 | 3230-3 | SCREW-CARR Price: $0.53 |
| 12 | 125-1047-03 | GUARD-SIDE, DECK Price: $6.55 |
