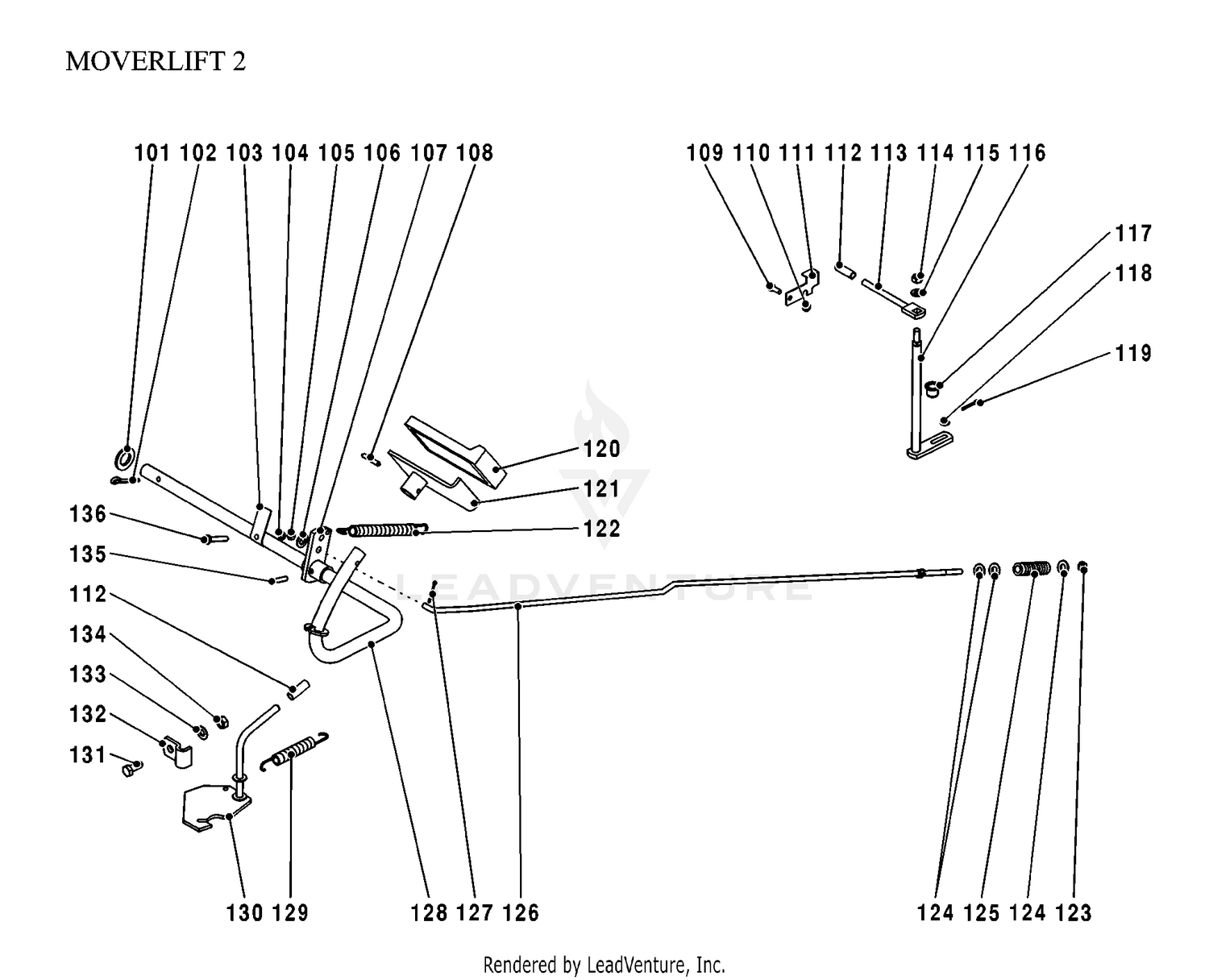

MOWER LIFT / DECK LIFT 3
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 101 | 531005942 | WASHER Price: $1.99 |
| 102 | 531005972 | NEEDS DESCRIPTION Price: Call Us |
| 103 | 531006122 | SPRING Price: $13.99 |
| 104 | 734113601 | WASHER Price: $3.99 |
| 105 | 531005760 | NUT Price: $1.99 |
| 106 | 531005824 | WASHER Price: $2.99 |
| 107 | 531006123 | BRACKET Price: $26.99 |
| 108 | 531006206 | PIN Price: $1.99 |
| 109 | 725236871 | BOLT FLANGE - M6X20 Price: $2.99 |
| 110 | 732261601 | Blocking nut M 6 Z Price: $0.99 |
| 111 | 531005857 | PLATE Price: $13.99 |
| 112 | 531005527 | PIN Price: $1.99 |
| 113 | 531005856 | ARM Price: $30.99 |
| 114 | 732251871 | NUT This part replaces 531005767. Price: $2.99 |
| 115 | 531005824 | WASHER Price: $2.99 |
| 117 | 531005855 | BUSHING Price: $1.99 |
| 118 | 734115201 | WASHER - M6 Price: $2.99 |
| 119 | 721614001 | SPLIT PIN Price: $0.99 |
| 120 | 531005853 | PLATE Price: $14.99 |
| 121 | 531006124 | PEDAL Price: $26.99 |
| 122 | 531005852 | SPRING Price: $11.99 |
| 123 | 732251871 | NUT This part replaces 531005767. Price: $2.99 |
| 124 | 531005824 | WASHER Price: $2.99 |
| 125 | 531005489 | SPRING Price: $12.99 |
| 126 | 531006125 | LEVER Price: $26.99 |
| 127 | 721615301 | SPLIT PIN Price: $0.99 |
| 128 | 531006126 | SHAFT Price: $58.99 |
| 129 | 531006207 | SPRING Price: $14.99 |
| 130 | 531006127 | LEVER Price: $27.68 |
| 131 | 725245161 | BOLT Price: $0.99 |
| 132 | 531005520 | PROTECTOR Price: $39.99 |
| 133 | 531005824 | WASHER Price: $2.99 |
| 134 | 732251871 | NUT This part replaces 531005767. Price: $2.99 |
| 135 | 531005820 | PIN Price: $1.99 |
| 136 | 725229771 | SCREW Price: $1.99 |
