| Ref | Part Number | Description |
|---|
| 1 |
130-2680-0P |
CHAMBER-OUTER This part replaces 130-2680-01. Price: $250.27 |
| 1 |
530095564 |

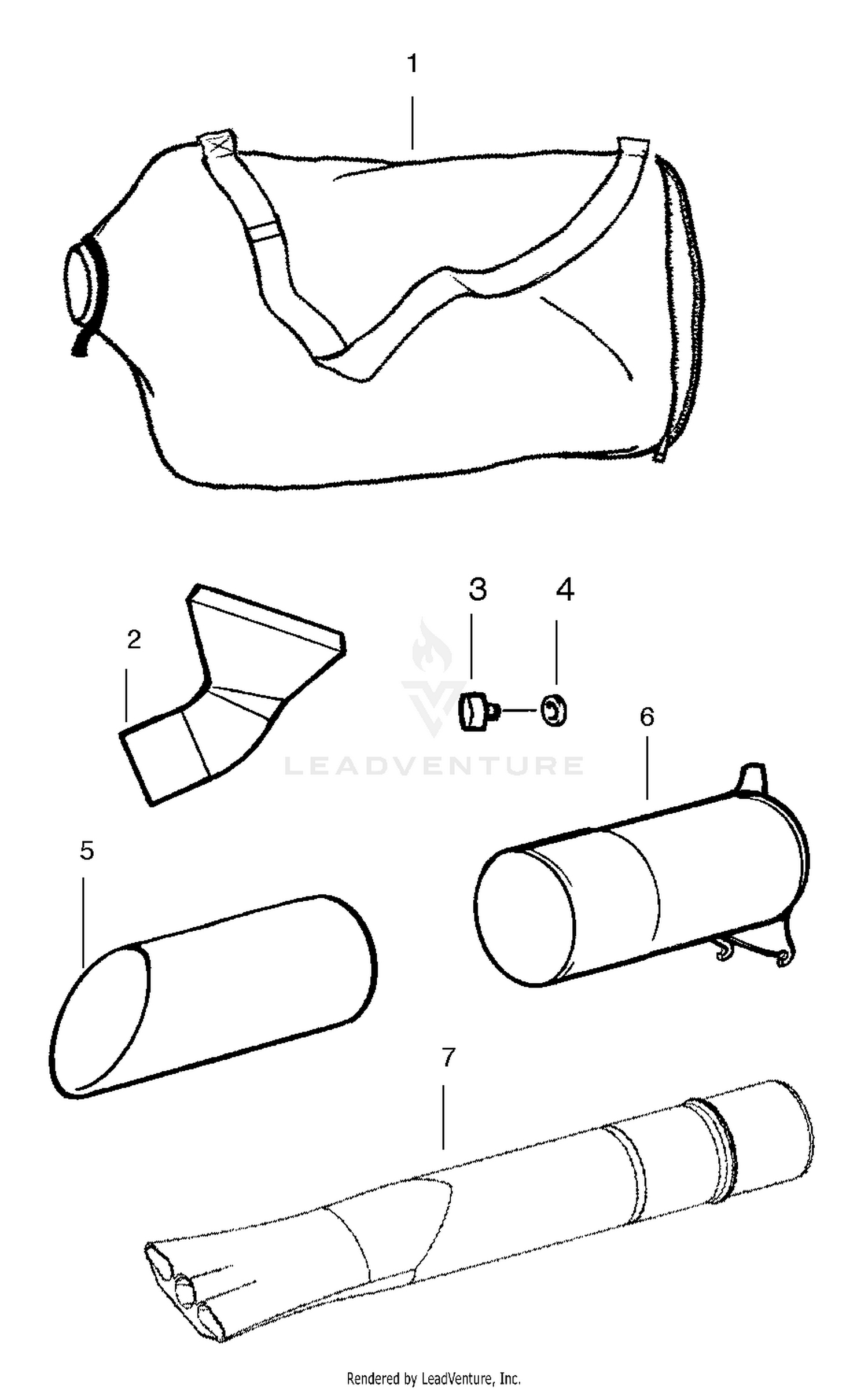

Assy-Vac. Bag w/strap Price: $22.99 |
| 1A |
631255 |
SHAFT & LEV Price: $6.36 |
| 2 |
130-2681-0P |
CHAMBER-INNER This part replaces 130-2681-01. Price: $357.29 |
| 2 |
530095470 |
Tube-Elbow Vac Price: $6.99 |
| 2 |
631443 |
RET SPRING Price: Call Us |
| 3 |
3230-18 |
SCREW-CARR Price: $4.09 |
| 3 |
530049686 |
Retainer-Vac Tube Knob Price: $1.99 |
| 3 |
631036 |
SHUTTER Price: $1.20 |
| 4 |
3296-45 |
NUT-HEX Price: $3.79 |
| 4 |
530016322 |
Knob Price: $1.99 |
| 4 |
650506 |
SCREW Price: $0.87 |
| 5 |
29-4820 |
ROLLER Price: $14.88 |
| 5 |
530094476 |
Tube-Lower Vac Price: $5.99 |
| 5 |
651025 |
SCREW This part replaces 650417. Price: $1.18 |
| 6 |
325-17 |
SCREW-HH Price: $2.90 |
| 6 |
630766 |
SPRING Price: $1.25 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
530095593 |
Tube-Blower Price: $11.99 |
| 7 |
631300 |
SHAFT & LEV Price: $5.16 |
| 8 |
107-3154 |
NUT-PUSH Price: $0.99 |
| 9 |
100-5668-03 |
PLATE-COVER, RH SIDE Price: $77.06 |
| 9 |
630736 |
SHUTTER Price: $2.19 |
| 10 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 10 |
631562 |
ADJ SCREW Price: $3.74 |
| 11 |
1-804254 |
NUT-LOCK, HH Price: $1.29 |
| 11 |
630738 |
SPRING Price: $1.25 |
| 11A |
630738 |
SPRING Price: $1.25 |
| 12 |
630739 |
WASHER Price: $1.25 |
| 12 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 12A |
630739 |
WASHER Price: $1.25 |
| 13 |
100-5665-03 |
PLATE-COVER, RH Price: $73.07 |
| 13 |
630740 |
O RING Price: $1.49 |
| 13A |
630740 |
O RING Price: $1.49 |
| 14 |
100-5666 |
COVER-MOTOR, RH DECK Price: $139.21 |
| 14 |
630737 |
ADJ SCREW Price: $3.95 |
| 15 |
630748 |
WELCH PLUG Price: $1.17 |
| 17 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 17 |
632554 |
WELCH PLUG This part replaces 630746. Price: $1.17 |
| 18 |
631049 |
SPRING Price: $1.20 |
| 19 |
630742 |
GASKET Price: $1.25 |
| 20 |
630932A |
INLET NEEDLE Price: $4.39 |
| 21 |
630750A |
GASKET This part replaces 630750. Price: $3.00 |
| 22 |
630978 |
DIAPHRAGM Price: $4.49 |
| 23 |
630751 |
COVER Price: $8.60 |
| 24 |
650545 |
SCREW Price: $1.20 |
| 26A |
632164 |
FUEL FITTING This part replaces 631803. Price: $5.95 |
| 33 |
630735 |
SPRING Price: $1.25 |
