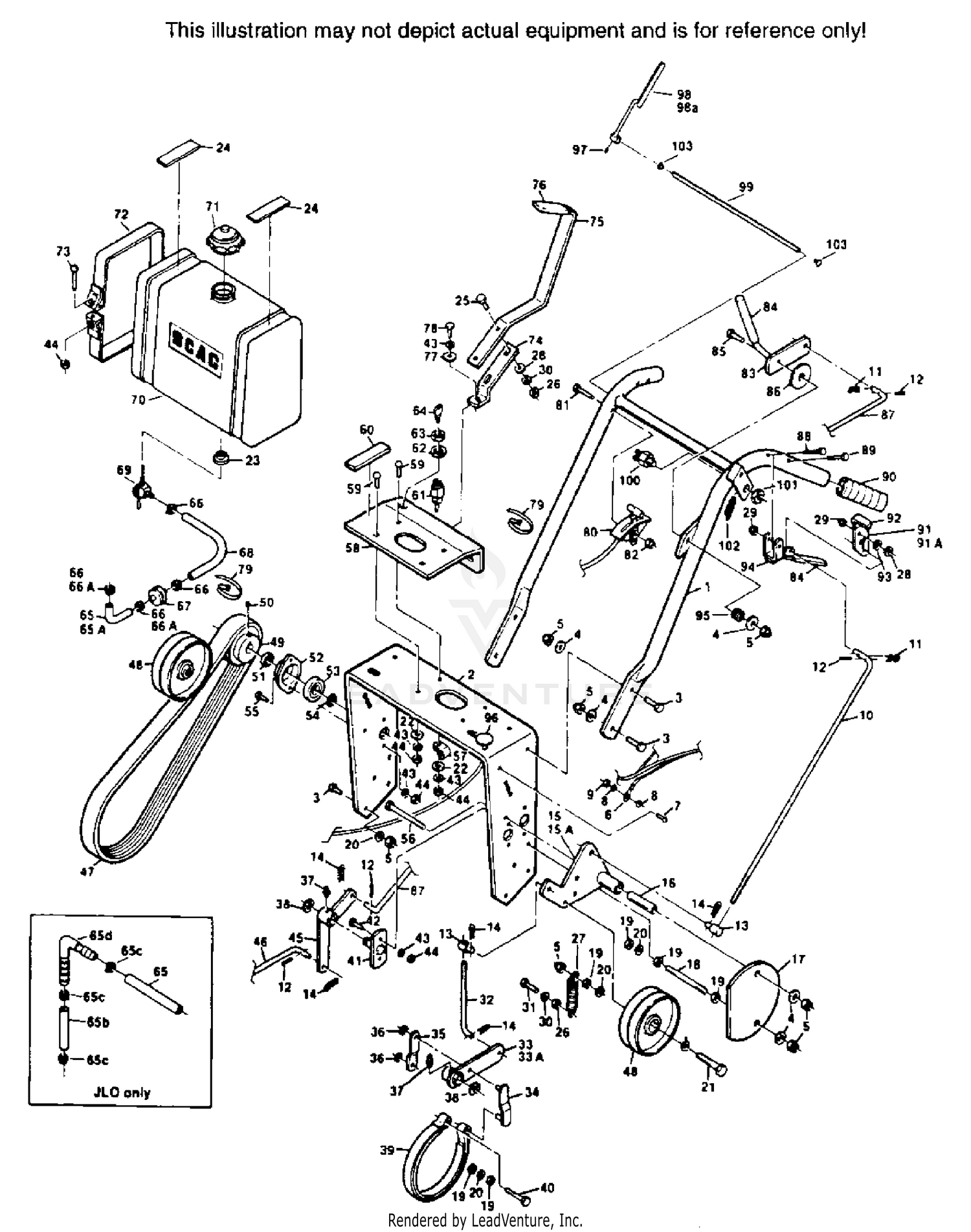

| Ref | Part Number | Description |
|---|
| 1 |
46084 |
HANDLE ASSEMBLY WITH GRIPS This part replaces 46178. Price: Call Us |
| 2 |
42249 |
HANDLE MOUNTING FRAME Price: Call Us |
| 6 |
48610 |
WIRE HARNESS This part replaces 48237. Price: Call Us |
| 10 |
44004 |
CONTROL ROD, STEERING Price: Call Us |
| 11 |
04062-02 |
HAIR PIN, SMALL Price: Call Us |
| 13 |
43032 |
SWIVEL JOINT Price: Call Us |
| 14 |
04062-01 |
HAIR PIN, LARGE Price: Call Us |
| 15 |
45847 |
Idler Bracket, RH This part replaces 45091-01. Price: Call Us |
| 15A |
45846 |
Idler Bracket, LH This part replaces 45091-02. Price: Call Us |
| 16 |
43092 |
IDLER SLEEVE Price: Call Us |
| 17 |
42283 |
BELT GUARD Price: Call Us |
| 18 |
04004-01 |
SUPPORT BELT GUARD Price: Call Us |
| 23 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 24 |
48292 |
RUBBER PADS(UPPER) Price: Call Us |
| 25A |
04003-06 |
CARRIAGE 1/4-20 X 1 Price: Call Us |
| 27 |
48051 |
SPRING, IDLER TENSION Price: Call Us |
| 32 |
44005 |
BRAKE ROAD Price: Call Us |
| 33 |
45092 |
Brake Lever This part replaces 45092-01. Price: Call Us |
| 33A |
45092 |
Brake Lever This part replaces 45092-02. Price: Call Us |
| 34 |
45093 |
BRAKE LINK WLD. Price: Call Us |
| 35 |
42254 |
BRAKE LINK Price: Call Us |
| 36 |
04024-01 |
NUT, PUSH-ON, 3/8 Price: Call Us |
| 37 |
48114-04 |
Fitting, Grease This part replaces 48114-01. Price: Call Us |
| 38 |
04050-01 |
REAINING RING, 5/8 EXT.-"E" Price: Call Us |
| 39 |
48210 |
BRAKE BAND Price: Call Us |
| 41 |
45094 |
BELL CRANK PIVOT WLD. Price: Call Us |
| 45 |
45095 |
BELL CRANK WLD, CLUTCH Price: Call Us |
| 46 |
44064 |
BLADE CLUTCH ROD, LOWER This part replaces 44003. Price: Call Us |
| 47 |
48202A |
Belt, Wheel Drive This part replaces 48202. Price: Call Us |
| 48 |
483211 |
Idler Pulley, Wheel Drive This part replaces 48198. Price: Call Us |
| 49 |
48199 |
PULLEY, JACKSHAFT(INCL. 50) Price: Call Us |
| 51 |
43098 |
SPACER, JACKSHAFT PULLEY Price: Call Us |
| 52 |
48223 |
FLANGE, JACKSHAFT BEARING Price: Call Us |
| 53 |
48224 |
BEARING, JACKSHAFT Price: Call Us |
| 54 |
04050-09 |
RETAINING RING, 5/8 EXT.-BASIC Price: Call Us |
| 57 |
48030-17 |
CLAMP, CABLE - .38 DIA This part replaces 48030. Price: Call Us |
| 58 |
42251 |
SHIFTER PLATE Price: Call Us |
| 60 |
48205 |
RUBBER PAD(LOWER) Price: Call Us |
| 61 |
48612 |
WIRE HARNESS ADAPTER This part replaces 48171. Price: Call Us |
| 62 |
48017-03 |
LOCKWASHER, INTERNAL TOOTH, 5/8 Price: Call Us |
| 63 |
48017-04 |
HEX NUT, 5/8-32 Price: Call Us |
| 64 |
48017-02 |
KEY, IGNITION Price: Call Us |
| 65 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058-01. Price: Call Us |
| 66 |
48059-01 |
CLAMP, FUEL HOSE Price: Call Us |
| 67 |
48057-02 |
FUEL FILTER Price: Call Us |
| 68 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058-06. Price: Call Us |
| 69 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 70 |
46846 |
Fuel Tank Assy. This part replaces 46174. Price: Call Us |
| 71 |
481603 |
Fuel Tank Cap This part replaces 48311. Price: Call Us |
| 72 |
421239 |
Strap, Fuel Tank This part replaces 42369. Price: Call Us |
| 74 |
42252 |
SHIFTER LEVER Price: Call Us |
| 75 |
46073 |
SHIFT LEVER ASSY.(INCL. 76) Price: Call Us |
| 76 |
48215 |
GRIP, SHIFT LEVER Price: Call Us |
| 77 |
04043-01 |
WASHER, 17/64 X 7/8 X 1/8 HT Price: Call Us |
| 78 |
04001-55 |
HEX HEAD BOLT, 1/4-28 X 3/4 GRADE 8 Price: Call Us |
| 79 |
48028-01 |
CABLE TIE Price: Call Us |
| 80 |
48206 |
THROTTLE CONTROL Price: Call Us |
| 83 |
46090 |
BLADE CLUTCH LEVER ASSY.(INCL. 84) Price: Call Us |
| 84 |
48144 |
GRIP, LEVER Price: Call Us |
| 86 |
04041-10 |
WASHER, 3/8 X 2 X 16 GA. Price: Call Us |
| 87 |
44002 |
BELT CLUTCH ROD, UPPER Price: Call Us |
| 90 |
48159 |
GRIP, HANDLE Price: Call Us |
| 91 |
461242 |
Neutral Latch, RH This part replaces 46083-01. Price: Call Us |
| 91A |
461241 |
Neutral Latch, LH This part replaces 46083-02. Price: Call Us |
| 92 |
48095 |
GRIP, NEUTRAL LATCH Price: Call Us |
| 93 |
04032-01 |
CURVED SPRING WASHER Price: Call Us |
| 94 |
483042 |
Steering Lever This part replaces 46089. Price: Call Us |
| 95 |
48050 |
SPRING COMPRESSION Price: Call Us |
| 98 |
45142 |
SAFETY INTERLOCK HAND GRIP LH Price: Call Us |
| 98A |
45572 |
Operator Presence Lever, RH This part replaces 45141. Price: Call Us |
| 99 |
45417 |
OPERATOR PRESENCE HAND GRIP L.H. & ROD This part replaces 44018. Price: Call Us |
| 100 |
48021 |
SWITCH INTERLOCK Price: Call Us |
| 101 |
04026-01 |
HEX NUT 9/16-18, STEEL SPRING Price: Call Us |
| 102 |
48313 |
SPRING, GRIP RETURN Price: Call Us |
