| Ref | Part Number | Description |
|---|
| 1 |
28-0650 |
SHAFT-AXLE, FLANGED Price: $1,130.23 |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 21-8330. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 4 |
24-9180 |
STRUT AND LEVER ASM Price: $86.76 |
| 5 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 6 |
43-6810 |
SPIDER-TORQUE Price: $138.50 |
| 7 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 8 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 9 |
43-2690 |
SEE PB #747 Price: Call Us |
| 10 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 11 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 12 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 13 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 15 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 16 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 17 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 18 |
99-5694 |
NUT W/WASHER This part replaces 43-6800. Price: $3.86 |
| 19 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 20 |
21-8320 |
REFER TO(PB#807 OR MISC COMM SB#50) Price: Call Us |
| 21 |
99-5691 |
SCREW W/WASHER This part replaces 28-0660. Price: $7.18 |

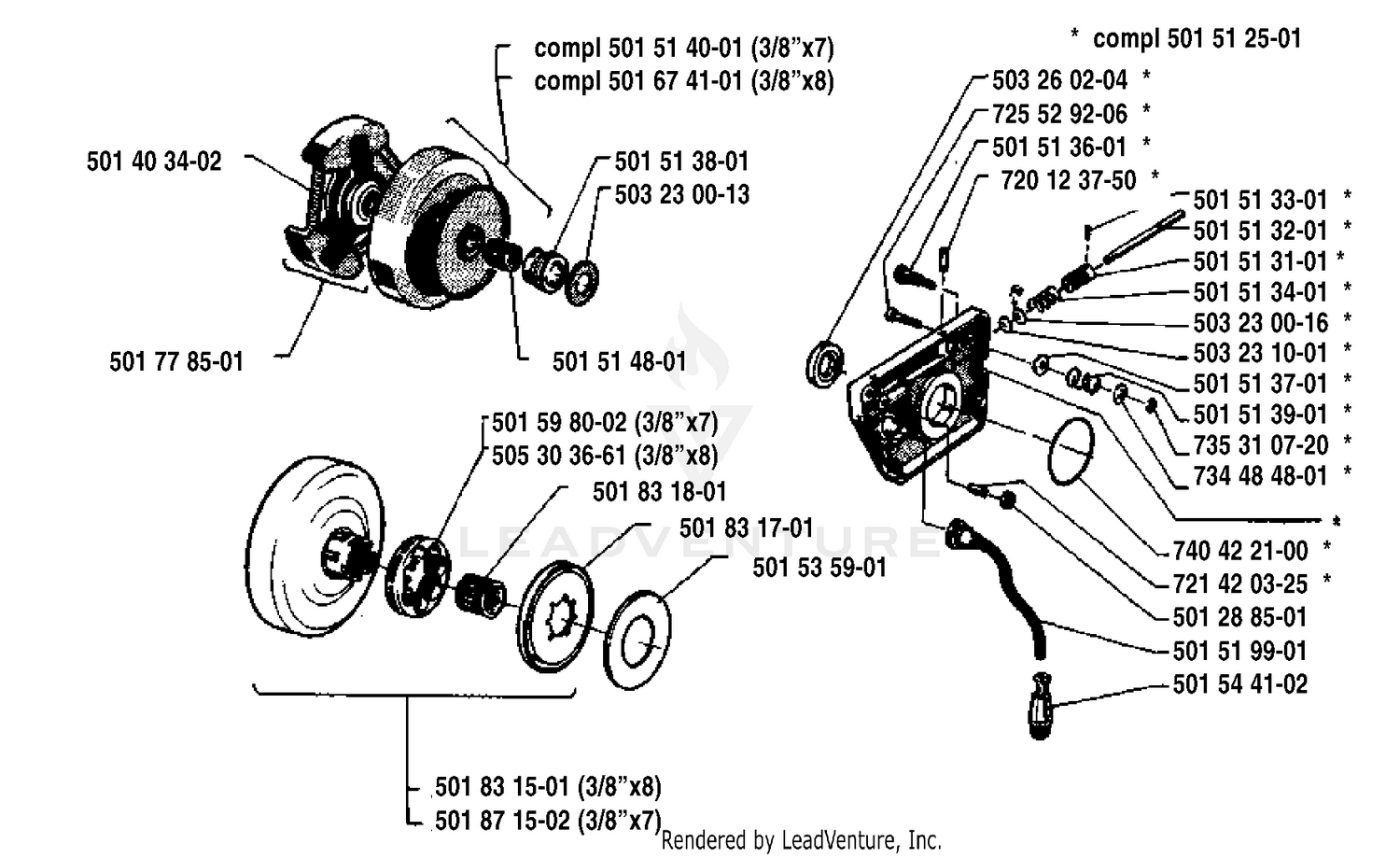

| 501288501 |
501288501 |
X-RING Price: $4.99 |
| 501403402 |
501403402 |
CLUTCH SPRING Price: $4.99 |
| 501512501 |
501512501 |
OIL PUMP Price: $99.99 |
| 501513101 |
501513101 |
GEAR WHEEL Price: $22.99 |
| 501513201 |
501513201 |
SHAFT Price: $6.99 |
| 501513301 |
501513301 |
SCREW Price: $2.99 |
| 501513401 |
501513401 |
SPRING Price: $4.99 |
| 501513601 |
501513601 |
CONTROL SCREW Price: $2.99 |
| 501513701 |
501513701 |
WASHER Price: $3.99 |
| 501513801 |
501513801 |
WORM WHEEL Price: $6.99 |
| 501513901 |
501513901 |
SPRING Price: $4.99 |
| 501514001 |
582034601 |
CLUTCH DRUM ASSY 3/8-7T This part replaces 501514001. Price: $59.99 |
| 501514801 |
501514801 |
SUPPORT BUSHING Price: $14.99 |
| 501519901 |
501519901 |
OIL HOSE Price: $8.99 |
| 501535901 |
501535901 |
WASHER Price: $4.99 |
| 501544102 |
501544102 |
OIL SCREEN Price: $14.99 |
| 501674101 |
582034601 |
CLUTCH DRUM ASSY 3/8-7T This part replaces 501674101. Price: $59.99 |
| 501778501 |
503744402 |
CLUTCH This part replaces 501778501. Price: $29.99 |
| 501831501 |
501831503 |
CLUTCH DRUM This part replaces 501831501. Price: $54.99 |
| 501831701 |
501831701 |
DUST PROTECTION Price: $6.99 |
| 503230013 |
503230013 |
WASHER 13.1X20 Price: $3.99 |
| 503230016 |
503230016 |
WASHER 5.1X8.5 Price: $3.99 |
| 503231001 |
503231001 |
Price: $1.40 |
| 503260204 |
503260204 |
SEALING RING Price: $11.99 |
| 720123750 |
720123750 |
PARALLEL PIN 3X18 Price: $3.99 |
| 721420325 |
721420325 |
SPRING PIN 3X6 Price: $2.99 |
| 725529206 |
725529356 |
SCREW MC6S 4X16 This part replaces 725529206. Price: $4.99 |
| 734484801 |
734484801 |
WASHER Price: $3.99 |
| 735310720 |
735310720 |
E-RING 3.2 Price: $2.99 |
| 740422100 |
740422100 |
O-RING Price: $3.99 |
