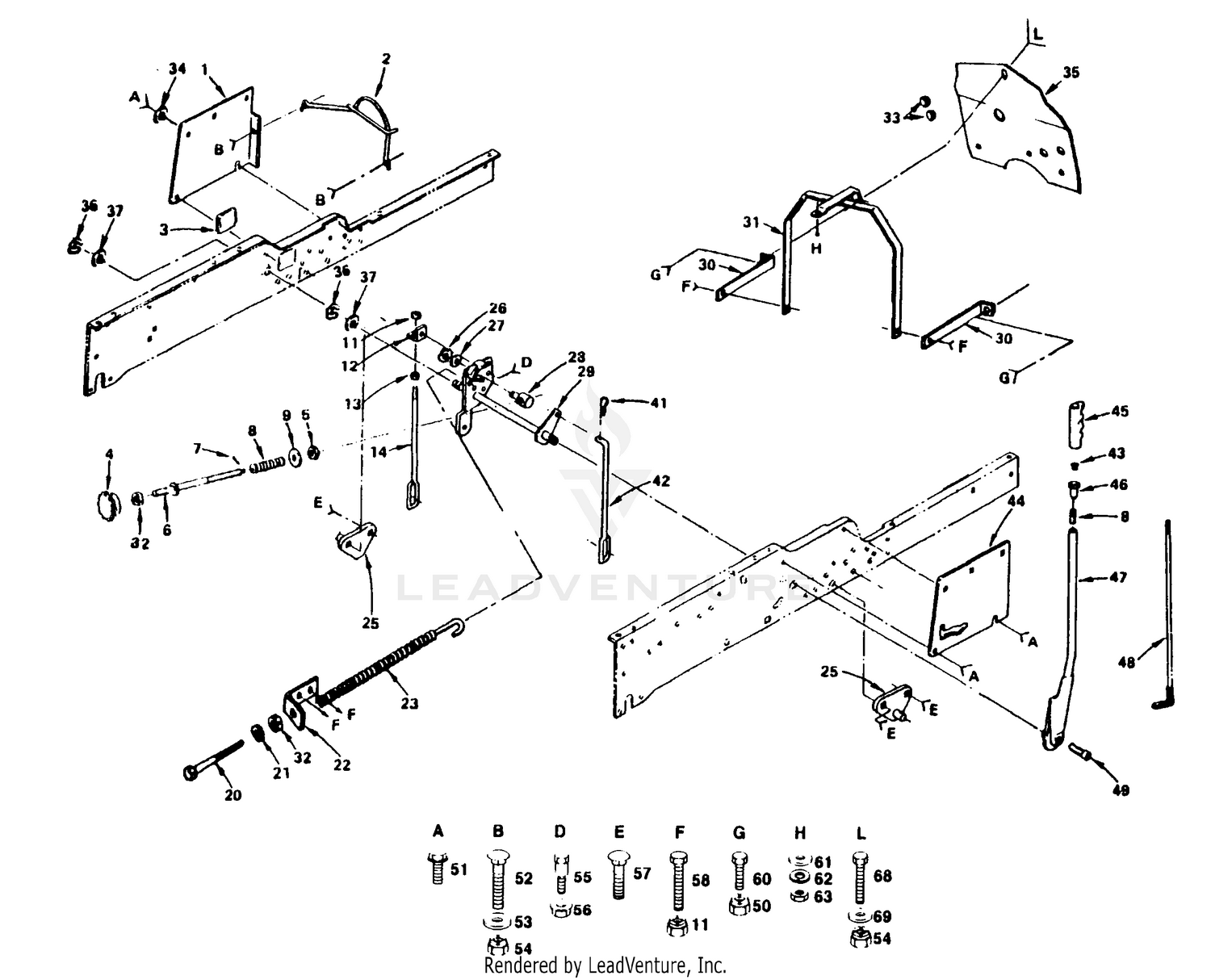

| Ref | Part Number | Description |
|---|
| 1 |
19-9520 |
DISCONTINUED X-REF Price: Call Us |
| 1 |
532121046 |
Panel, Side, L.H. Price: $12.66 |
| 2 |
321-3 |
SCREW-HH Price: $0.28 |
| 2 |
532126651 |
Guard Assembly, Belt, Engine (AYP part number) Price: $31.42 |
| 3 |
32152-4 |
NUT-LOCK, CONE Price: $1.29 |
| 3 |
532121794 |
Cover, Access (AYP part number) Price: $3.99 |
| 4 |
256-239 |
BEARING-PILLOW BLOCK Price: $4.61 |
| 4 |
532138057 |
Handle, Adjust, Lift (AYP part number) Price: $5.99 |
| 5 |
19-9560 |
SPRING SPACER Price: $7.53 |
| 5 |
532110807 |
Nut (AYP part number) Price: $3.99 |
| 6 |
19-9540 |
LH SPRING Price: $19.44 |
| 6 |
532110811 |
Rod, Adjust, Lift (AYP part number) Price: $3.68 |
| 7 |
19-9500 |
DISCONTINUED Price: Call Us |
| 7 |
876020308 |
Pin, Cotter (AYP part number) Price: $1.99 |
| 8 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 9 |
819131016 |
Washer 13/32 x 5/8 x 16 Gauge (AYP part number) Price: $3.99 |
| 11 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 12 |
532007594 |
Bracket, Lift, L.H. (AYP part number) Price: $5.46 |
| 13 |
873220600 |
Nut, Hex 3/8-16 (AYP part number) Price: $3.99 |
| 14 |
532007596 |
Link, Lift, L.H. (AYP part number) Price: $11.99 |
| 15 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 20 |
532005328 |
Bolt, Adjust, Spring, Assist (AYP part number) Price: $2.99 |
| 21 |
819131316 |
Washer 13/32 x 13/16 x 16 Gauge (AYP part number) Price: $2.99 |
| 22 |
532124671 |
Bracket, Spring, Assist (AYP part number) Price: $3.33 |
| 23 |
532124687 |
Spring Assembly, Assist, Lift (AYP part number) Price: $64.99 |
| 25 |
532105501 |
Bracket, Suspension (AYP part number) Price: $5.33 |
| 26 |
812000037 |
Ring, Klip (AYP part number) Price: $3.99 |
| 27 |
819151216 |
Washer 15/32 x 3/4 x 16 Gauge (AYP part number) Price: Call Us |
| 28 |
532110810 |
Trunnion, Stop Depth Price: $14.99 |
| 29 |
532124217 |
Shaft, Lift (AYP part number) Price: $59.99 |
| 30 |
532110903 |
Bracket, Shield, Heat, Side (AYP part number) Price: $2.38 |
| 31 |
532128141 |
Assembly, Support, Dash Price: $12.33 |
| 32 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 33 |
532009151 |
Grommet (AYP part number) This part replaces 532110436. Price: $2.99 |
| 34 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 35 |
532122085 |
Base, Shield, Heat (AYP part number) Price: $20.32 |
| 36 |
812000022 |
Klip, Ring (AYP part number) Price: $3.99 |
| 37 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Gauge (AYP part number) Price: $3.99 |
| 41 |
532124670 |
Retainer, Spring (AYP part number) Price: $5.99 |
| 42 |
532105503 |
Link, Lift, R.H. (AYP part number) Price: $2.82 |
| 43 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 44 |
532121045 |
Panel, Side, R.H. Price: $14.87 |
| 45 |
532109413 |
Grip, Handle (AYP part number) Price: $2.99 |
| 46 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 47 |
532121002 |
Lever Assembly, Lift (AYP part number) Price: $74.99 |
| 48 |
532121006 |
Rod Assembly, Lever (AYP part number) Price: $19.99 |
| 49 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874780624. Price: $3.99 |
| 50 |
873680400 |
Nut, Crownlock 1/4-20 (AYP part number) Price: $2.99 |
| 51 |
817490608 |
Screw, Hex Washer Thd. 3/8-16 x 1/2 (AYP part number) Price: $3.99 |
| 52 |
872140508 |
Bolt, Carriage 5/16-18 x 1 (AYP part number) Price: $2.99 |
| 53 |
819111610 |
Washer 11/32 x 1 x 10 Ga. (AYP part number) Price: $3.99 |
| 54 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 55 |
532007901 |
Bolt, Shoulder (AYP part number) Price: $4.99 |
| 56 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873900400. Price: $2.99 |
| 57 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 58 |
539990071 |
HCS 1/4-20. This part replaces 874780408. Price: $1.99 |
| 59 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 60 |
539990071 |
HCS 1/4-20. This part replaces 874780408. Price: $1.99 |
| 61 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 62 |
810040400 |
LOCKWASHER This part replaces 810090400. Price: $3.99 |
| 63 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 68 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
