| Ref | Part Number | Description |
|---|
| 1 |
136-8483 |
FRAME-PULL, RH This part replaces 92-9177. Price: $382.66 |
| 1 |
817541011 |
Screw, Tapping #10-24 x .668 Price: $9.47 |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 2 |

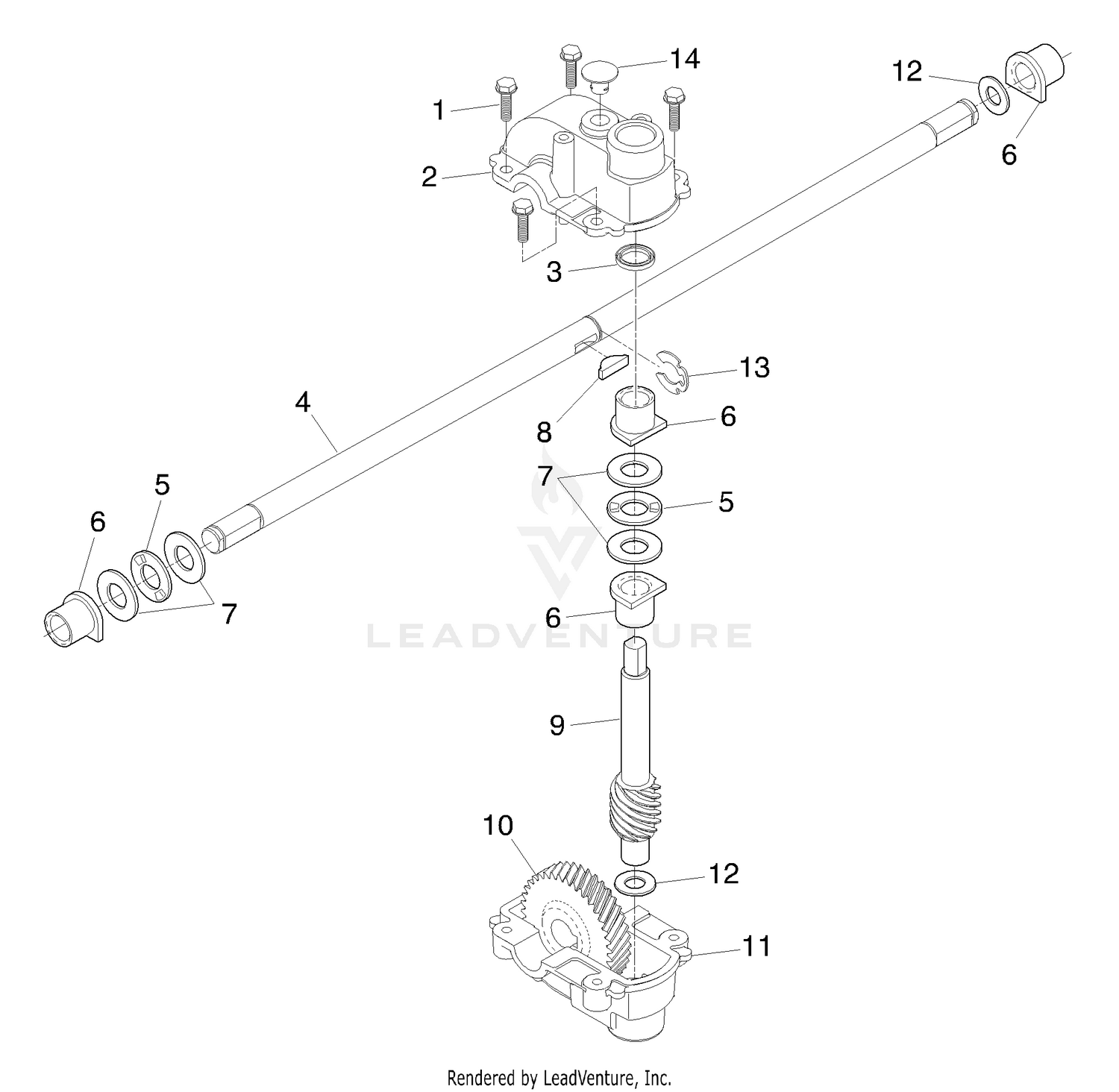

532160672 |
GEAR CASE, UPPER Price: $8.99 |
| 3 |
532057072 |
SEAL Price: $4.99 |
| 4 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 8-7710. Price: $16.35 |
| 4 |
532183908 |
SHAFT.DRIVE.HI-VAC.EZ Price: $32.99 |
| 5 |
532160818 |
BEARING, NEEDLE, THRUST Price: $4.99 |
| 6 |
532077881 |
BEARING Price: $24.99 |
| 7 |
532160817 |
WASHER, THRUST Price: $3.99 |
| 8 |
532850848 |
HI PRO KEY Price: $4.99 |
| 8 |
62-2440 |
LIFT ARM ASM Price: $130.13 |
| 9 |
532184134 |
SHAFT.WORM.HI-VAC Price: $13.99 |
| 9 |
62-2420-01 |
BAR ASM-LIFT, CTR ARM This part replaces 62-2420. Price: $70.22 |
| 10 |
532160679 |
GEAR, HELICAL Price: $27.99 |
| 10 |
63-8750 |
PIN-PIVOT Price: $4.20 |
| 11 |
532160676 |
KIT.GEARCASE.HALVES.RWGD.21" This part replaces 532160673. Price: $14.99 |
| 11 |
57-7650 |
SPRING-TORSION Price: $11.81 |
| 12 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 12 |
532057079 |
THRUST WASHER Price: $1.99 |
| 13 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 13 |
812000039 |
KLIP RING Price: $4.99 |
| 14 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 14 |
532086447 |
PLUG.AUGER.GEAR.BOX.SNOW Price: $3.99 |
| 15 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 16 |
5-1226 |
WASHER Price: $3.90 |
| 17 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 18 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 19 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 20 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 21 |
322-1 |
SCREW-HH Price: $0.22 |
| 22 |
105-3822 |
HYD CYLINDER ASM This part replaces 83-2580. Price: $533.45 |
| 23 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 24 |
115-3259 |
KIT-SERVICE, PIN This part replaces 10-6110. Price: $39.21 |
| 25 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 28 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 29 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 30 |
3-1506 |
BUSHING Price: $2.42 |
| 31 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 32 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 33 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 34 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 35 |
133-2337 |
ROLLER ASM This part replaces 52-2720. Price: $176.14 |
| 36 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 37 |
133-2378 |
BEARING This part replaces 251-141. Price: $23.28 |
| 38 |
237-78 |
O-RING Price: $3.85 |
| 39 |
92-9767 |
HOSE This part replaces 63-3880. Price: $69.61 |
