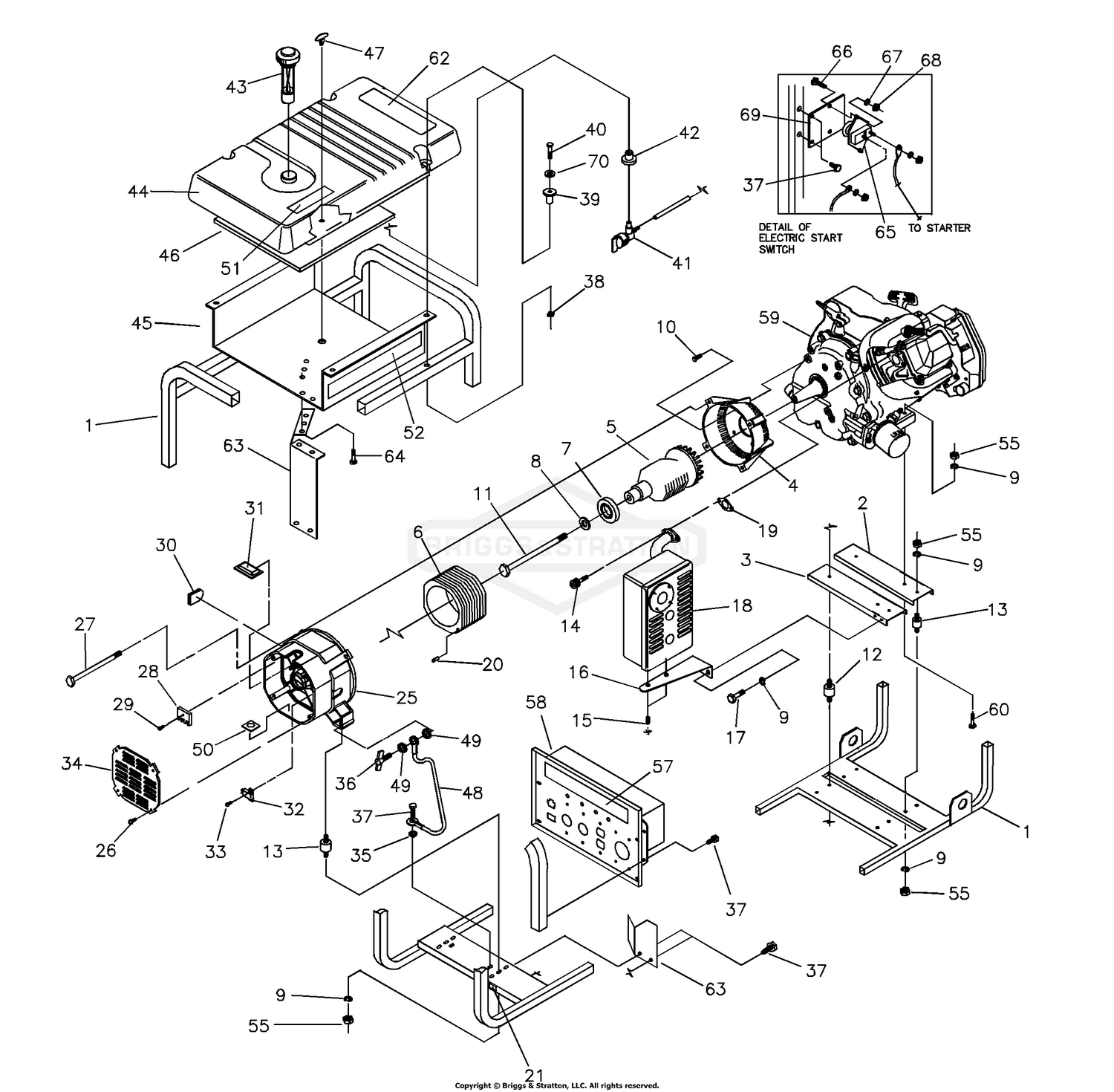

| Ref | Part Number | Description |
|---|
| 1 |
A92432GS |
CRADLE Price: $299.99 |
| 2 |
A92531GS |
SUPPORT, Engine Price: $17.60 |
| 3 |
M92731GS |
SUPPORT, Engine & Muffler This part replaces A92731GS. Price: $18.20 |
| 4 |
92247GS |
HOUSING, Engine Adapter Price: $86.95 |
| 5 |
B1342GGS |
ASSY, Rotor This part replaces B1342GS. Price: $419.99 |
| 6 |
B1897GS |
ASSEMBLY, Stator Price: Call Us |
| 7 |
65791GS |
BEARING Price: $32.00 |
| 8 |
67451GS |
WASHER, Special Flat - M8 Price: Call Us |
| 9 |
22129GS |
WASHER, Lock - M8 Price: $2.61 |
| 10 |
86307GS |
HHMS, 5/16-24 x 3/4 SEMS Price: $2.19 |
| 11 |
47481GS |
HHCS, 5/16-24 x 10.625 Price: $9.60 |
| 12 |
92609GS |
MOUNT, Vibration Price: $24.49 |
| 13 |
82857GS |
MOUNT, Vibration Price: $10.31 |
| 14 |
40976GS |
SCREW, M8 - 1.25 x 20 Price: $2.79 |
| 15 |
66476GS |
CAPSCREW, M6 - 1.0 x 12mm Price: $2.94 |
| 16 |
92532GS |
BRACKET, Muffler Price: $18.18 |
| 17 |
5025011X6SM |
BOLT, 5/16-18 X 3/4" This part replaces 22142GS. Price: $3.19 |
| 18 |
A7433GS |
MUFFLER This part replaces 91153GS. Price: $94.60 |
| 19 |
90239GS |
GASKET, Muffler Price: $3.73 |
| 20 |
81917GS |
PIN, Roll 4mm x 10 Price: $2.79 |
| 21 |
B4986GS |
DECAL, Ground Price: $2.75 |
| 25 |
SRV66825DGS |
CARRIER, Rear Bearing This part replaces 66825CGS. Price: $120.36 |
| 26 |
74908GS |
TAPTITE, M5-0.8 x 10 Price: $2.69 |
| 27 |
66449LGS |
BOLT Price: $28.08 |
| 28 |
65795GS |
RECTIFIER, Battery Charge Price: $10.80 |
| 29 |
66849CGS |
TAPTITE, M5-0.8 x 30 Price: $3.79 |
| 30 |
67022GS |
GROMMET, Rubber Price: $2.55 |
| 31 |
84132GS |
ASSEMBLY, Power Regulator Price: $31.80 |
| 32 |
66386GS |
ASSEMBLY, Brush Holder Price: $21.52 |
| 33 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 34 |
B78388GS |
COVER, Bearing Carrier Price: Call Us |
| 35 |
22769GS |
WASHER, Shakeproof Int. #10 Price: $2.49 |
| 36 |
86494GS |
SCREW, M6-1.0 x 16 Wing Price: $2.51 |
| 37 |
B2153GS |
HHCS, - #10 Self Driller Price: $3.95 |
| 38 |
77395GS |
NUT, Flange Lock - M6 Price: $3.09 |
| 39 |
83465GS |
GROMMET, Tank Price: $3.39 |
| 40 |
57058GS |
HHMS, M6-1.0 x 55 Price: $2.59 |
| 41 |
192980GS |
Kit, Valve This part replaces 80270GS. Price: $16.43 |
| 42 |
192980GS |
Kit, Valve This part replaces 78299GS. Price: $16.43 |
| 43 |
B4363GS |
CAP, with Gauge, Fuel Price: $38.55 |
| 44 |
193500GS |
ASSY,Tank, Fuel This part replaces B1998GS. Price: $105.70 |
| 45 |
B92039GS |
SHIELD, Heat Price: $38.00 |
| 46 |
92665GS |
INSULATION, #2-1/4" Thick Price: $10.30 |
| 47 |
85000GS |
CLIP, Insulation Price: $2.59 |
| 48 |
195373GS |
WIRE, Ground This part replaces 14353621GS. Price: $1.85 |
| 49 |
26850GS |
WASHER, Ext. M6 - 1/4" Shakeproof Price: $2.60 |
| 50 |
57593GS |
MOUNT, Cable Tie Price: $4.29 |
| 51 |
194799GS |
DECAL, Danger This part replaces 92982GS. Price: $10.48 |
| 52 |
B4569GS |
DECAL, Heat Shield Price: Call Us |
| 55 |
25244GS |
NUT, 5/16-18 Hex Price: $2.59 |
| 57 |
B4569GS |
DECAL, Control Panel Price: Call Us |
| 58 |
B4366GS |
ASSEMBLY, Control Box Price: $349.99 |
| 59 |
~NSP |
ENGINE Price: Call Us |
| 60 |
5025011X14SM |
BOLT, 5/16-18 X 1-3/4 This part replaces 22531GS. Price: $3.40 |
| 62 |
93826GS |
DECAL, Start Instructions Price: $1.85 |
| 63 |
192983GS |
SHIELD, Heat This part replaces B96068GS. Price: $30.99 |
| 64 |
56893GS |
CRIMPTITE, 10-24 x 1/2 Price: $1.95 |
| 65 |
77282GS |
SWITCH, Starter Price: $71.44 |
| 66 |
5025010X6SM |
BOLT, 1/4-20 X 3/4" G This part replaces 22287GS. Price: $3.29 |
| 67 |
22097GS |
WASHER Price: $3.05 |
| 68 |
22127GS |
NUT, Hex, 1/4-20 Price: Call Us |
| 69 |
78289GS |
BRACKET, Starter Switch Price: Call Us |
| 70 |
703332 |
WASHER This part replaces 22473GS. Price: $3.72 |
