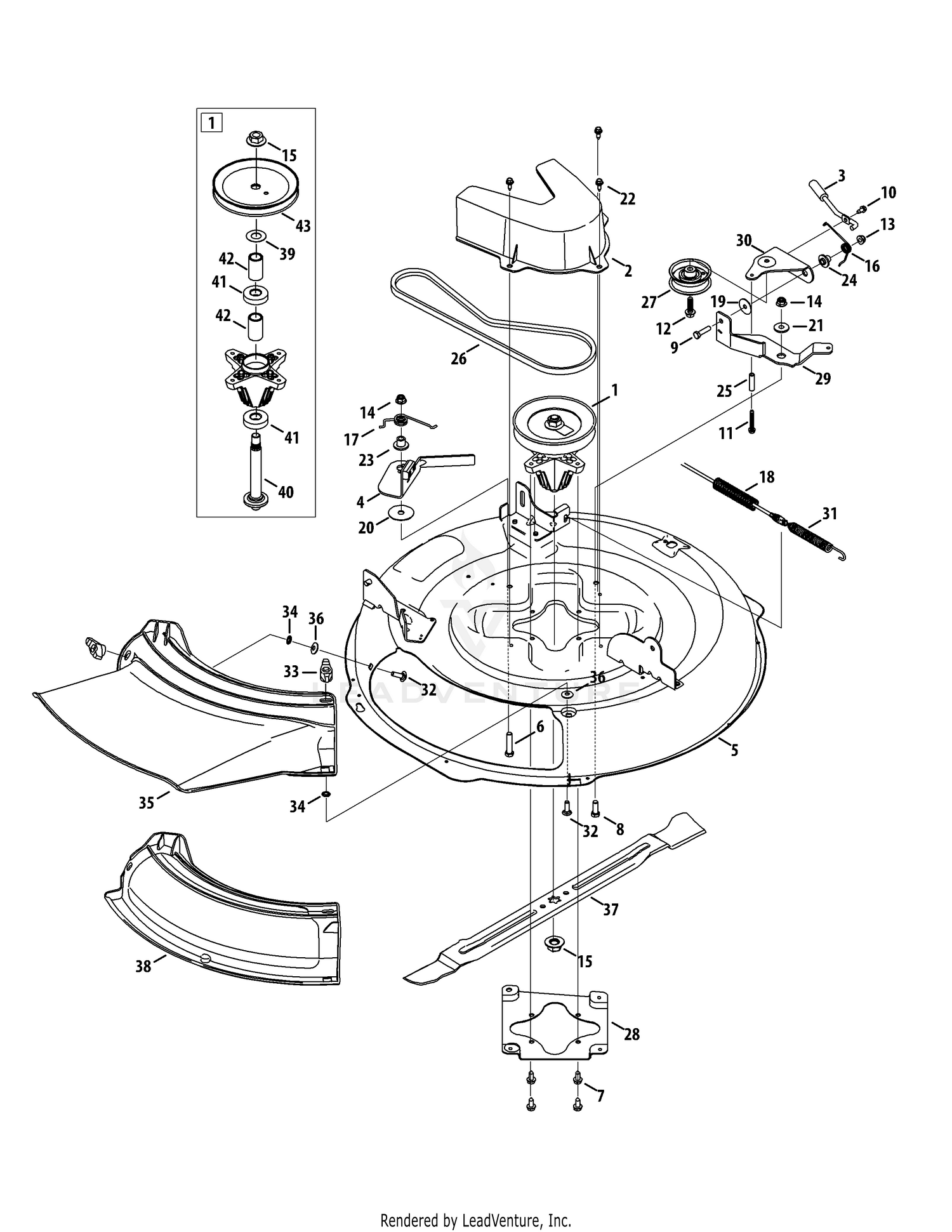

| Ref | Part Number | Description |
|---|
| 1 |
918-04822B |
SPINDLE ASSEMBLY This part replaces 918-04822A. Price: $112.61 |
| 2 |
631-05024 |
Deck Belt Cover Price: $25.19 |
| 3 |
647-05028 |
Idler Rod Assembly Price: $16.78 |
| 4 |
983-05034 |
PTO Brake Assembly Bracket Price: $14.87 |
| 6 |
710-0347 |
Hex Cap Screw, 3/8-16 x 1.75 Price: $4.39 |
| 7 |
710-1260A |
Tap Screw, 5/16-18, .750 Price: $3.34 |
| 8 |
710-0514 |
Hex Head Screw, 3/8-16, 1.00 Price: $3.78 |
| 9 |
710-0528 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $3.90 |
| 10 |
710-0599 |
Tap Scew, 1/4-20, 0.500 Price: $3.86 |
| 11 |
710-1026 |
Tap Screw, 1/4-20, 1.750 Price: $5.94 |
| 12 |
710-1315 |
Tap Screw, 3/8-16, 1.250 Price: $3.90 |
| 13 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 14 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 15 |
712-0417A |
HEX NUT Price: $6.50 |
| 16 |
732-05045 |
PTO Torsion Spring Price: $3.70 |
| 17 |
732-05046 |
Brake Torsion Spring Price: $3.70 |
| 18 |
732-0583 |
Compression Spring, .625 x 4.0 Price: $10.65 |
| 19 |
736-0362 |
Flat Washer, .330x1.250x.060 Price: $3.93 |
| 20 |
736-3040 |
Flat Washer, .406 x 1.920 x .060 Price: $5.52 |
| 21 |
938-0347 |
Shoulder Spacer, .625 ID X .169 Price: $8.93 |
| 22 |
738-04184A |
Shoulder Screw, .368 X.113: 1/4-20 Price: $5.99 |
| 23 |
738-05021 |
Shoulder Spacer, .173 x .625 x .563 Price: $3.70 |
| 24 |
738-05022 |
Shoulder Spacer, .134 x .500 x .438 Price: $3.74 |
| 25 |
750-04456 |
Spacer, .260 X .372 X 1.420 LG Price: $6.20 |
| 26 |
954-05001 |
V-Type Belt, 43.5 LG Price: $42.39 |
| 27 |
756-04224 |
Flat Idler Pulley, 2.75 OD Price: $24.80 |
| 28 |
783-08047A |
Deck Spindle Support Bracket Price: $13.83 |
| 29 |
783-08128 |
Lower Floating Idler Bracket Price: $14.87 |
| 30 |
783-08226A-0637 |
FLOATING IDLER BRACKET This part replaces 783-08226-0637. Price: $11.07 |
| 31 |
946-04802A |
PTO Cable Price: $33.53 |
| 32 |
710-04998 |
Carriage Screw, 5/16-18, 1.00 Price: $4.89 |
| 33 |
720-04122 |
Wing Knob, 5/16-18 Price: $5.87 |
| 34 |
726-0201 |
Speed Nut, .3125 ID Price: $6.01 |
| 35 |
731-10267 |
Chute Deflector Price: $28.32 |
| 36 |
736-0242 |
Bevel Washer, .340X.872X.060 Price: $3.75 |
| 37 |
942-04385 |
Cutting Blade, 30.00" 3-IN-1 Price: $34.97 |
| 38 |
731-09312 |
Mulch Plug Price: $21.06 |
| 39 |
736-0351 |
Washer, Flat, .760 ID x 1.5 OD This part replaces 936-0351. Price: $3.93 |
| 40 |
738-1186A |
Spindle Shaft, 6.11 LG. Price: $45.83 |
| 41 |
741P0919B |
BALL BEARING This part replaces 941-0919B. Price: $18.90 |
| 42 |
750-04936 |
Spacer, .792 X 1.060 X 1.860 LG Price: $5.94 |
