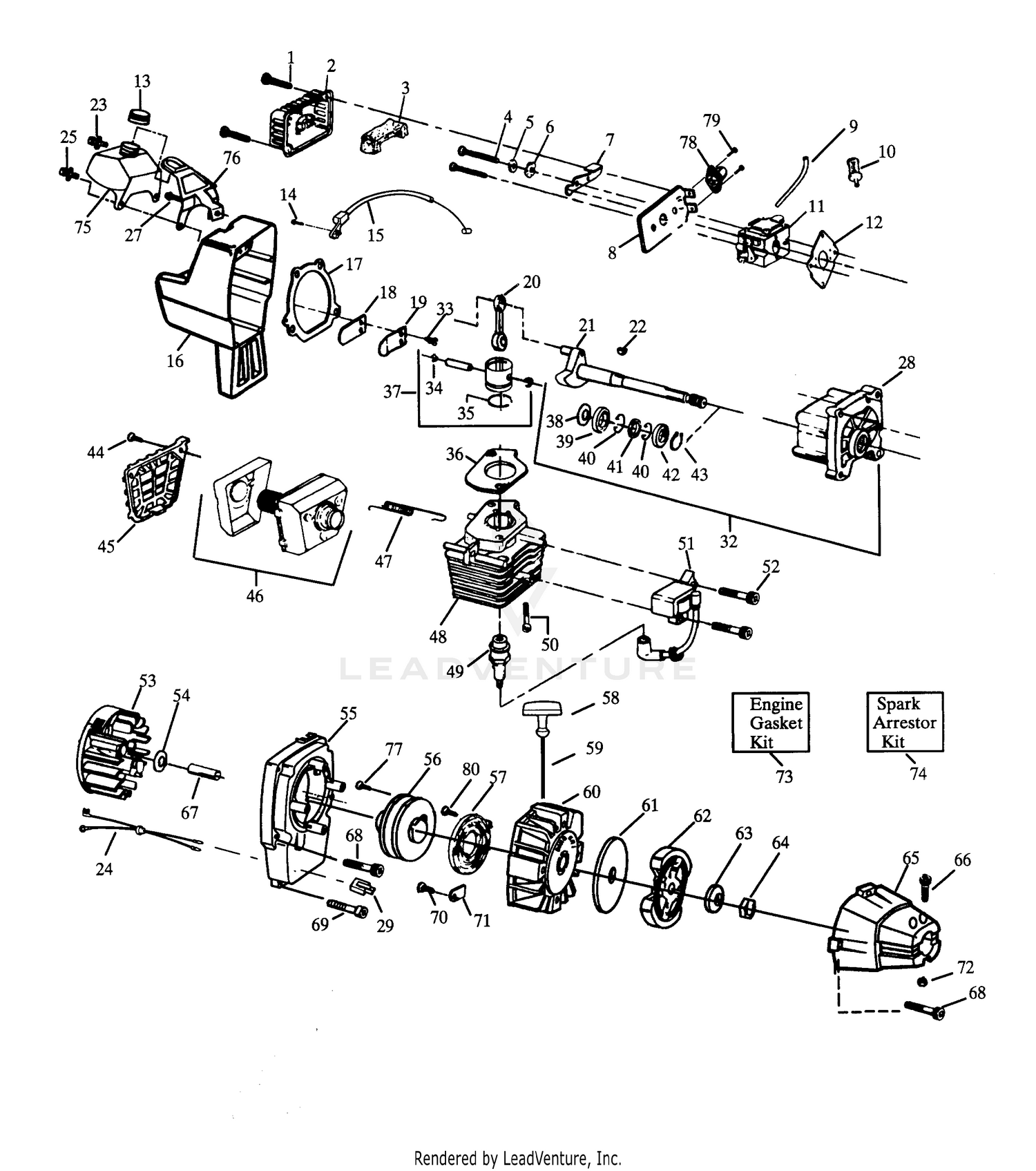

| Ref | Part Number | Description |
|---|
| 1 |
107-7773 |
SCREW-HSH Price: $8.36 |
| 1 |
530015773 |
Screw Price: $1.99 |
| 2 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 2 |
530027529 |
Air Filter Cover Price: $3.42 |
| 3 |
112-1738 |
FRONT GRASS SHIELD ASM Price: $48.60 |
| 3 |
530027530 |
Air Filter Price: $1.99 |
| 4 |
125-2099 |
SHIELD-GRASS, REAR This part replaces 112-1735-01. Price: $60.31 |
| 4 |
530015849 |
Screw Price: $1.99 |
| 5 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 5 |
530015852 |
Spacer Price: $1.99 |
| 6 |
322-14 |
SCREW-HH Price: $1.01 |
| 6 |
530015254 |
Wave Washer Price: $1.99 |
| 7 |
530038103 |
Choke Shutter Price: $1.99 |
| 8 |
530037930 |
Air Filter Plate Price: $2.99 |
| 9 |
530069247 |
Fuel Line, Fuel Line Price: $3.99 |
| 9 |
530069571 |
Fuel Line, Return Line Price: $2.99 |
| 10 |
530095646 |
Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 11 |
530069651 |
Carburetor (WT-298A) w/ Limiter Caps Price: $18.32 |
| 12 |
530019156 |
Carburetor Gasket Price: $3.99 |
| 13 |
530014347 |
Fuel Cap Ass'y. Price: $4.99 |
| 14 |
530015775 |
Screw Price: $1.99 |
| 15 |
530047040 |
Throttle Cable Ass'y Price: $8.99 |
| 16 |
530027923 |
Shroud. Price: $8.24 |
| 17 |
530019154 |
Crankcase/Shroud Gasket Price: $1.99 |
| 18 |
530027593 |
Reed Price: $1.99 |
| 19 |
530027594 |
Reed Stop Price: $1.99 |
| 20 |
530010960 |
Connecting Rod Ass'y. (Incl. Bearings) Price: $14.99 |
| 21 |
530010934 |
Crankshaft Ass'y. See Service Ref. 1 Price: $24.99 |
| 22 |
530015126 |
Flywheel Key Price: $1.99 |
| 23 |
530015843 |
Screw Price: $1.99 |
| 24 |
530047145 |
Leadwire/Grommet Ass'y. Price: $2.99 |
| 25 |
530015771 |
Screw Price: $1.99 |
| 27 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 28 |
530014016 |
Crankcase Ass'y. (Incl. 39-42) Price: Call Us |
| 29 |
530038205 |
Connector-Male Price: $1.99 |
| 32 |
530071705 |
Assy-C'case/C'shaft This part replaces 530014015. Price: $29.99 |
| 33 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 34 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 35 |
530025875 |
Piston Ring Price: $4.99 |
| 36 |
530019267 |
GASKET CYL W/ ADHESIVE This part replaces 530019178. Price: $2.99 |
| 37 |
530069899 |
Piston Kit This part replaces 530069275. Price: $19.99 |
| 39 |
530032103 |
Inner Bearing Price: Call Us |
| 40 |
530015787 |
Retaining Ring Price: $1.99 |
| 41 |
530019158 |
Crankshaft Seal Price: $2.99 |
| 42 |
530032102 |
Outer Bearing Price: $8.99 |
| 43 |
530015789 |
Crankshaft Retaining Ring Price: $2.99 |
| 44 |
530015717 |
Screw Price: $1.99 |
| 45 |
530027781 |
Muffler Guard Price: $1.99 |
| 46 |
530069310 |
Muffler Kit This part replaces 530069257. Price: $9.99 |
| 47 |
530036409 |
Muffler Attachment Spring Price: $1.99 |
| 48 |
530069626 |
Cylinder Price: $1.92 |
| 49 |
530030075 |
Spark Plug, Type 2 (RCJ-8Y) Price: Call Us |
| 49 |
530030077 |
Spark Plug, Type 1 (CJ-14) Price: $2.27 |
| 50 |
530015239 |
Screw Price: $1.99 |
| 51 |
530039134 |
Ignition Module Kit Price: $44.99 |
| 52 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 53 |
530039189 |
Flywheel Ass'y. Price: $22.99 |
| 54 |
530016030 |
Washer Price: $1.99 |
| 55 |
530027947 |
Fan Housing Price: $11.99 |
| 56 |
530071387 |
Kit-Starter Pulley This part replaces 530069291. Price: $6.99 |
| 57 |
545008010 |
STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 58 |
530027569 |
Starter Handle Price: $1.99 |
| 59 |
530069232 |
Rope Kit Price: $3.99 |
| 60 |
530014022 |
Pulley Housing Ass'y. Price: $5.99 |
| 61 |
530094189 |
Clutch Washer Price: $2.99 |
| 62 |
530069254 |
Clutch Ass'y. Kit Price: $8.99 |
| 63 |
530015796 |
Washer Price: $1.99 |
| 64 |
530001733 |
Nut Price: $2.99 |
| 65 |
530014023 |
Clutch Housing Price: $3.33 |
| 66 |
530015767 |
Screw Price: $1.99 |
| 67 |
530027511 |
Spacer Price: $4.99 |
| 68 |
530015770 |
Screw Price: Call Us |
| 69 |
530015769 |
Screw Price: $1.99 |
| 70 |
530015496 |
Screw Price: $1.99 |
| 71 |
530027523 |
Retainer Price: $2.99 |
| 72 |
530015768 |
Locknut Price: $1.99 |
| 73 |
530069276 |
Engine Gasket Kit (Inc. 12,36,17) Price: $4.99 |
| 74 |
952701612 |
Spark Arrestor Kit Price: Call Us |
| 75 |
530038166 |
Fuel Tank Ass'y. Price: $19.99 |
| 76 |
530029370 |
Fuel Tank Mtg. Bracket Price: $7.99 |
| 77 |
530016080 |
Screw (Incl. in Starter Pulley Kit) Price: $1.99 |
| 78 |
530038874 |
Primer Bulb Ass'y. Price: $5.99 |
| 79 |
530016091 |
Screw-Primer Price: $1.99 |
| 80 |
530015882 |
Screw-Starter Spring Type 2 Price: $1.99 |
