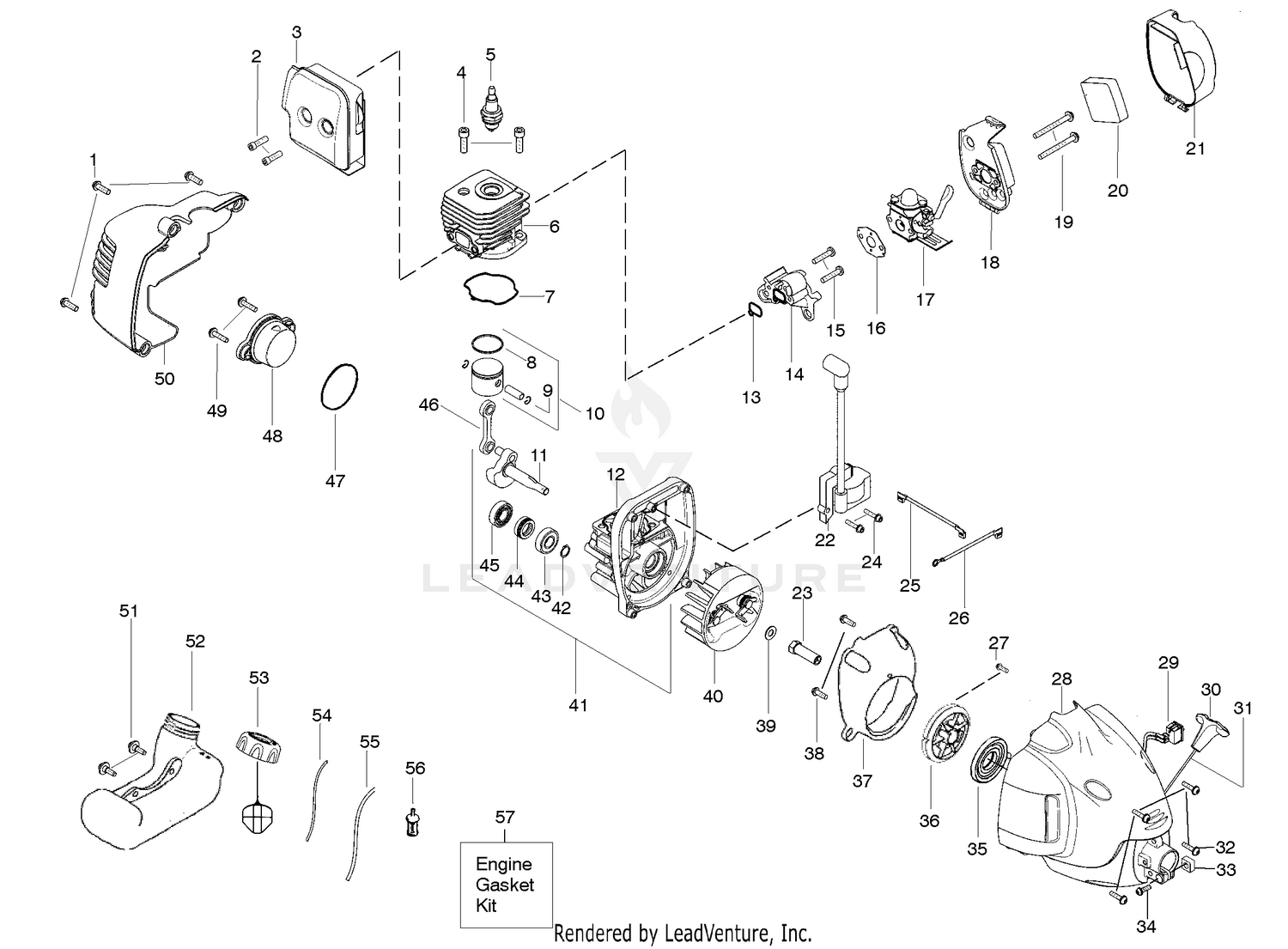

| Ref | Part Number | Description |
|---|
| 1 |
530015880 |
Screw Price: $1.99 |
| 1 |
98-9462 |
ELEMENT-PUMP Price: $282.73 |
| 2 |
530058982 |
Bolt-Muffler Price: $1.99 |
| 2 |
98-9423 |
O-RING Price: $6.07 |
| 3 |
98-9443 |
PIN-JOINT Price: $13.13 |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 4 |
98-9434 |
FLANGE-SLEEVE Price: $17.25 |
| 5 |
952030249 |
Spark Plug (RCJ 6Y) Price: Call Us |
| 5 |
98-9421 |
VALVE-DELIVERY Price: $116.98 |
| 6 |
530012541 |
Cylinder Price: $11.99 |
| 6 |
98-9424 |
SPRING-VALVE, DELIVERY Price: $21.66 |
| 7 |
530071750 |
Seal-Cylinder (kit) Price: $8.99 |
| 7 |
98-9425 |
GASKET-VALVE, DELIVERY Price: $10.58 |
| 8 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 8 |
98-9447 |
O-RING Price: $18.23 |
| 9 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 9 |
98-9652 |
HOLDER-VALVE, DELIVERY Price: $111.74 |
| 10 |
98-9452 |
SCREW Price: $7.23 |
| 11 |
530012555 |
Assy-Crankshaft Price: $17.99 |
| 11 |
98-9422 |
TAPPET ASM Price: $275.51 |
| 12 |
98-9433 |
SHIM Price: $2.13 |
| 13 |
530071750 |
Seal-Cyl/Carb.(kit) Price: $8.99 |
| 13 |
98-9429 |
SEAT-SPRING, LOWER Price: $50.60 |
| 14 |
530057547 |
Adapter-Carb. Price: $7.99 |
| 14 |
98-9428 |
SPRING-PLUNGER Price: $32.36 |
| 15 |
530016309 |
Screw Price: $1.99 |
| 15 |
98-9427 |
SEAT-SPRING, UPPER Price: $16.02 |
| 16 |
530071750 |
Gasket-Carb. (kit) Price: $8.99 |
| 16 |
98-9432 |
SLEEVE-CONTROL Price: $107.77 |
| 17 |
530071752 |
Kit-Carb. Zama (C1U-W18) Price: $29.99 |
| 17 |
98-9466 |
PLUG Price: $12.54 |
| 18 |
530057544 |
Air Box Price: $6.99 |
| 18 |
98-9451 |
GASKET Price: $1.92 |
| 19 |
530016429 |
Screw Price: $1.99 |
| 19 |
98-9445 |
GASKET Price: $1.84 |
| 20 |
530036575 |
Foam-Air Filter Price: $1.49 |
| 20 |
98-9464 |
BOLT-JOINT Price: $20.48 |
| 21 |
530058740 |
Cover-Air Box Price: $5.99 |
| 21 |
98-9446 |
GASKET Price: $2.50 |
| 22 |
545081826 |
KIT MODULE W/O INTERRUPT This part replaces 530039234. Price: $31.99 |
| 22 |
98-9430 |
SCREW Price: $19.45 |
| 23 |
530027953 |
Coupling-Drive Price: $1.99 |
| 23 |
98-9643 |
INJECTION PUMP ASM This part replaces 98-9463. Price: $2,551.99 |
| 24 |
530016357 |
Screw Price: $1.99 |
| 24 |
98-9465 |
PLATE Price: $9.73 |
| 25 |
530014663 |
Assy-Leadwire Price: $5.99 |
| 25 |
98-9442 |
SCREW Price: $26.58 |
| 26 |
530014662 |
Assy-Ground Wire Price: $4.99 |
| 26 |
98-9426 |
PIN-GUIDE, TAPPET Price: $7.65 |
| 27 |
530016391 |
Screw Price: $1.99 |
| 28 |
530071732 |
Assy.-Fan Hsg Price: $15.99 |
| 29 |
530071356 |
Kit-Switch Price: $4.99 |
| 30 |
530058742 |
Handle-Starter Price: $2.99 |
| 31 |
530071798 |
Kit - Rope Price: $3.99 |
| 32 |
530016386 |
Screw This part replaces 530015810. Price: $5.99 |
| 33 |
530016382 |
Nut 12-24 Price: $2.99 |
| 34 |
530016381 |
Screw 12-24 Price: $2.99 |
| 35 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 36 |
545081852 |
Kit - Starter Pulley This part replaces 530071797. Price: $9.99 |
| 37 |
530057548 |
Baffle Price: $6.99 |
| 38 |
530015880 |
Screw Price: $1.99 |
| 39 |
530015828 |
Washer-Flat Price: $1.99 |
| 40 |
530054115 |
Assy-Flywheel Price: $27.99 |
| 42 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 43 |
530055728 |
Outer Bearing Price: $6.99 |
| 44 |
530019264 |
Seal-C'case Price: $2.99 |
| 45 |
530019264 |
Inner Bearing Price: $2.99 |
| 46 |
530019264 |
Kit-Conn. Rod Assy Price: $2.99 |
| 47 |
530019264 |
O-Ring-C'case (kit) Price: $2.99 |
| 49 |
530019264 |
Screw Price: $2.99 |
| 50 |
530019264 |
Shroud-Rear Price: $2.99 |
| 51 |
530019264 |
Retainer-Tank Price: $2.99 |
| 53 |
530019264 |
Assy-Fuel Cap Price: $2.99 |
| 54 |
530019264 |
Kit-Fuel Line (Small) Price: $2.99 |
| 55 |
530019264 |
Kit-Fuel Line (Large) Price: $2.99 |
| 56 |
530019264 |
Assy-Fuel Pickup Price: $2.99 |
