Home / OPE / G0061103 / CARBURETOR

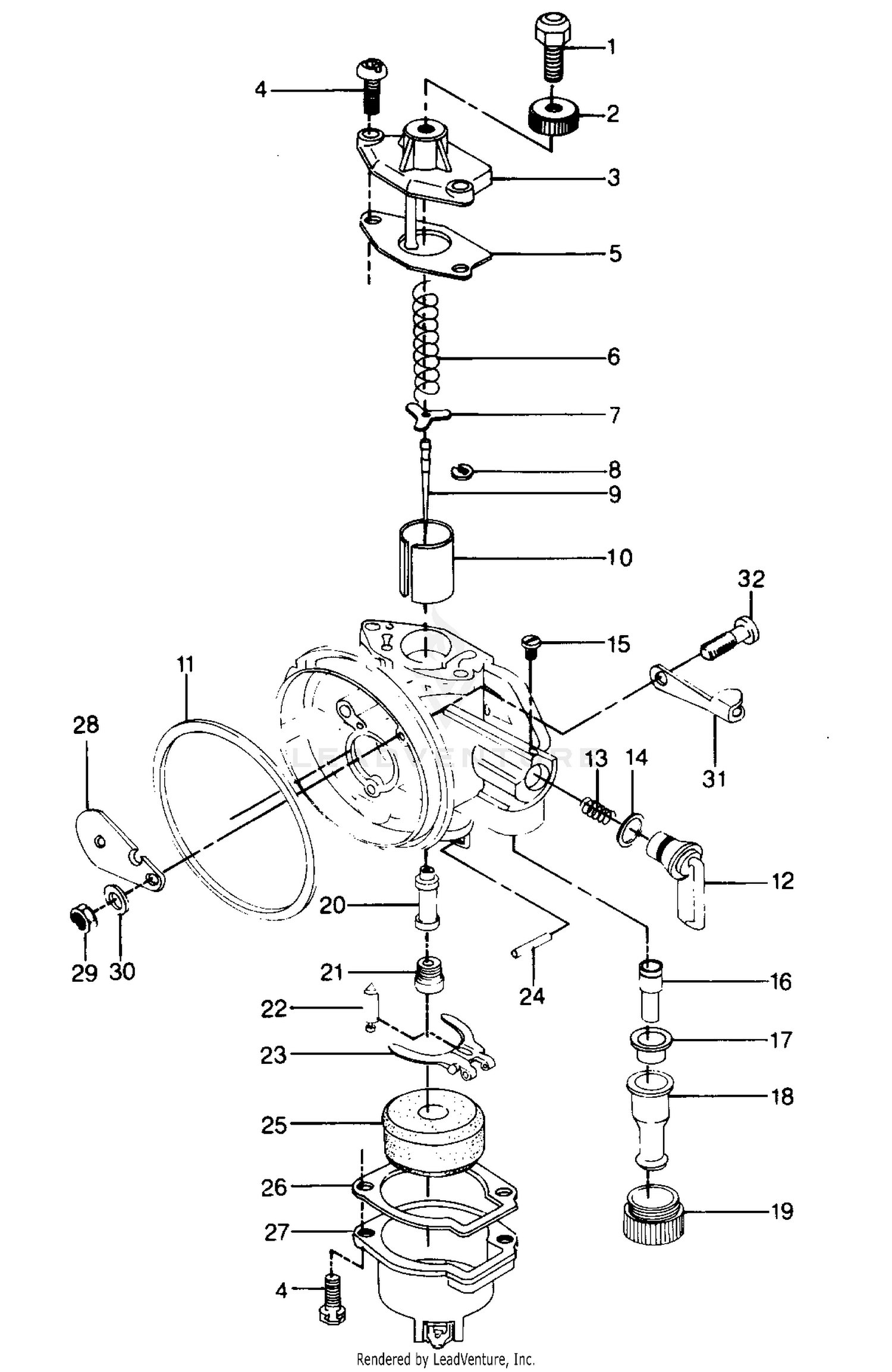

CARBURETOR

CARBURETOR

Parts (32)

RefPart NumberDescription
1 530094361 Adjuster - cable Price: $3.33
1 SGH08701-03 HEAD-TINE, ADAPTER Price: $272.95
2 530094362 Nut - lock Price: $3.33
3 530094363 Cover - Body Price: $3.33
4 530094364 Screw (4 x 12mm) Price: $3.33
5 530094365 Gasket Price: $3.33
6 530094366 Spring - throttle Price: $3.33
7 530094367 Retainer - spring Price: $3.33
8 530094368 E-Ring Price: $3.33
9 530094369 Needle - jet Price: $3.33
10 530094370 Valve - throttle Price: $3.33
11 530094371 O-Ring Price: $3.33
12 530094372 Lever Price: $3.33
13 530094373 Spring Price: $3.33
14 530094374 O-Ring Price: $3.33
15 530094375 Screw - guide Price: $3.33
16 530094376 Strainer Price: $3.33
17 530094377 Gasket Price: $3.33
18 530094378 Connector Price: $3.33
19 530094379 Nut - Connector Price: $3.33
20 530094380 Jet - needle Price: $3.33
21 530094381 Jet - main (#88) Price: $3.33
22 530094382 Valve - needle Price: $3.33
23 530094383 Hinge, float Price: $3.33
24 530094384 Pin - float Price: $3.33
25 530094385 Float Price: $3.33
26 530094386 Gasket Price: $3.33
27 530094387 Float Bowl Assembly Price: $3.33
28 530094388 Valve - choke Price: $3.33
29 530094389 Nut Price: $3.33
30 530094390 Washer - spring Price: $3.33
31 530094391 Lever - choke Price: $3.33
