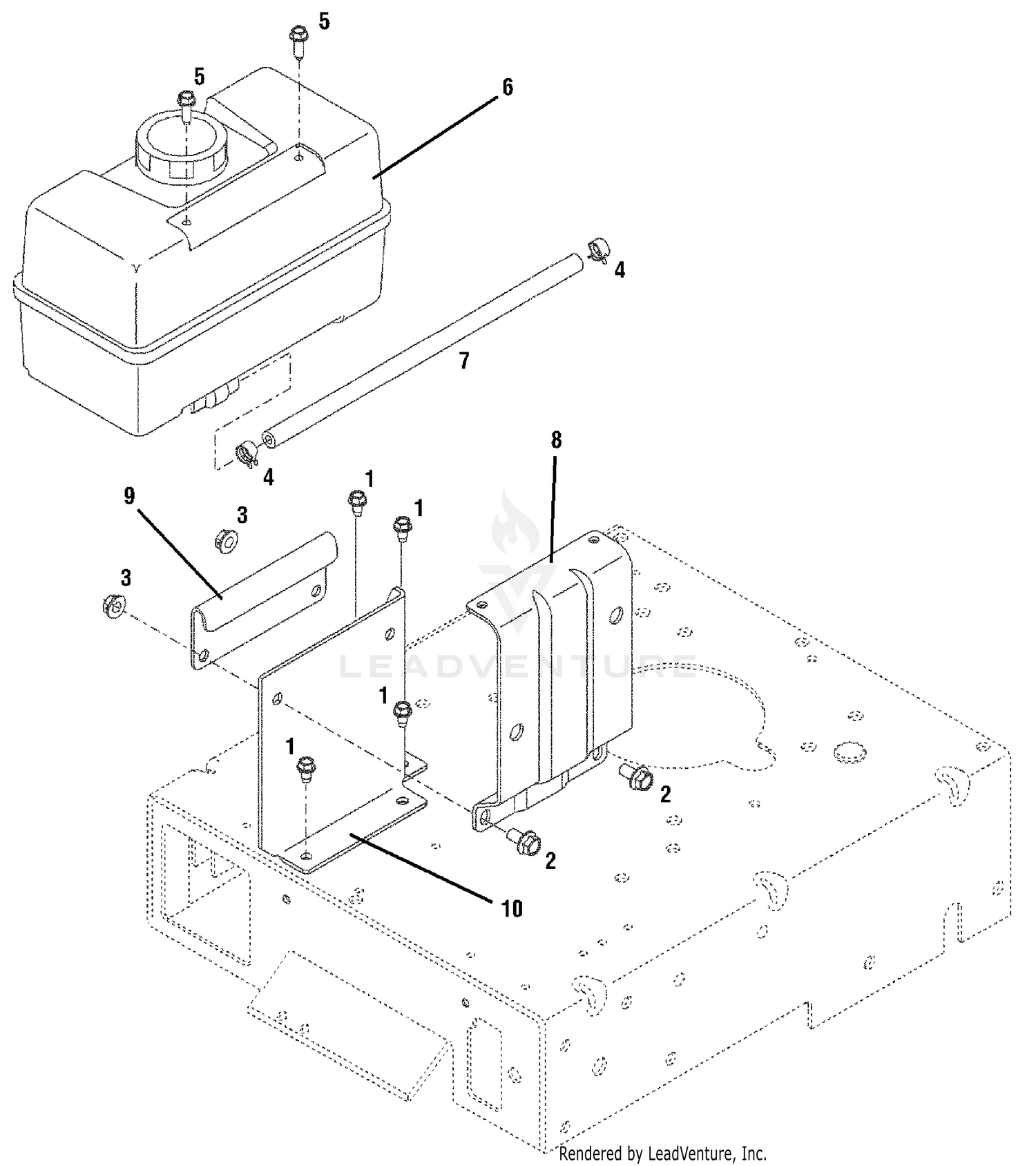

Fuel Tank Assembly
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710-0599 | Self-tapping Screw, 1/4-20 x 1/2 Price: $3.86 |
| 2 | 710-0759 | SCREW 5/16-18 x .625 GR5 Not Available Price: |
| 3 | 712-3004A | HEX FLANGE NUT Price: $3.49 |
| 4 | 726-0205 | Hose Clamp Price: $3.71 |
| 5 | 751B095337 | SCREW:K80 Not Available Price: |
| 7 | 751-0535 | Fuel Line, 12" Price: Call Us |
| 8 | 781-0497 | TANK MOUNTING BRACKET Not Available Price: |
| 9 | 781-0498-0638 | TANK SUPPORT BRACKET(MTD RED) Not Available This part replaces 781-0498. Price: |
