| Ref | Part Number | Description |
|---|
| 1 |
111-8496-03 |
CONTROL ARM ASM Price: Call Us |

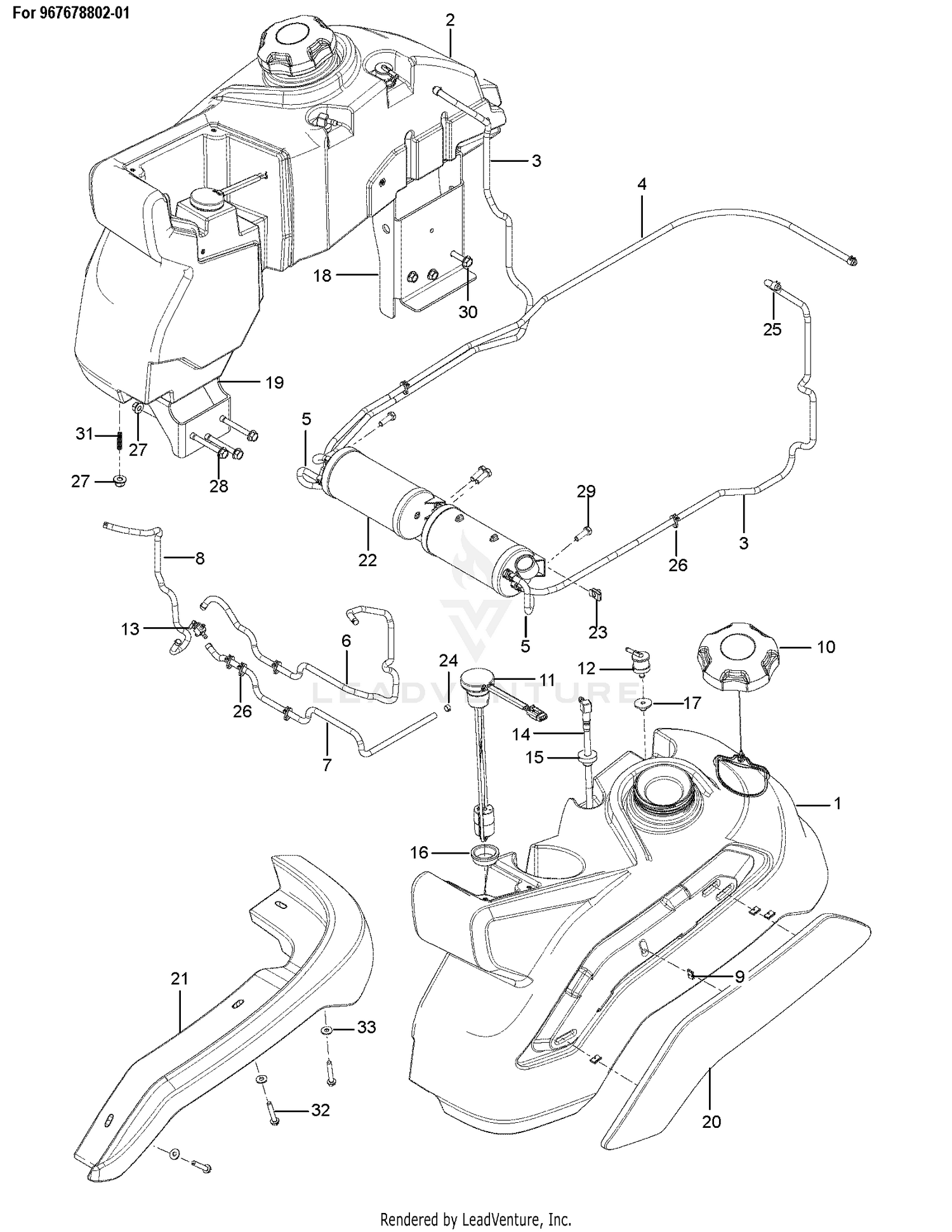

| 1 |
529986505 |
TANK UNIT ASY LH Z500 MUDGUARD This part replaces 582483105. Price: $649.99 |
| 2 |
111-2337 |
BLANK - CARLING SWITCH Price: $2.75 |
| 2 |
529986105 |
FUEL TANK ASSEMBLY RH Z500 This part replaces 582481705. Price: $599.99 |
| 3 |
09394 |
BOLT M10 X 35 Price: $1.40 |
| 4 |
111-7490 |
SWITCH-CUTTERS Price: $34.20 |
| 4 |
587044555 |
HOSE.3/16".VAPOR.LINE.55"LGTH Price: $9.99 |
| 5 |
111-2956 |
CARLING SWITCH - LIFT Price: $28.17 |
| 5 |
587044513 |
HOSE 3/16" VAPOR LINE 13" LENG Price: $2.99 |
| 6 |
111-2451 |
CARLING SWITCH - LIMITED LIFT REVERSE Price: $41.71 |
| 6 |
587044846 |
HOSE.1/4".LOW.PERM.FUEL.LN.46" Price: $9.99 |
| 7 |
111-2254 |
CARLING SWITCH - PARK BRAKE Price: $47.20 |
| 7 |
587044833 |
HOSE.1/4".LOW.PERM.FUEL.LN.33" Price: $7.99 |
| 8 |
111-3004 |
CONTROL POD Price: $220.01 |
| 8 |
587044824 |
HOSE.1/4".LOW.PERM.FUEL.LN.24" Price: $6.99 |
| 9 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 9 |
582482601 |
CLIP.U-TYPE Price: $3.99 |
| 10 |
111-2333 |
ILLUMINATED INDICATOR Price: $25.04 |
| 10 |
575018103 |
CAP 3.5IN SEALED This part replaces 575018101. Price: $27.99 |
| 11 |
111-2334 |
ILLUMINATED INDICATOR Price: $25.04 |
| 11 |
590638801 |
SENSOR.FUEL.LVL.FLOAT.V500 Price: $139.99 |
| 12 |
111-3026 |
INDICATOR-ILLUMINATED Price: $25.04 |
| 12 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 13 |
111-2963-03 |
INSTRUMENT PANEL Price: $69.15 |
| 13 |
539102679 |
FUEL VALVE Price: $49.99 |
| 14 |
111-3079 |
M4 U NUT Price: $1.42 |
| 15 |
09447 |
NUT M10 X 1.5 NYL INS Price: $1.40 |
| 15 |
532003645 |
BUSHING OUTLET T Price: $3.99 |
| 16 |
09430 |
NUT M5 NYL INS T TYPE Price: $1.25 |
| 16 |
590209101 |
GROMMET, FUEL SENSOR Price: $4.99 |
| 17 |
09441 |
NUT M8 NYL INSERT T TYPE Price: $1.39 |
| 17 |
584648201 |
GROMMET.CHECK.FUEL Price: $3.99 |
| 18 |
111-8494-03 |
PLATE-SWITCH Price: Call Us |
| 18 |
582481502 |
BRACKET.FUEL.TANK.REAR.SUP.431 Price: $34.99 |
| 19 |
111-3473 |
SCREW M4 X 16MM BUTTON HEAD Price: $1.42 |
| 19 |
582481602 |
BRACKET.FUEL.TANK.REAR.SUP.431 Price: $19.99 |
| 20 |
111-3381 |
SCREW SOC HD BUTTON M5X16 Price: $1.35 |
| 21 |
582483301 |
GUARD.MUD.LH Price: $64.99 |
| 21 |
ZHS1H020U |
SOC.BUTTON SCW.M8*20 Z&P Price: $1.36 |
| 22 |
585977402 |
CANISTER.FLEX.6.3GAL3/16".TANK Price: $54.99 |
| 22 |
924618 |
SWITCH-HORN, PUSH Price: $37.21 |
| 23 |
74-09-009 |
IGNITION SWITCH Price: $163.43 |
| 24 |
111-7090 |
CABLE-THROTTLE Price: $111.28 |
| 24 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 25 |
09658 |
WASHER M4 X 9 X 0.8 Z/P Price: $1.40 |
| 25 |
575436501 |
CLAMP, HOSE Price: $2.99 |
| 26 |
09475 |
WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40 |
| 26 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
| 27 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 27 |
ZWQ1J000U |
PLAIN HEAVY WASHER M10 Price: $1.38 |
| 28 |
09470 |
WASHER M5 X 10 X 1 ZN & PASS Price: $1.25 |
| 28 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 29 |
111-3344 |
DECAL - IGNITION SWITCH Price: $24.37 |
| 29 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 30 |
111-3658 |
CUTTERHEAD LATCH DECAL Price: $23.54 |
| 30 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 817490516. Price: $2.99 |
| 31 |
111-3277 |
DECAL Price: $26.87 |
| 31 |
582484201 |
SCREW.5/16-18X1.25"THREADED Price: $2.99 |
| 32 |
111-3281 |
NUT BAR Price: $18.16 |
| 32 |
590257301 |
SCREW.1/4-20X1.5IN.HEX.MACH Price: $2.99 |
| 33 |
03469 |
WASHER M8 SC SPRING Price: $1.40 |
| 33 |
596582301 |
Washers This part replaces 532126684. Price: $2.99 |
| 34 |
111-8021 |
SWITCH-LOCK Price: $44.64 |
| 35 |
111-2888 |
SOCKET 12V Price: $24.37 |
| 36 |
111-3539 |
CSK SLOT SCREW M3 X 20 Price: $1.35 |
| 37 |
111-6026 |
BRACKET-SECURING Price: $16.46 |
| 39 |
111-5239-03 |
PLATE-FILLER Price: $11.73 |
| 40 |
09368 |
SCREW Price: $1.40 |
| 41 |
09696 |
SETSCREW Price: $1.40 |
| 42 |
HY09697 |
WASHER M3 PLAIN Price: $1.36 |
| 43 |
HY09698 |
NUT M3 NYLOC Price: $1.36 |
| 582482301 |
GUARD.MUD.RH |
Price: $69.99 582482301 |
